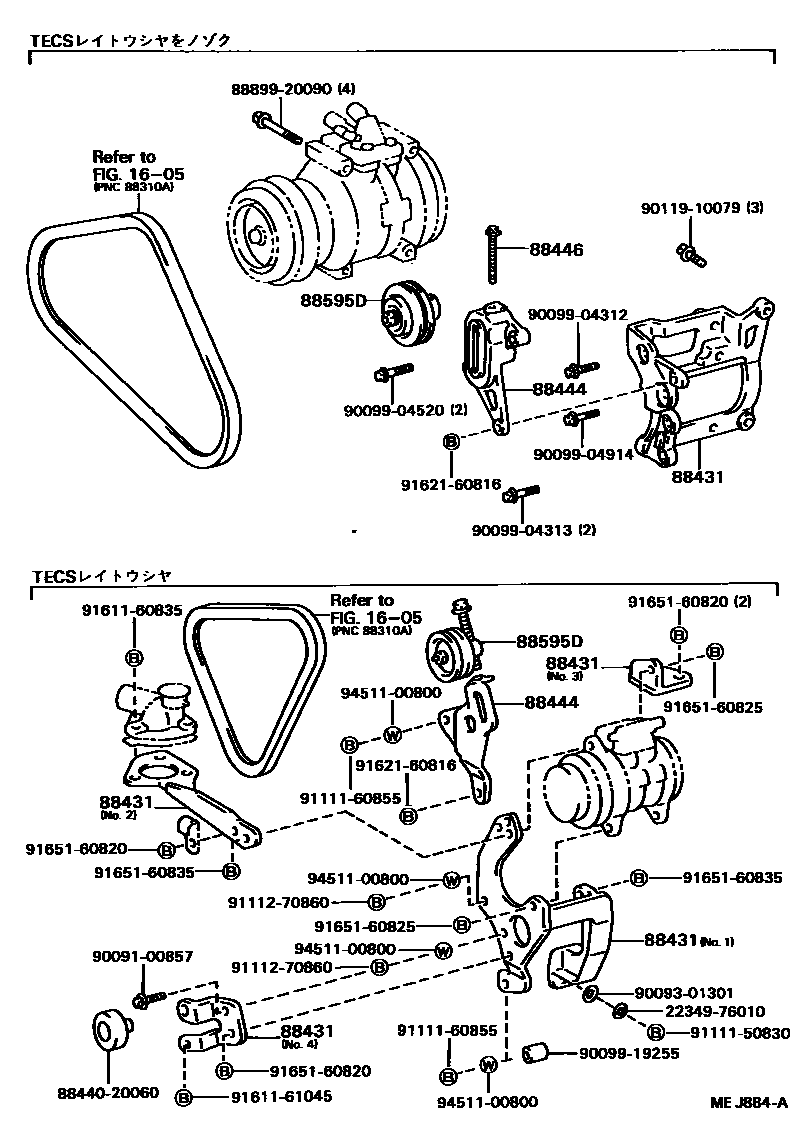

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-36190iBU85..5F..03S;BU62,64,82,9#..5F..(CBU,IV3)198708-198808

main88431-36240iBU62..TR..5F..WT..20T..IV3198708-198808

main88431-36250iBU62..TR..5F..WT..20T..IV3198708-198808

main88431-36260iBU60..WT..20T..IV3198708-198808

main88431-36270iBU60..WT..20T..IV3198708-198808

88444BRACKET, IDLE PULLEY

main88444-36110iBU85..5F..03S;BU62,64,82,9#..5F..(CBU,IV3)198708-198808

main88444-36121iBU62..TR..5F..WT..20T..IV3198708-198808

88446BOLT, IDLE PULLEY

main88446-36010iBU85..5F..03S;BU62,64,82,9#..5F..(CBU,IV3)198708-198808

88595DPULLEY ASSY, IDLE

main88440-12160iBU62..DMP;BU62..275,30T;BU85..5F..03S;BU61,64,81,82,9#;BU62..5F..ST..IV3;BU62..TR..5F..20T..CBU198708-198808

2234976010

main22349-76010

8844020060RELAY ASSY, COOLER (FOR IGNITION SWITCH)

main88440-20060

8889920090COVER, EVAPORATOR

main88899-20090

9009100857

main90091-00857

9009301301

main90093-01301

9009904312

main90099-04312

9009904313

main90099-04313

9009904520

main90099-04520

9009904914

main90099-04914

9009919255

main90099-19255

9011910079

main90119-10079

9111150830

main91111-50830

9111160855

main91111-60855

9111270860

main91112-70860

9161160835

main91611-60835

9161161045

main91611-61045

9162160816

main91621-60816

9165160820

main91651-60820

9165160825

main91651-60825

9165160835

main91651-60835

9451100800

main94511-00800

26 parts on this diagram · 2 diagrams in section
