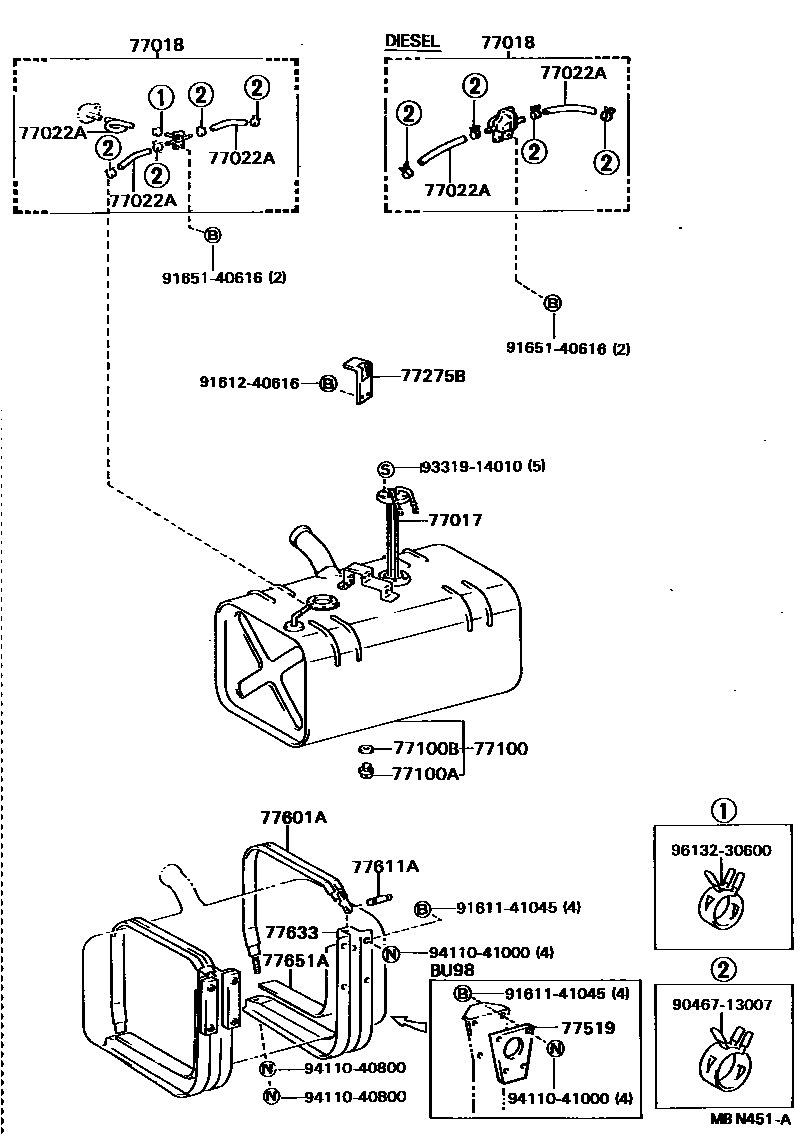

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-36111iBU60,61,62,8#,90..DM2,T1,T2,T4198708-198808

main77017-36130iBU70198708-198808

main77017-36181iBU85..V;BU82,85..06S198708-198808

main77017-36291iBU62..IV4198708-198808

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-25110iBU60,70..HRF,SRF,TW1,TW2,TW4198708-198808

main77018-25110iBU60,70..HRF,SRF,TW1,TW2,TW4198708-198808

main77018-26140iBU70..03S,06S198708-198808

sub77018-37140

main77018-36230iBU85;BU6#,80,81,82,9#..20T,275,30T,35T,IV4198708-198808

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06030iBU70..03S,06S198708-198808

sub95338-06030

main95333-08020iBU60,70..HRF,SRF,TW1,TW2,TW4198708-198808

sub95337-08020

main95333-08030iBU85;BU6#,80,81,82,9#..20T,275,30T,35T,IV4198708-198808

77100TANK ASSY, FUEL

main77001-36482iBU98198708-198808

main77001-3B020iBU60..175198708-198808

main77001-3B030iBU70198708-198808

main77001-3B050iBU70..03S,06S198708-198808

sub77001-37290

main77001-3B060iBU82..06S..IV3198708-198808

main77001-3B070iBU60,61,62..DM2,T1,T2,T4198708-198808

main77001-3B080iBU8#,90..T2,T4198708-198808

main77001-3B090iBU6#..DM1,DM3,DM4,T3198708-198808

main77001-3B100iBU85..V;BU82,85,90,93,95..T3,TW1198708-198808

sub77001-3B101

main77001-3B150iBU62..IV4198708-198808

77100APLUG(FOR FUEL TANK)

main90105-12116iBU6#,70,8#,9#198708-198808

77100BGASKET(FOR FUEL TANK)

main90430-12245iBU6#,70,8#,9#198708-198808

77275BPROTECTOR, FUEL LIQUID VAPOR SEPARATOR VALVE

main77275-36020iBU62,64..DMP198708-198808

77519SPACER, FUEL TANK BRACKET

main77519-36040iBU98198708-198808

FRONT

main77529-36010iBU98198708-198808

REAR

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-25090iBU60,70..HRF,SRF,TW1,TW2,TW4198708-198808

main77601-25090iBU60,70..HRF,SRF,TW1,TW2,TW4198708-198808

main77601-36090iBU82,85..T2,T4;BU60,61,62,80,81,90..(DM2,T1,T2,T4,TW1)..(20T,35T,IV4)198708-198808

main77601-36140iBU85..V;BU62..275,30T;BU60,62..T3..ST;BU61,82,85,90,93,95..T3,TW1198708-198808

sub77601-37030

main77601-36150iBU62..(DM3,T3)..WT..20T;BU60,64,98..(DM1,DM4,T3)..WT198708-198808

sub77601-37040

main77601-36150iBU62..(DM3,T3)..WT..20T;BU60,64,98..(DM1,DM4,T3)..WT198708-198808

sub77601-37040

77611APIN (FOR FUEL TANK BAND)

main77629-36010iBU85;BU6#,80,81,82,9#..20T,275,30T,35T,IV4198708-198808

main77653-25010iBU60,70..HRF,SRF,TW1,TW2,TW4198708-198808

main77653-25010iBU60,70..HRF,SRF,TW1,TW2,TW4198708-198808

77633STAY, FUEL TANK

main77501-25090iBU60,70..HRF,SRF,TW1,TW2,TW4198708-198808

sub77501-25091

main77501-25090iBU60,70..HRF,SRF,TW1,TW2,TW4198708-198808

sub77501-25091

main77501-36022iBU98198708-198808

main77501-36070iBU85,90..T2,T4198708-198808

sub77501-36071

main77501-36080iBU64198708-198808

main77501-36100iBU62..IV4198708-198808

FRONT

main77502-36040iBU62..IV4198708-198808

REAR

main77633-36090iBU85..V;BU62..275,30T;BU60,62..T3..ST;BU61,82,85,90,93,95..T3,TW1198708-198808

sub77633-36091

main77633-36111iBU60,62..(DM3,T3)..WT..20T198708-198808

sub77633-36112

main77633-36111iBU60,62..(DM3,T3)..WT..20T198708-198808

sub77633-36112

main77633-36120iBU60,61,62,80,81,82..DM2,T1,T2,T4198708-198808

sub77633-36121

77651ACUSHION, FUEL TANK, NO.1

main77651-26040iBU60,70..HRF,SRF,TW1,TW2,TW4198708-198808

main77651-26040iBU60,70..HRF,SRF,TW1,TW2,TW4198708-198808

main77651-36100iBU85..V;BU60,61,62,82,85,9#..(DM3,T3,TW1)..(20T,275,30T,35T)198708-198808

main77651-36110iBU82,85..T2,T4;BU61,64,80,81..WT;BU60,62,90..(DM2,T1,T2,T4,TW1)..(20T,35T,IV4)198708-198808

9046713007

main90467-13007

9161141045

main91611-41045

9161240616

main91612-40616

9165140616

main91651-40616

9331914010

main93319-14010

9411040800

main94110-40800

9411041000

main94110-41000

9613230600

main96132-30600

20 parts on this diagram · 7 diagrams in section
