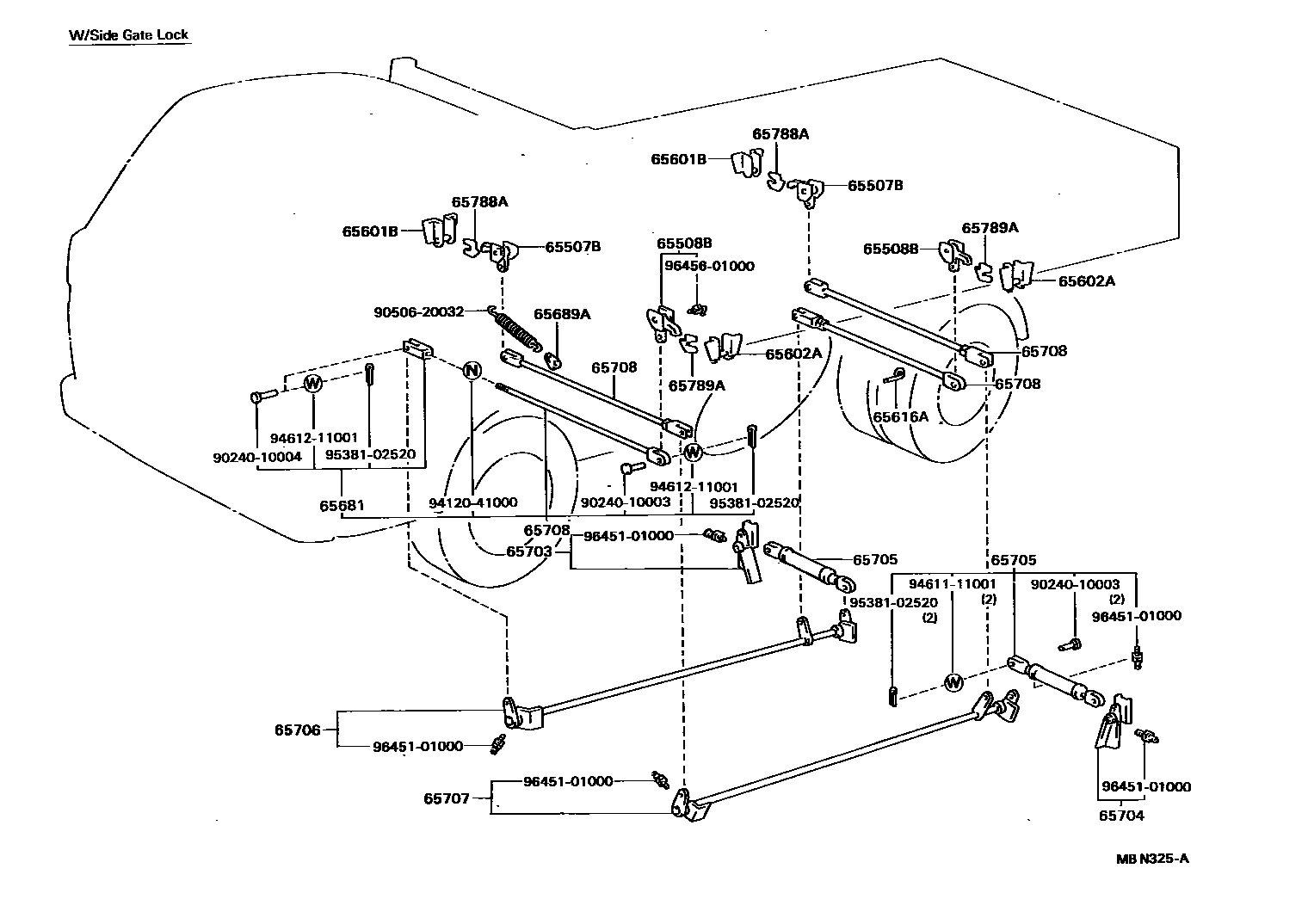

REAR BODY SIDE GATE LOCK & TAIL GATE LOCK

0001 1 0002 1 0003 1

65507BSUPPORT, CORNER, RH

main65507-93300×2iBU62..DM3198708-198808

65508BSUPPORT, CORNER, LH

main65508-93300×2iBU62..DM3198708-198808

65601BSKIRT SUB-ASSY, SIDE PANEL

main65601-93301×2iBU62..DM3198708-198808

65602ASKIRT SUB-ASSY, SIDE

main65602-93301×2iBU62..DM3198708-198808

65616AGUIDE, ROD ASSY SUPPORT

main65616-93300×6iBU62..DM3198708-198808

65681END, TAIL GATE LOCK LINK

main65680-93301×4iBU62..DM3198708-198808

main65681-93103iBU62,64..(DM1,DM2,DM4)..CBU198708-198808

65689ABRACKET

main65689-93200×4iBU62..DM3198708-198808

65703COM LEVER ASSY, SIDE GATE AUTO LOCK MECHANISM, RH

main65703-93301iBU62..DM3198708-198808

65704COM LEVER ASSY, SIDE GATE AUTO LOCK MECHANISM, LH

main65704-93301iBU62..DM3198708-198808

65705LINK SUB-ASSY, SIDE GATE LOCK

main65705-93301×2iBU62..DM3198708-198808

65706SHAFT ASSY, SIDE GATE LINK CONTROL, RH

main65706-93301iBU62..DM3198708-198808

65707SHAFT ASSY, SIDE GATE LINK CONTROL, LH

main65707-93301iBU62..DM3198708-198808

65708ROD ASSY, SIDE GATE ROD CONTROL

main65708-93302×4iBU62..DM3198708-198808

65788ABASE, TAIL GATE LOCK

main65788-93300×2iBU62..DM3198708-198808

65789ABASE, TAIL GATE LOCK

main65789-93300×2iBU62..DM3198708-198808

9024010003

main90240-10003

9024010004

main90240-10004

9050620032

main90506-20032

9412041000

main94120-41000

9461111001

main94611-11001

9461211001

main94612-11001

9538102520

main95381-02520

9645101000

main96451-01000

9645601000

main96456-01000

24 parts on this diagram · 3 diagrams in section
