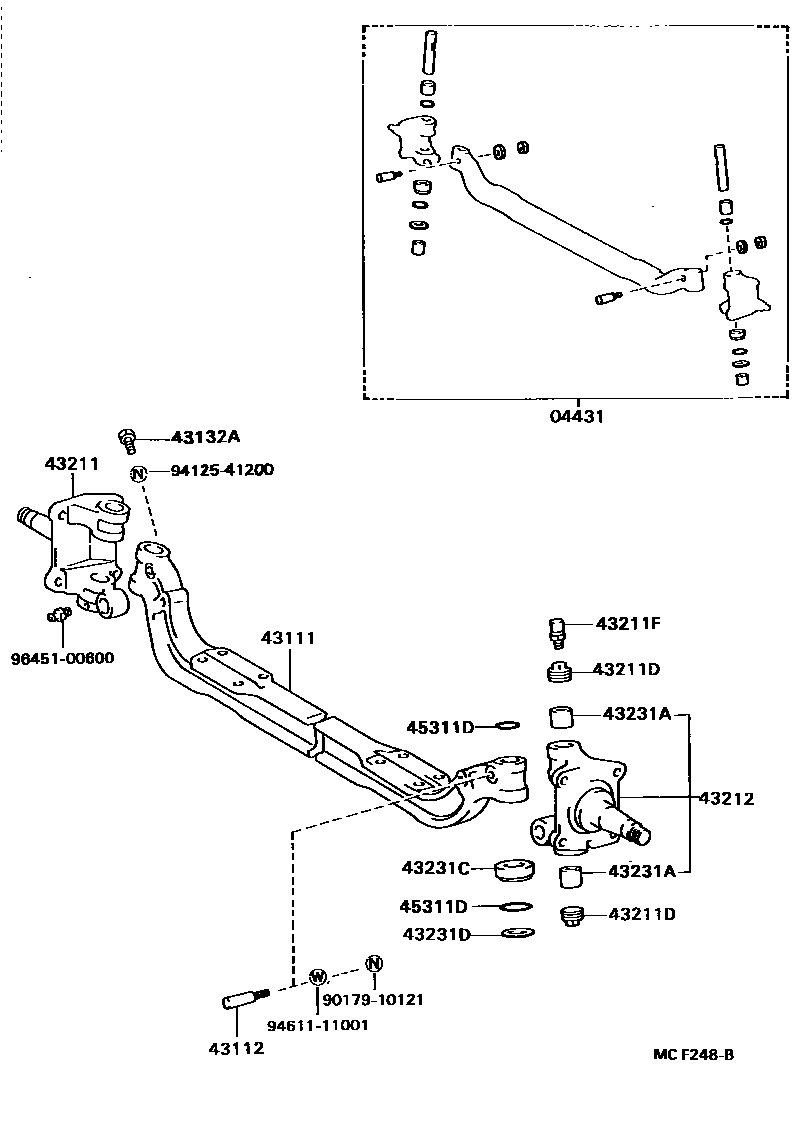

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04431PIN KIT, STEERING KNUCKLE KING

main04431-36040iBU6#,70,8#,93,98198708-198808

sub04431-36041

main04431-36051iBU90,95198708-198808

43111I BEAM, FRONT AXLE

main43111-36090iBU60,62..T3..ST;BU61,64,70..TR,V;BU60,62..(T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3)198708-198808

main43111-36110iBU85,93,98198708-198808

main43111-36120iBU90,95198708-198808

main43111-36140iBU82;BU64,80,81..DM1,DM4,T2,T4;BU60,62..(DM2,DM3,T3,TW1)..WT198708-198808

sub43111-36141

43112PIN, KING PIN LOCK

main43112-36020iBU6#,70,8#,93,98198708-198808

main43112-36030iBU90,95198708-198808

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-12001iBU6#,70,8#,93,98198708-198808

main90106-12003iBU90,95198708-198808

sub90106-12001

43211KNUCKLE, STEERING, RH

main43201-36090iBU6#,70,8#,93,98198708-198808

main43201-36100iBU90,95198708-198808

43211DPLUG (FOR STEERING KNUCKLE)

main90345-33001iBU6#,70,8#,93,98198708-198808

sub90345-33004

main90345-33002iBU6#,70,8#,93,98198708-198808

sub90345-33003

43211FPLUG, BLEEDER (FOR STEERING KNUCKLE)

main90930-03031iBU6#,70,8#,93,98198708-198808

43212KNUCKLE, STEERING, LH

main43202-36080iBU6#,70,8#,93,98198708-198808

main43202-36090iBU90,95198708-198808

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90384-35002iBU90,95198708-198808

sub90384-35013

main90384-35003iBU90,95198708-198808

sub90384-35014

main90999-73086iBU6#,70,8#,93,98198708-198808

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-28001iBU6#,70,8#,93,98198708-198808

main90367-35001iBU90,95198708-198808

43231DSHIM (FOR KING PIN)

main90564-28128iBU6#,70,8#,93,98198708-198808

main90564-28129iBU6#,70,8#,93,98198708-198808

main90564-28130iBU6#,70,8#,93,98198708-198808

main90564-28131iBU6#,70,8#,93,98198708-198808

main90564-28144iBU6#,70,8#,93,98198708-198808

main90564-28145iBU6#,70,8#,93,98198708-198808

main90564-37001iBU90,95198708-198808

main90564-37002iBU90,95198708-198808

main90564-37003iBU90,95198708-198808

main90564-37004iBU90,95198708-198808

main90564-37005iBU90,95198708-198808

main90564-37006iBU90,95198708-198808

main90564-37007iBU90,95198708-198808

main90564-37008iBU90,95198708-198808

45311DRING, O(FOR STEERING KNUCKLE KING PIN)

main90311-35012iBU90,95198708-198808

main96711-19028iBU6#,70,8#,93,98198708-198808

9017910121

main90179-10121

9412541200

main94125-41200

9461111001

main94611-11001

9645100600

main96451-00600

16 parts on this diagram · 2 diagrams in section
