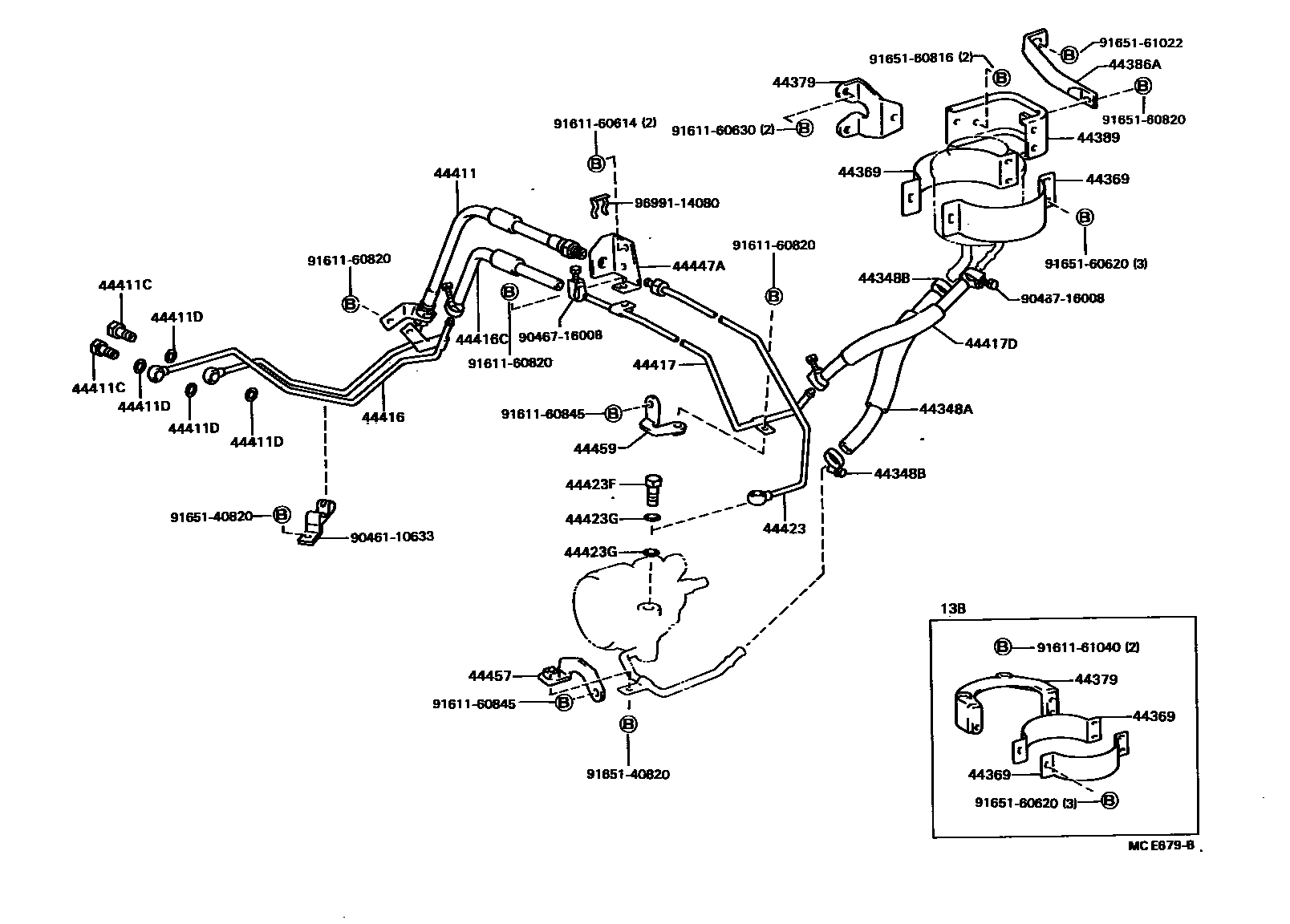

POWER STEERING TUBE

0001 1 0002 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-36090iBU85,9#198708-198807

main44348-36091iBU85,9#198808-198808

main44348-36100iBU60..(T2,T4)..IV3; BU60..T1,TW2,TW4;BU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU70,80..(SRF,T4)..(03S,06S); BU60..T3..WT..IV3198708-198807

main44348-36101iBU60..(T2,T4)..IV3; BU60..T1,TW2,TW4;BU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU70,80..(SRF,T4)..(03S,06S); BU60..T3..WT..IV3198808-198808

main44348-36110iBU61,62,64,81,82198708-198807

main44348-36111iBU61,62,64,81,82198808-198808

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001×2iBU60..(T2,T4)..IV3; BU60..T1,TW2,TW4;BU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU70,80..(SRF,T4)..(03S,06S); BU60..T3..WT..IV3; BU61,62,64,81,82,85,9#198708-198808

main90467-21005×2iBU60..(T2,T4)..IV3; BU60..T1,TW2,TW4;BU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU70,80..(SRF,T4)..(03S,06S); BU60..T3..WT..IV3; BU61,62,64,81,82,85,9#198808-198808

44369BRACKET, OIL RESERVOIR, NO.1

main44369-36010×2iBU61,62,64,81,82198708-198808

main44369-36020×2iBU60,70,80..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S); BU85,9#198708-198808

44379BRACKET, OIL RESERVOIR, NO.2

main44379-36031iBU60,70,80..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S)198708-198808

main44379-36080iBU85,9#198708-198808

main44379-36090iBU61,62,64,81,82198708-198808

44386ASUPPORT, OIL RESERVOIR

main44386-36011iBU60,70,80..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S)198708-198808

44389BRACKET, OIL RESERVOIR, NO.3

main44389-36021iBU60,70,80..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S)198708-198808

44411HOSE, PRESSURE FEED

main44411-36270iBU85,9#198708-198808

main44411-36290iBU60..T3..ST;BU60,70,80..(SRF,T1,T2,T4,TW2,TW4)..(03S,06S); BU62..ST;BU62,82..T2,T4;BU61,64,81..TR198708-198808

main44411-36300iBU62,82..(DM2,DM3,T3,TW1)..WT; BU64..DMP;BU60..T3..WT198708-198808

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-14003×2iBU60..T1,T2,T3,T4,TW2,TW4;BU64,70,80..(DM1,DM4,SRF,T4)..(03S,06S); BU85;BU61,62,64,81,82,9#..DM2,DM3,T2,T3,T4,TW1198708-198808

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-14235×4iBU60..T1,T2,T3,T4,TW2,TW4;BU64,70,80..(DM1,DM4,SRF,T4)..(03S,06S); BU85;BU61,62,64,81,82,9#..DM2,DM3,T2,T3,T4,TW1198708-198808

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-36130iBU62,82..(DM2,DM3,T3,TW1)..WT; BU64..DMP;BU60..T3..WT198708-198808

main44416-36180iBU85,9#198708-198808

main44416-36210iBU60..T3..ST;BU60,70,80..(SRF,T1,T2,T4,TW2,TW4)..(03S,06S); BU62..ST;BU62,82..T2,T4;BU61,64,81..TR198708-198808

44416CHOSE(FOR RETURN TUBE TO RESERVIOR)

main90445-18130iBU85,9#198708-198808

main90445-18133iBU60..T1,T2,T3,T4,TW2,TW4;BU64,70,80..(DM1,DM4,SRF,T4)..(03S,06S); BU61,62,64,81,82..DM2,DM3,T2,T3,T4,TW1198708-198808

44417TUBE, RETURN, NO.2

main44417-36040iBU85..4FC198708-198808

main44417-36060iBU60,70,80..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S); BU61,62,64,81,82198708-198808

main44417-36080iBU85,90..T3..5F..(20T,30T,35T)..IV3; BU85..T2..5F..IV3198708-198808

main44417-36090iBU85,9#..5F198708-198808

main44417-36100iBU60..(T2,T4)..IV3; BU60..T3..WT..IV3; BU61..DYN..T2..IV3; BU61..TOY..WT..IV3;BU61..DYN..T4..IV3;BU82..(T3,T4)..20T..IV3; BU62..(T2,T4)..5F..IV3; BU62..T3..5F..WT..20T; BU62..T4..5F..CBU198708-198808

44417DHOSE(FOR RETURN TUBE TO RESERVOIR)

main90445-18132iBU85,9#..5F198708-198808

main90447-18022iBU60..(T2,T4)..IV3; BU60..T1,TW2,TW4;BU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU70,80..(SRF,T4)..(03S,06S); BU60..T3..WT..IV3198708-198808

main90447-18023iBU61,62,64,81,82198708-198808

main90447-18028iBU85..4FC198708-198808

44423TUBE, OIL PUMP TO GEAR BOX

main44423-36110iBU85,9#198708-198808

main44423-36130iBU60..(T2,T4)..IV3; BU60..T3..WT..IV3; BU61..DYN..T2..IV3; BU61..TOY..WT..IV3;BU61..DYN..T4..IV3;BU82..(T3,T4)..20T..IV3; BU62..(T2,T4)..5F..IV3; BU62..T3..5F..WT..20T; BU62..T4..5F..CBU198708-198808

main44423-36140iBU60,70,80..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S); BU61,62,64,81,82198708-198808

main44423-36160iBU85,90..T3..5F..(20T,30T,35T)..IV3; BU85..T2..5F..IV3198708-198808

44423FBOLT, UNION

main90401-16004iBU60..(T2,T4)..IV3; BU60..T1,TW2,TW4;BU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU70,80..(SRF,T4)..(03S,06S); BU60..T3..WT..IV3; BU61,62,64,81,82,85,9#198708-198808

44423GGASKET, UNION BOLT

main90430-16168×2iBU60..(T2,T4)..IV3; BU60..T1,TW2,TW4;BU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU70,80..(SRF,T4)..(03S,06S); BU60..T3..WT..IV3; BU61,62,64,81,82,85,9#198708-198808

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-36100iBU85,9#198708-198808

main44447-36120iBU60,70,80..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S); BU61,62,64,81,82198708-198808

main44447-36130iBU60..(T2,T4)..IV3; BU60..T3..WT..IV3; BU61..DYN..T2..IV3; BU61..TOY..WT..IV3;BU61..DYN..T4..IV3;BU82..(T3,T4)..20T..IV3; BU62..(T2,T4)..5F..IV3; BU62..T3..5F..WT..20T; BU62..T4..5F..CBU198708-198808

44457BRACKET, TUBE SUPPORT, NO.1

main44457-36060iBU85,9#198708-198808

main44457-36080iBU60..(T2,T4)..IV3; BU60..T1,TW2,TW4;BU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU70,80..(SRF,T4)..(03S,06S); BU60..T3..WT..IV3; BU61,62,64,81,82198708-198808

44459BRACKET, TUBE SUPPORT, NO.3

main44459-36070iBU60..(T2,T4)..IV3; BU60..T1,TW2,TW4;BU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU70,80..(SRF,T4)..(03S,06S); BU60..T3..WT..IV3; BU61,62,64,81,82198708-198808

main44459-36080iBU85,9#198708-198808

9046110633

main90461-10633

9046716008

main90467-16008

9161160614

main91611-60614

9161160630

main91611-60630

9161160820

main91611-60820

9161160845

main91611-60845

9161161040

main91611-61040

9165140820

main91651-40820

9165160620

main91651-60620

9165160816

main91651-60816

9165160820

main91651-60820

9165161022

main91651-61022

9699114080

main96991-14080

32 parts on this diagram · 2 diagrams in section
