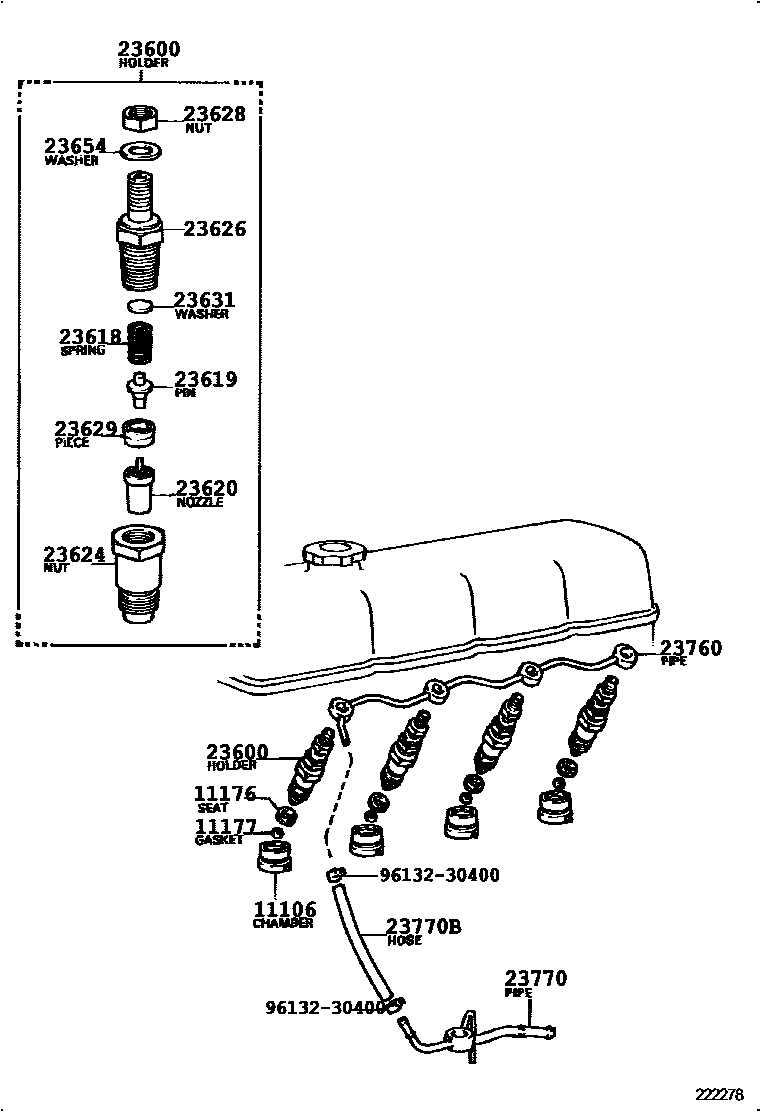

INJECTION NOZZLE

0001 1 0002 1

11106CHAMBER SUB-ASSY, COMBUSTION

main11106-56030iB..BU60,70,80198708-198808

sub11106-56032

11176SEAT, INJECTION NOZZLE

main11176-56010iB..BU60,70,80198708-198808

main11176-56020i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

11177GASKET, INJECTION NOZZLE SEAT

main11177-56010iB..BU60,70,80198708-198808

main90430-17003i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

23600HOLDER & NOZZLE SET, NOZZLE

main23600-56020iB..BU60,70,80198708-198808

main23600-56030i11B..BU61,81198708-198808

main23600-58010i13B..BU62,64,82,85,93,98198708-198808

main23600-58020i13BT..BU85,90,95198708-198808

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-56010iB..BU60,70,80198708-198808

main23618-58010i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

23619PIN, NOZZLE HOLDER PRESSURE

main23619-46010iB..BU60,70,80198708-198808

main23619-58010i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

23620NOZZLE ASSY

main23620-56010i11B..BU61,81198708-198808

main23620-56020iB..BU60,70,80198708-198808

main23620-58010i13B..BU62,64,82,85,93,98198708-198808

main23620-58020i13BT..BU85,90,95198708-198808

23624NUT, NOZZLE RETAINING

main23624-54020iB..BU60,70,80198708-198808

sub23624-58080

main23624-58010i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

23626BODY SUB-ASSY, NOZZLE

main23626-56020iB..BU60,70,80198708-198808

23628NUT(FOR RING PACKING SETTING)

main23628-46010iB..BU60,70,80198708-198808

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-46010iB..BU60,70,80198708-198808

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-46010iB..BU60,70,80198708-198808

main23631-58010i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23631-58011i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23631-58012i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23631-58013i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23631-58014i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23631-58015i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23631-58016i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23631-58017i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23631-58018i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23631-58019i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23632-46010iB..BU60,70,80198708-198808

main23632-58010i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23632-58011i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23632-58012i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23632-58013i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23632-58014i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23632-58015i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23632-58016i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23632-58017i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23632-58018i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23632-58019i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23633-46010iB..BU60,70,80198708-198808

main23633-58010i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23633-58011i11B,13BT..BU61,81,85,90,95198708-198808

main23633-58012i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23633-58013i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23633-58014i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23633-58015i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23633-58016i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23633-58017i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23633-58018i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23633-58019i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23634-46010iB..BU60,70,80198708-198808

main23634-58010i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23634-58011i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23634-58012i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23634-58013i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main23635-46010iB..BU60,70,80198708-198808

main23636-46010iB..BU60,70,80198708-198808

main23637-46010iB..BU60,70,80198708-198808

main23638-46010iB..BU60,70,80198708-198808

main23639-46010iB..BU60,70,80198708-198808

main23641-46010iB..BU60,70,80198708-198808

main23642-46010iB..BU60,70,80198708-198808

main23643-46010iB..BU60,70,80198708-198808

main23644-46010iB..BU60,70,80198708-198808

main23645-46010iB..BU60,70,80198708-198808

main23646-46010iB..BU60,70,80198708-198808

main23647-46010iB..BU60,70,80198708-198808

main23648-46010iB..BU60,70,80198708-198808

main23649-46010iB..BU60,70,80198708-198808

main23651-46010iB..BU60,70,80198708-198808

main23652-46010iB..BU60,70,80198708-198808

23654WASHER(FOR RING PACKING)

main23654-46010iB..BU60,70,80198708-198808

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-56040iB..BU60,70,80198708-198808

main23760-56050i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-56060iB..BU60,70,80198708-198808

main23770-56070i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

23770BHOSE, FUEL

main95333-04020iB..BU60,70,80198708-198808

9613230400

main96132-30400

17 parts on this diagram · 2 diagrams in section
