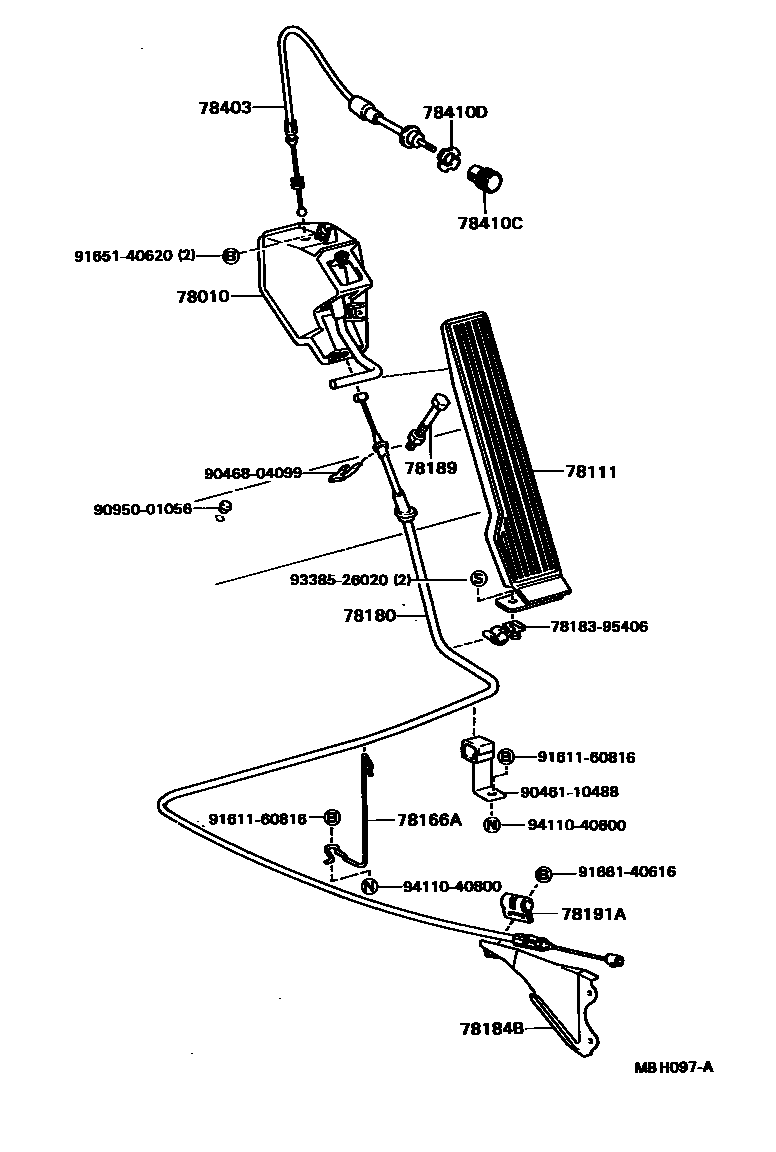

ACCELERATOR LINK

0001 1 0002 1

78010LINK, ACCELERATOR

main78202-95400iBU6#,70,80,81,82198409-198708

main78202-95402iBU77,85,9#198409-198708

78111PEDAL, ACCELERATOR

main78110-95410iBU6#,7#,8#,9#198409-198708

78166ASPRING, CLAMP, NO.1

main78169-95407iBU60,70,80198409-198708

main78169-95408iBU61,62,64,81,82198409-198708

78180WIRE ASSY, ACCELERATOR

main78150-95459iBU60,70,80198409-198708

main78150-95462iBU61,62,64,81,82198409-198502

main78150-95467iBU77,85,93,98..DSL198409-198708

main78150-95472iBU85,90,95..TD198409-198708

main78150-95475iBU61,62,81..T4198502-198708

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-90B02iBU60,70,80198409-198708

main78184-95405iBU85,90,95..TD198409-198708

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-95400iBU6#,7#,8#,9#198409-198708

78191ACLAMP (FOR ACCELERATOR WIRE SET)

main90461-10434iBU60,70,80; BU85,90,95..TD198409-198708

78403CABLE SUB-ASSY, THROTTLE CONTROL

main78404-95011iBU6#,7#,8#,9#198508-198708

main78404-95400iBU6#,70,8#,9#198409-198508

78410CKNOB, THROTTLE CABLE

main78411-22010iBU6#,7#,8#,9#198409-198708

78410DNUT, THROTTLE

main78314-95010iBU6#,7#,8#,9#198508-198708

main78413-95J00iBU6#,70,8#,9#198409-198508

7818395406BRACKET, ACCELERATOR LINK ROD

main78183-95406

9046110488

main90461-10488

9046804099

main90468-04099

9095001056

main90950-01056

9161160816

main91611-60816

9165140620

main91651-40620

9166140616

main91661-40616

9338526020

main93385-26020

9411040800

main94110-40800

19 parts on this diagram · 2 diagrams in section
