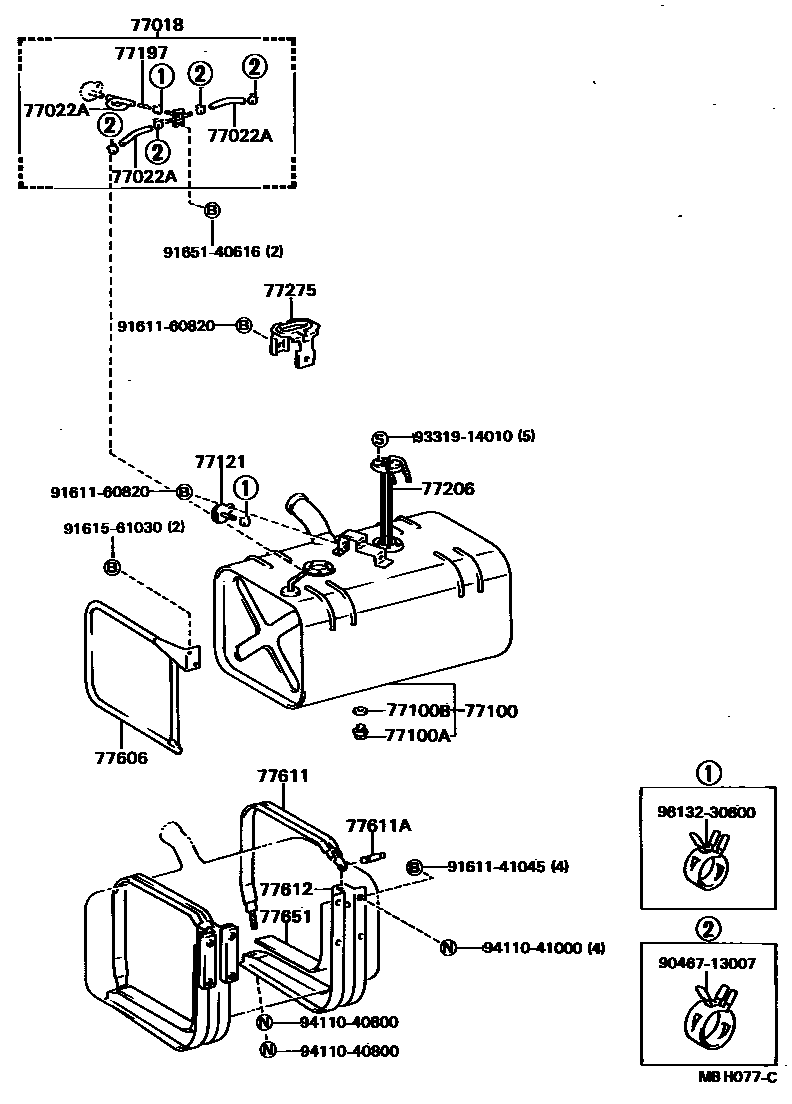

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-36061iBU60,70..HRF,SRF,TW1,TW2,TW4198409-198708

*TCA=60L

main77018-36071iBU60,61,62,80,81,85..DM2,T1,T2,T4198409-198708

*TCA=75L

main77018-36071iBU98198510-198708

main77018-36130iBU85..06S198409-198708

W/SUB TANK

main77018-36130iBU64,77,82,90,93,95198409-198708

*TCA=90L

main77018-36130iBU64,77,82,90,93,95198409-198708

*TCA=70L,90L

main77018-36150iBU62..IV4198410-198708

main77018-36180iBU70..03S,06S198412-198708

5 DOOR VAN

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06010iBU70..03S,06S198412-198708

sub95333-06010

main95332-06040iBU82..06S..ATP198409-198708

sub95333-06040

main95332-06040iBU62..IV4198410-198708

sub95333-06040

main95332-08020iBU62..BTP,CTP;BU60,70..HRF,SRF,TW1,TW2,TW4198409-198708

sub95333-08020

main95332-08020iBU62..IV4198410-198708

sub95333-08020

main95332-08030iBU70..03S,06S198412-198708

sub95333-08030

main95332-08030iBU60,61,62,80,81,85..DM2,T1,T2,T4198409-198708

sub95333-08030

77100TANK ASSY, FUEL

main77001-36481iBU98198510-198708

sub77001-36720

main77001-36670iBU60,61,62..DM2,T1,T2,T4198409-198708

*TCA=75L

main77001-36680iBU82..06S..ATP198409-198708

*TCA=60L

main77001-36710iBU85..ETP;BU77,82,85,90,93,95..T3,TW1198409-198708

*TCA=90L

sub77001-36830

main77001-36720iBU82,85,90,93,95..T3198409-198708

SUB TANK,*TCA=70L

sub77001-36880

main77001-36730iBU62..BTP,CTP,DTP;BU6#..DM1,DM3,DM4,T1,T3198409-198708

*TCA=70L

main77001-36740iBU80,81,85..T2,T4198409-198708

main77001-36750iBU62..IV4198410-198708

main77001-36780iBU70..03S,06S198412-198708

5 DOOR VAN

77100APLUG(FOR FUEL TANK)

main90105-12018iBU6#,7#,8#,90,93,95..CBU,IV3198409-198708

77100BGASKET(FOR FUEL TANK)

main90430-12245iBU6#,7#,8#,90,93,95..CBU,IV3198409-198708

77121PROTECTOR, FUEL TUBE

main77243-36010iBU6#,7#,8#,9#198409-198708

W/SUB TANK

77197ORIFICE, FUEL VAPOR

main90977-02001iBU62..IV4198409-198708

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-36111iBU60,80..T1,T2,T4198409-198708

*TCA=75L

main77017-36121iBU61,62,81,85..DM2,T2,T4198409-198708

main77017-36130iBU60,70..HRF,SRF,TW1,TW2,TW4198409-198708

*TCA=60L

main77017-36150iBU62..IV4;BU62..BTP,CTP198409-198708

main77017-36150iBU82..06S..ATP198412-198708

*TCA=60L

main77017-36181iBU60..T1,T3198409-198708

*TCA=70L

main77017-36191iBU62,85..BTP,CTP,DTP,ETP;BU61,62,64,77,82,85,9#..(DM1,DM3,DM4,T3,TW1)..(CBU,IV3)198409-198708

*TCA=70L,90L

77275PROTECTOR, FUEL EVAPORATIVE SEPARATOR

main77197-36010iBU62,64..DMP198409-198708

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-93100iBU64..DM4198409-198708

77611BAND, FUEL TANK

main77601-25090iBU82..06S..ATP198409-198708

*TCA=60L

main77601-36090iBU60,61,62,80,81,85..DM2,T1,T2,T4198409-198708

main77601-36140iBU62,85..DTP,ETP;BU61,62,77,85,95..T3198409-198708

W/SUB TANK

sub77601-37030

main77601-36150iBU60..T3..WT198409-198708

W/LONG STAY

sub77601-37040

main77601-36150iBU98198510-198708

sub77601-37040

77611APIN (FOR FUEL TANK BAND)

main77629-25010iBU60,62,70..HRF,SRF,TW1,TW2,TW4198409-198708

*TCA=60L

main77629-36010iBU82,85,90,93,95..T3198409-198708

W/SUB TANK

77612BRACKET SUB-ASSY, FUEL TANK

main77501-28011iBU62..BTP,CTP198409-198708

*TCA=60L

sub77501-25091

main77501-36022iBU98198510-198708

main77501-36060iBU62..IV4198410-198708

FR

main77501-36070iBU85..T2198409-198708

sub77501-36071

main77501-36080iBU85,90,93,95..T3..ATP198409-198708

W/LONG STAY

main77502-36030iBU62..IV4198410-198708

RR

main77633-36090iBU85..06S198409-198708

W/SUB TANK

sub77633-36091

main77633-36111iBU62..BTP,CTP;BU62,64..(DM1,DM3,DM4,T3)..WT..20T198409-198708

W/LONG STAY

sub77633-36112

main77633-36120iBU60,61,62,80,81..DM2,T1,T2,T4198409-198708

sub77633-36121

77651PACKING, FUEL TANK BRACKET

main77651-26040iBU60,62,70..HRF,SRF,TW1,TW2,TW4198409-198708

*TCA=60L

main77651-36100iBU62,85..BTP,CTP,DTP,ETP;BU60,61,62,77,85..DM3,T1,T3198409-198708

W/SUB TANK

main77651-36110iBU60,61,62,80,81,85..DM2,T1,T2,T4198409-198708

9046713007

main90467-13007

9161141045

main91611-41045

9161160820

main91611-60820

9161561030

main91615-61030

9165140616

main91651-40616

9331914010

main93319-14010

9411040800

main94110-40800

9411041000

main94110-41000

9613230600

main96132-30600

23 parts on this diagram · 8 diagrams in section
