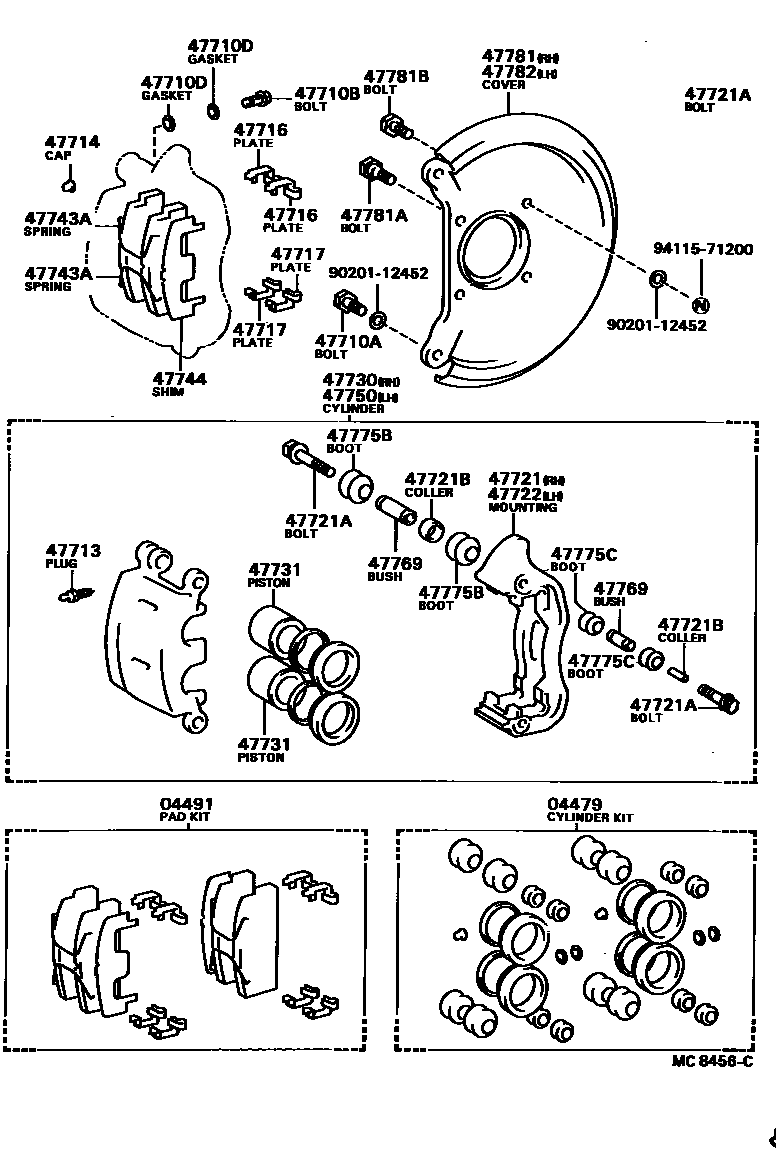

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-25010iBU60,61,62,80,81..T4,TW4198608-198708

main04479-36010iBU64,77,82,85..T3..20T198409-198708

04491PAD KIT, DISC BRAKE, FRONT

main04491-25020iBU60,61,62,80,81..T4,TW4198608-198708

sub04491-25030

main04491-36010iBU64,77,82,85..T3..20T198409-198708

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12070×4iBU64,77,82,85..T3..20T198409-198708

main90109-12027×6iBU60,61,62,80,81..T4,TW4198608-198708

47710BBOLT, UNION(FOR FRONT DISC BRAKE CALIPER)

main90401-10015×2iBU64,77,82,85..T3..20T198409-198708

47710DGASKET(FOR FRONT DISC BRAKE CALIPER UNION)

main90430-10035×4iBU64,77,82,85..T3..20T198409-198708

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iBU64,77,82,85..T3..20T198409-198708

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iBU64,77,82,85..T3..20T198409-198708

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-25010×4iBU60,61,62,80,81..T4,TW4198608-198708

sub47716-25011

main47716-36010×2iBU64,77,82,85..T3..20T198409-198708

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-25010×4iBU60,61,62,80,81..T4,TW4198608-198708

sub47717-25011

main47717-36010×4iBU64,77,82,85..T3..20T198409-198708

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-25020iBU60,61,62,80,81..T4,TW4198608-198708

main47721-36020iBU64,77,82,85..T3..20T198409-198708

sub47721-36021

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10451×2iBU60,61,62,80,81..T4,TW4198608-198708

main90119-10452×2iBU60,61,62,80,81..T4,TW4198608-198708

sub90119-10249

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004×2iBU60,61,62,80,81..T4,TW4198608-198708

L=6

main90387-16005×2iBU60,61,62,80,81..T4,TW4198608-198708

L=36

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-25020iBU60,61,62,80,81..T4,TW4198608-198708

main47722-36020iBU64,77,82,85..T3..20T198409-198708

sub47722-36021

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-25020iBU60,61,62,80,81..T4,TW4198608-198708

main47730-36021iBU64,77,82,85..T3..20T198409-198611

main47730-36022iBU64,77,82,85..T3..20T198611-198708

sub47730-36023

47731PISTON, FRONT DISC BRAKE

main47731-25010×2iBU60,61,62,80,81..T4,TW4198608-198708

main47731-36010×4iBU64,77,82,85..T3..20T198409-198708

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36010×4iBU64,77,82,85..T3..20T198409-198708

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-25020×2iBU60,61,62,80,81..T4,TW4198608-198708

main47744-36011iBU64,77,82,85..T3..20T198409-198708

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-25020iBU60,61,62,80,81..T4,TW4198608-198708

main47750-36021iBU64,77,82,85..T3..20T198409-198611

main47750-36022iBU64,77,82,85..T3..20T198611-198708

sub47750-36023

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36010×4iBU64,77,82,85..T3..20T198409-198708

INNER

main47769-36020×4iBU64,77,82,85..T3..20T198409-198708

OUTER

main47769-40010×2iBU60,61,62,80,81..T4,TW4198608-198708

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-40010×8iBU60,61,62,80,81..T4,TW4198608-198708

47775BBOOT, BUSH DUST, NO.1

main47775-36030×8iBU64,77,82,85..T3..20T198409-198708

47775CBOOT, BUSH DUST, NO.2

main47775-36010×8iBU64,77,82,85..T3..20T198409-198708

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-25020iBU60,61,62,80,81..T4,TW4198608-198708

main47703-36020iBU64,77,82,85..T3..20T198409-198708

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-12080×4iBU64,77,82,85..T3..20T198409-198708

47781BBOLT(FOR DUST COVER SETTING)

main90101-12089×4iBU64,77,82,85..T3..20T198409-198708

main90101-12155×2iBU60,61,62,80,81..T4,TW4198608-198708

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-25020iBU60,61,62,80,81..T4,TW4198608-198708

main47704-36020iBU64,77,82,85..T3..20T198409-198708

9020112452

main90201-12452

9411571200

main94115-71200

28 parts on this diagram · 3 diagrams in section
