TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

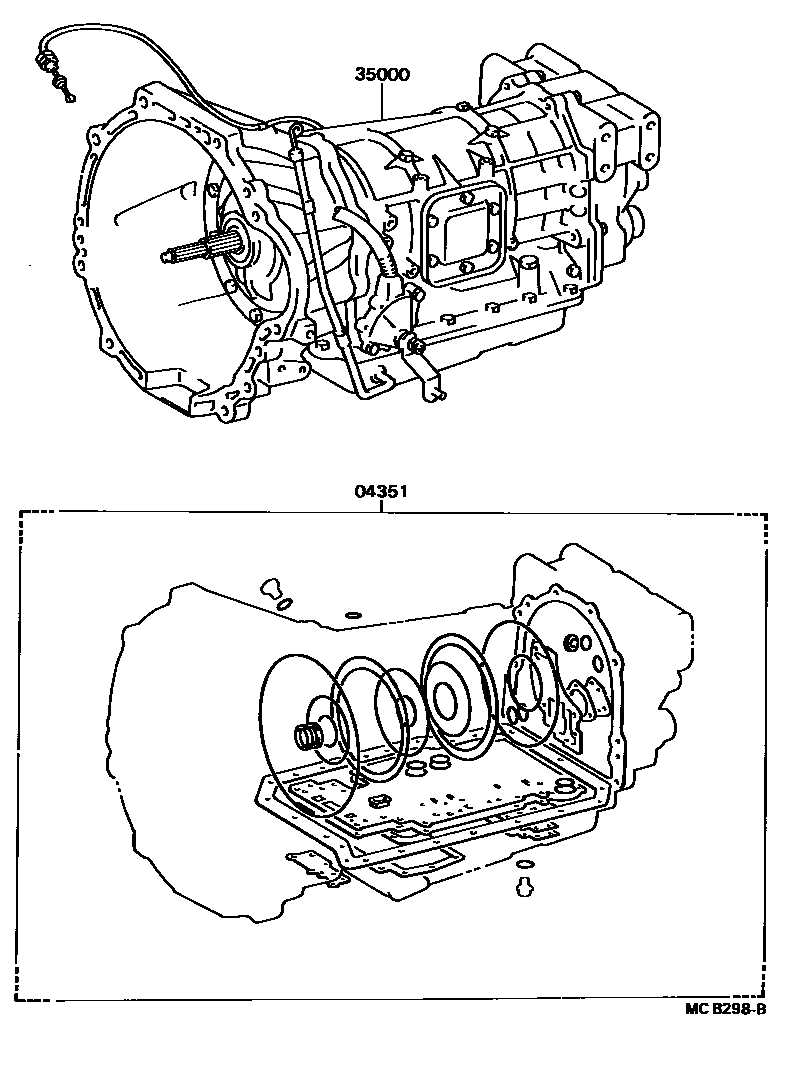

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-36010i198409-198708

35000TRANSMISSION ASSY, AUTOMATIC

main35000-36020i198409-198412

main35000-36021i198412-198509

main35000-36022i198509-198703

main35000-36023i198703-198708

main35000-36030i198409-198412

main35000-36031i198412-198509

main35000-36032i198509-198509

main35000-36033i198509-198703

main35000-36034i198703-198708

main35000-36040i198409-198412

*AXC=L404

main35000-36041i198412-198509

*AXC=L404

main35000-36042i198509-198703

*AXC=L404

main35000-36043i198703-198708

*AXC=L404

main35000-36050i198409-198412

*AXC=L154

main35000-36051i198412-198509

*AXC=L154

main35000-36052i198509-198703

*AXC=L154

main35000-36053i198703-198708

*AXC=L154

main35000-36111i198508-198703

*AXC=L234

main35000-36112i198703-198708

*AXC=L234

main35000-36121i198508-198703

*AXC=L234,W/PTO

main35000-36122i198703-198708

*AXC=L234,W/PTO

2 parts on this diagram · 1 diagram in section
