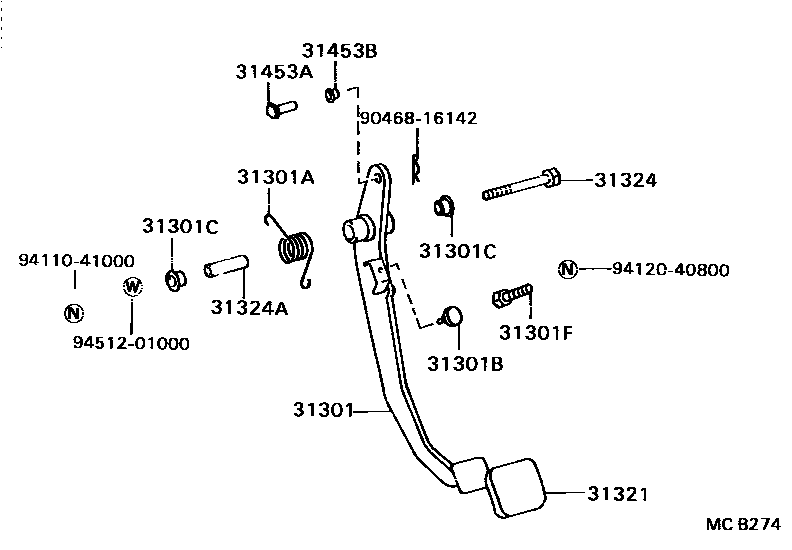

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-36110iBU77,85,9#..5F198409-198708

W/CLUTCH BOOSTER

main31301-36120iBU77,85,93,98..5F..DSL198409-198708

main31301-36150iBU6#,70,80,81,82..5F198409-198708

main31301-36160iBU60..T2,T4; BU60..T3..ST; BU61,64,80,81,82; BU62..5F198409-198708

W/CLUTCH BOOSTER

31301ASPRING(FOR CLUTCH PEDAL)

main90508-35004iBU6#,7#,8#,9#..5F198409-198708

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iBU6#,7#,8#,9#..5F198409-198708

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iBU6#,7#,8#,9#..5F198409-198708

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iBU62,85..4FC;BU60,61,70,80,81198409-198508

31321PAD, CLUTCH PEDAL

main31321-36010iBU6#,7#,8#,9#..5F198409-198708

31324SHAFT, CLUTCH PEDAL

main91121-51070iBU6#,7#,8#,9#..5F198409-198708

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iBU6#,7#,8#,9#..5F198409-198708

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iBU6#,7#,8#,9#..5F198409-198708

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iBU6#,7#,8#,9#..5F198409-198708

9046816142

main90468-16142

9411041000

main94110-41000

9412040800

main94120-40800

9451201000

main94512-01000

14 parts on this diagram · 2 diagrams in section
