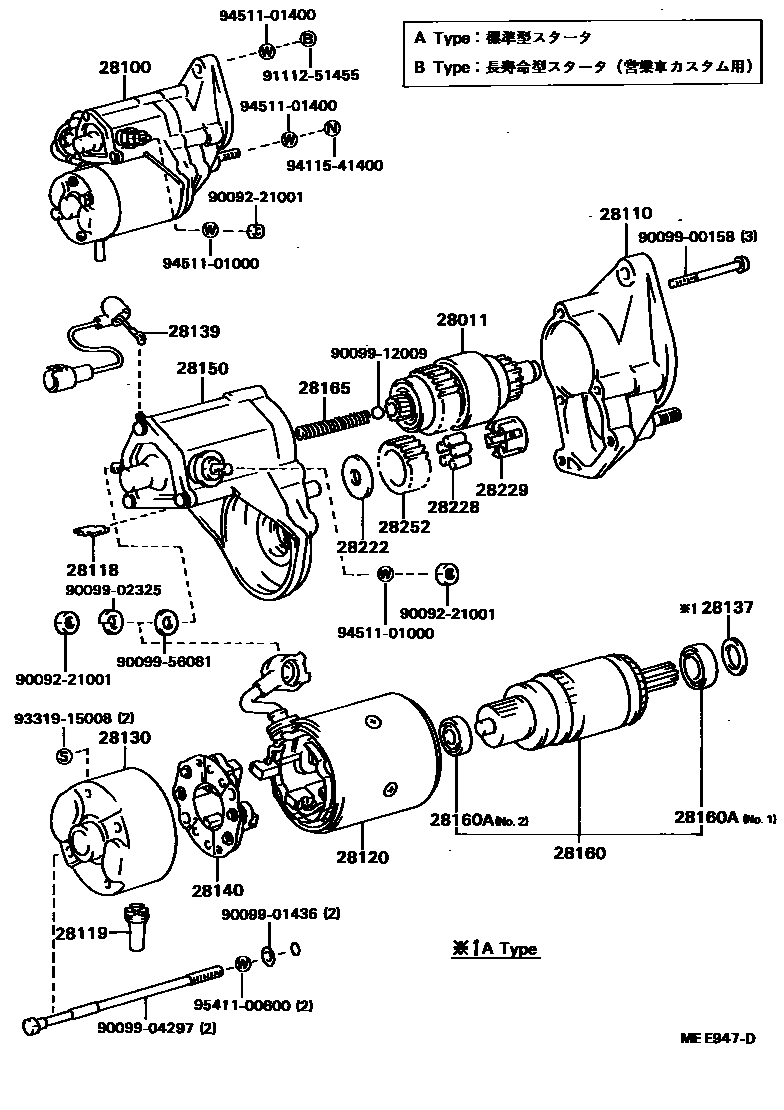

STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-54010iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW

28100STARTER ASSY

main28100-56150iB,13B#..BU6#,70,8#,9#198409-198409

24V 4.5KW,A TYPE

main28100-56151iB,11B,13B#..BU6#,7#,8#,9#198409-198708

main28100-56170i13B..BU62,82..T3,T4; 13B..BU85..20T;13B..BU85..ETP; B..BU60,80..T2,T4; B..BU60..T3..ST198409-198409

24V 4.5KW,B TYPE

main28100-56171i13B..BU85..20T;13B..BU85..ETP198409-198508

28110HOUSING ASSY, STARTER DRIVE

main28110-56150iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW

28118PLATE(FOR STARTER YOKE)

main28118-77090iB,11B,13B#..BU6#,70,8#,9#198409-198708

24V 4.5KW

28119COVER, STARTER END FRAME

main28119-77090iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW

28120YOKE ASSY, STARTER

main28120-56071iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW

main28120-77090iB,13B#..BU6#,70,8#,9#198409-198409

24V 4.5KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-56080iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW

28137WASHER, FELT, STARTER

main90099-02205iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW,A TYPE

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-56150iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW

28140HOLDER ASSY, STARTER BRUSH

main28140-77090iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW

28150SWITCH ASSY, MAGNET STARTER

main28150-56150iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW,A TYPE

main28150-56170i13B..BU62,82..T3,T4; B,11B..BU60,61,80,81..T2,T4; B..BU60..T3..ST198409-198708

24V 4.5KW,B TYPE

28160ARMATURE ASSY, STARTER

main28160-56140i13B..BU85..20T;13B..BU85..ETP198409-198508

24V 4.5KW,B TYPE

main28160-77090iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW,A TYPE

28160ABEARING, STARTER ARMATURE

main90099-10107iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW,A TYPE,NO.2

main90099-10119iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW,A TYPE,NO.1

main90099-10131i13B..BU62,82..T3,T4; B,11B..BU60,61,80,81..T2,T4; B..BU60..T3..ST198409-198708

24V 4.5KW,B TYPE,NO.2

main90099-54120i13B..BU62,82..T3,T4; B,11B..BU60,61,80,81..T2,T4; B..BU60..T3..ST198409-198708

24V 4.5KW,B TYPE,NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-77090iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW

28222WASHER, STARTER IDLE GEAR CLUTCH

main28222-77090iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-56080×5iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW

28229RETAINER, STARTER IDLE GEAR

main28229-56080iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW

28252GEAR, STARTER IDLE

main28254-77090iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 4.5KW

9009221001

main90092-21001

9009900158

main90099-00158

9009901436

main90099-01436

9009902325

main90099-02325

9009904297

main90099-04297

9009912009

main90099-12009

9009956081

main90099-56081

9111251455

main91112-51455

9331915008

main93319-15008

9411541400

main94115-41400

9451101000

main94511-01000

9451101400

main94511-01400

9541100600

main95411-00600

31 parts on this diagram · 1 diagram in section
