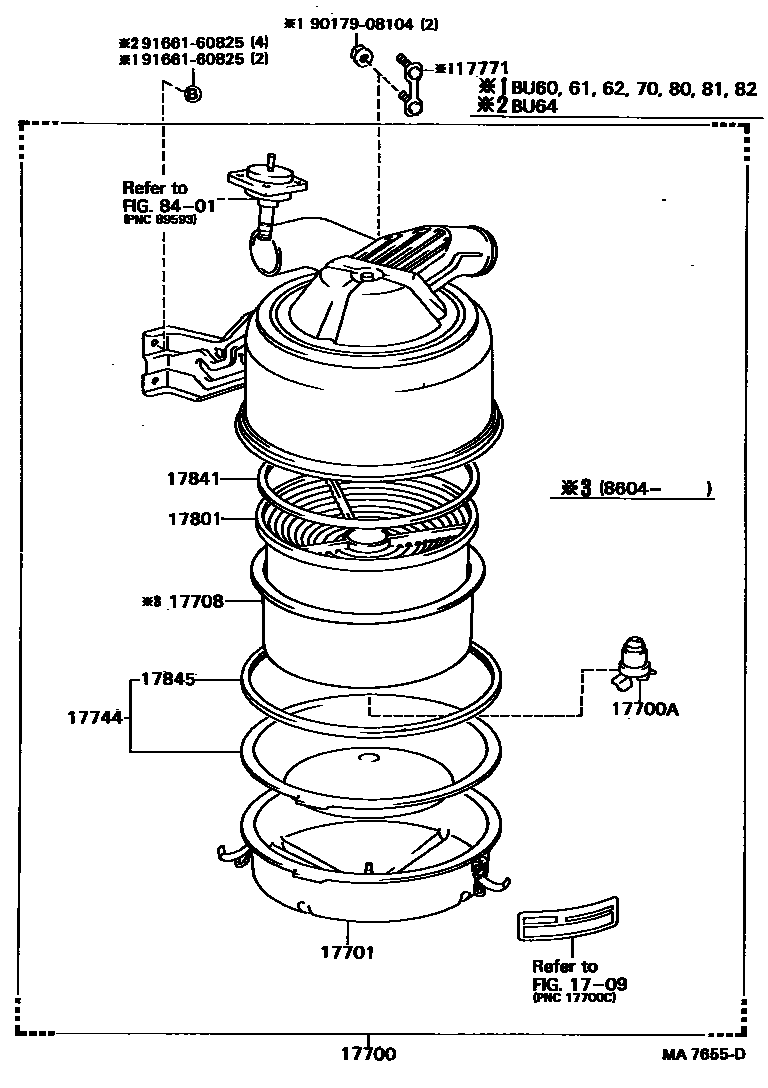

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1709

17700CLEANER ASSY, AIR

main17700-56330iB,11B,13B..BU6#,70,80,81,82198409-198604

sub17700-56331

main17700-56331iB,11B,13B..BU6#,70,80,81,82198604-198708

main17700-58110i13B#..BU77,85,9#..03S198409-198708

main17700-58130i13B..BU85..06S198409-198708

17700ANUT, WING(FOR AIR CLEANER)

main90099-05187iB,11B,13B..BU6#,70,80,81,82198409-198604

main90175-06003iB,11B,13B..BU6#,70,80,81,82198604-198708

main90175-08008i13B#..BU77,85,9#198409-198708

17701CASE SUB-ASSY, AIR CLEANER

main17701-56130iB,11B,13B..BU6#,70,80,81,82198409-198708

main17701-58040i13B#..BU77,85,9#198409-198708

17708BAFFLE SUB-ASSY, AIR CLEANER

main17708-56010iB,11B,13B..BU6#,70,80,81,82198604-198708

17744CUP, PRECLEANER

main17744-56010iB,11B,13B..BU6#,70,80,81,82198409-198708

17771BRACKET, AIR CLEANER INLET DUCT

main17771-56020iB,11B,13B..BU60,61,62,70,80,81,82198409-198708

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-56030iB,11B,13B..BU6#,70,80,81,82198409-198604

sub17801-56031

main17801-56031iB,11B,13B..BU6#,70,80,81,82198604-198708

main17801-68020i13B#..BU77,85,9#198409-198708

17841GASKET, FILTER ELEMENT

main17841-56030iB,11B,13B..BU6#,70,80,81,82198409-198604

main17841-56031iB,11B,13B..BU6#,70,80,81,82198604-198708

main17841-68010i13B#..BU77,85,9#198409-198708

17845GASKET, AIR CLEANER CAP

main17845-56050iB,11B,13B..BU6#,70,80,81,82198409-198708

main17845-68020i13B#..BU77,85,9#198409-198708

sub17845-17010

8401

9017908104

main90179-08104

9166160825

main91661-60825

13 parts on this diagram · 6 diagrams in section
