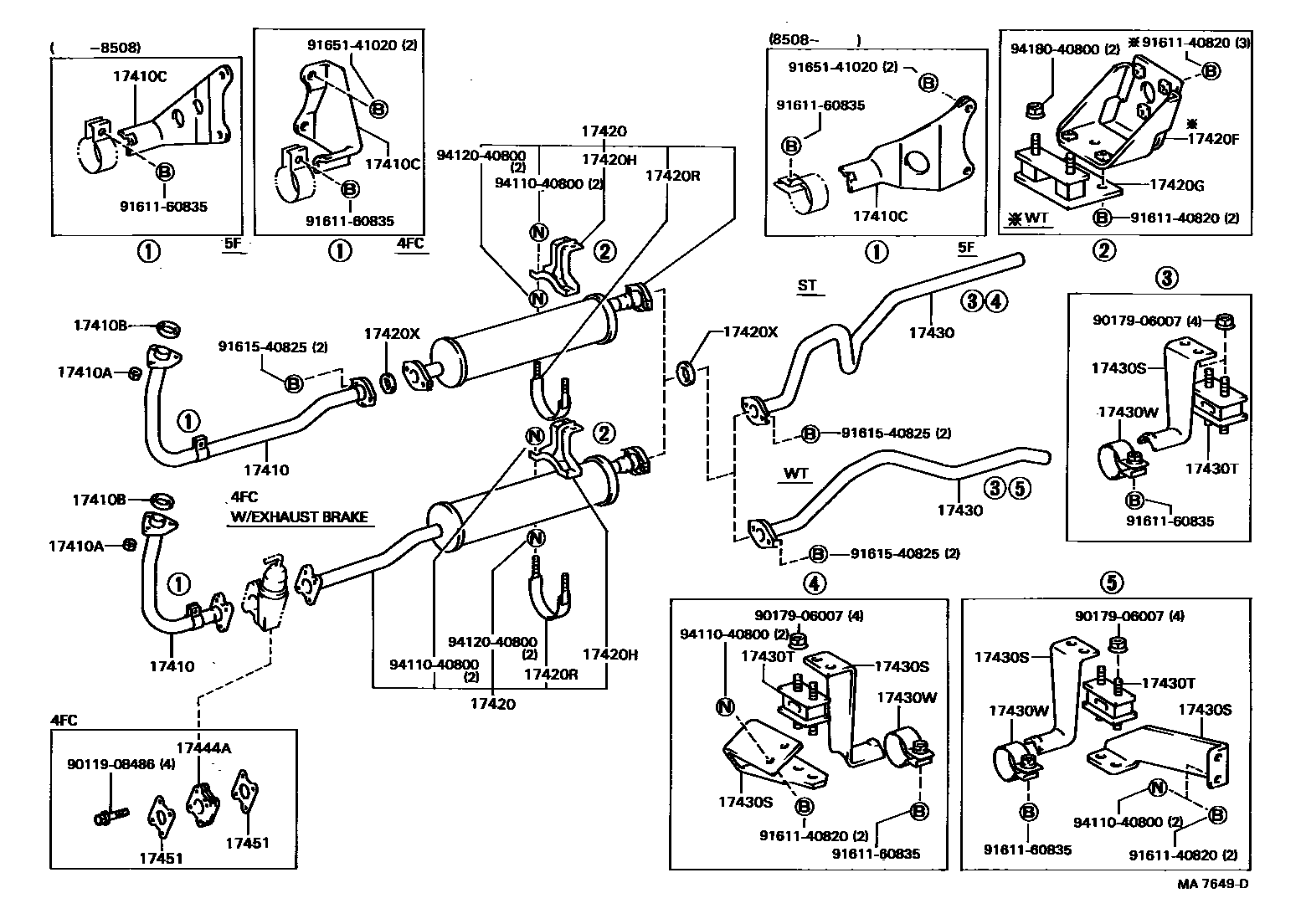

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0013 1 0014 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-58010i13B..BU77,93198510-198605

main17401-58030i13BT..BU85,90,95198409-198708

main17401-58040i13B..BU85,98198508-198605

main17410-58060iB,11B,13B..BU6#,70,80,81,82198409-198708

W/EXHAUST BRAKE,SPACER

main17410-58080i13B..BU62..T4..5F; 13B..BU82..03S; B,11B..BU60,61,70,80,81198409-198708

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3iB,11B,13B#..BU6#,70,8#,9#198409-198708

17410BGASKET, EXHAUST PIPE

main90917-06005i13BT..BU85,90,95198409-198708

main90917-06012iB,11B,13B..BU6#,7#,8#,93,98198409-198708

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-36040i13B..BU62..IV4198410-198708

main17571-58010iB,11B,13B..BU6#,70,80,81,82..5F..(CBU,IV3)198409-198508

main17571-58020i13B..BU62..4FC198409-198708

main17571-58030i13B..BU85,93,98..5F198508-198708

main17571-58050i13B..BU77198510-198708

main17571-58060i13BT..BU85,9#198409-198508

main17571-58080i13BT..BU85,90,95198508-198708

main17571-58120i13B..BU85..4FC198409-198708

main17571-58140iB,11B,13B..BU6#,70,80,81,82..5F..(CBU,IV3)198508-198708

17420PIPE ASSY, EXHAUST, CENTER

main17403-58020i13B..BU98198510-198708

FR

main17420-56120i13B..BU85..5F198409-198508

main17420-56171i13B..BU77198510-198708

main17420-56180i13BT..BU85,90198409-198508

main17420-56220i13BT..BU95198409-198508

main17420-56270i13B..BU85..4FC198409-198508

main17420-56290i13B..BU85198508-198708

main17420-56300i13BT..BU85,90198508-198708

main17420-56310i13B..BU93198603-198708

main17420-56320i13BT..BU95198508-198708

main17420-58090iB,11B..BU60,61,70..ST198409-198708

main17420-58130i13B..BU62..T4..5F; B,11B..BU60,61..WT198409-198708

main17420-58150i13B..BU64198409-198708

main17420-58190iB,11B,13B..BU80,81,82..03S198409-198708

main17420-58200iB,11B,13B..BU80,81,82198409-198708

W/EXHAUST BRAKE

main17420-58210iB,11B,13B..BU60,61,62,70..ST198409-198708

W/EXHAUST BRAKE

main17420-58220iB,11B,13B..BU60,61,62..WT198409-198708

W/EXHAUST BRAKE,SPACER

main17430-58220i13B..BU98198510-198708

RR

17420FBRACKET, EXHAUST PIPE, CENTER

main17573-58040i13B..BU62..4FC..WT; 13B..BU62..BTP,DTP; 13B..BU62..DM3; B,11B,13B..BU60,61,62,80,81,82..TR..5F..WT198409-198708

main17573-58050i13B..BU62..DM2198409-198708

main17573-58060i13B#..BU77,85,90,93,95198409-198708

17420GCUSHION, EXHAUST PIPE CENTER, CENTER

main17563-58010iB,11B,13B..BU6#,70,80,81,82198409-198708

main17567-58010i13B#..BU77,85,90,93,95198409-198708

17420HCLAMP NO.1, EXHAUST PIPE CENTER, CENTER

main17508-47010i13B..BU98198510-198708

main17576-56020iB,11B,13B..BU6#,70,80,81,82198409-198708

main17576-56040i13B#..BU77,85,90,93,95198409-198708

17420RCLAMP NO.2, EXHAUST PIPE CENTER, CENTER

main17504-56010iB,11B,13B..BU6#,70,80,81,82198409-198708

main17504-56020i13B#..BU77,85,90,93,95198409-198708

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06008×2iB,11B,13B#..BU6#,7#,8#,9#198508-198708

main90917-06012i13B#..BU85,9#198409-198508

17430PIPE ASSY, EXHAUST, TAIL

main17405-58010i13B..BU85..T2198409-198508

main17405-58011i13B..BU85..T2198508-198708

main17405-58021i13B..BU77198510-198708

main17405-58030i13B#..BU85,9#..T3; 13B..BU85..06S; 13B..BU85..ETP198409-198508

main17405-58031i13B..BU85..06S; 13B..BU85..ETP; 13B..BU93;13B#..BU85,90,95..T3198508-198708

main17430-58060iB..BU70198409-198708

main17430-58070iB,11B,13B..BU60,61,62..ST198409-198708

main17430-58080i13B..BU62..275; 13B..BU62..DTP198409-198708

main17430-58090iB,11B,13B..BU60,61,62..T2,T4,TW2,TW4198409-198708

main17430-58100i13B..BU62..DM2198409-198708

main17430-58110i13B..BU62..BTP,CTP; 13B..BU62..DM3; 13B..BU62..IV4; B..BU60..T3..WT198409-198708

main17430-58120i13B..BU64198409-198708

main17430-58130i13B..BU82198409-198708

main17430-58140iB,11B..BU80,81..T4198409-198708

main17430-58150iB,11B..BU80,81..T2198409-198708

main17450-58040i13B..BU98198510-198708

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17561-47010i13B#..BU85,90,93,95198409-198708

PIPE SIDE

main17561-56010iB,11B,13B..BU6#,7#,80,81,82198409-198708

PIPE SIDE

main17574-58040i13B..BU85..ETP; 13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1; B,11B,13B..BU60,61,62..WT198409-198708

BODY SIDE

main17574-58050iB,11B,13B..BU60,61,62,70..ST198409-198708

BODY SIDE

main17574-58060iB,11B,13B..BU80,81,85..T2198409-198708

BODY SIDE

main17576-58010i13B..BU98198510-198708

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17567-61030iB,11B,13B#..BU6#,7#,8#,90,93,95198409-198708

17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)

main90461-32005iB,11B,13B..BU6#,7#,80,81,82198409-198708

main90461-32007i13B#..BU85,90,93,95198409-198708

17444ASPACER, EXHAUST FRONT PIPE

main17444-58010i13B..BU62,85..4FC198409-198708

17451GASKET, EXHAUST PIPE

main46759-36030×2i13B..BU62,85..4FC198409-198708

9011908486

main90119-08486

9017906007

main90179-06007

9161140820

main91611-40820

9161160835

main91611-60835

9161540825

main91615-40825

9165141020

main91651-41020

9411040800

main94110-40800

9412040800

main94120-40800

9418040800

main94180-40800

25 parts on this diagram · 9 diagrams in section
