SHORT BLOCK ASSEMBLY

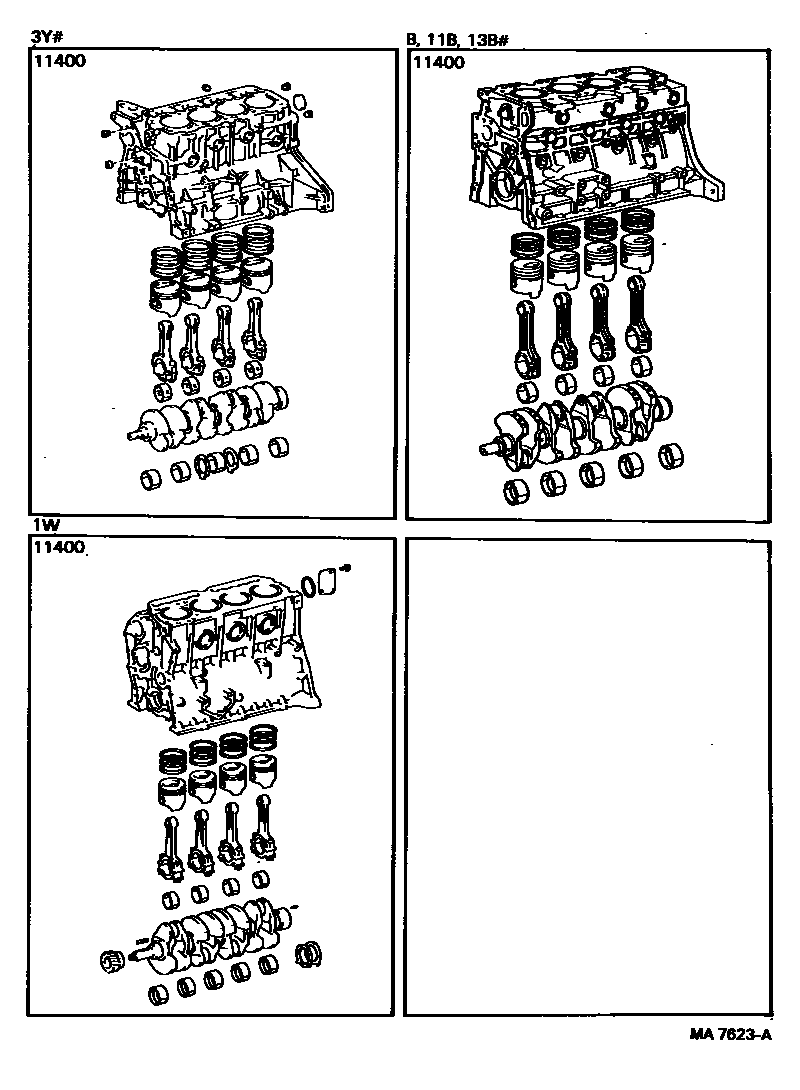

Parts diagram

11400BLOCK ASSY, SHORT

main11400-56040i198409-198708

main11400-56050i198501-198708

main11400-58020i198409-198708

main11400-58030i198409-198708

1 parts on this diagram · 1 diagram in section
