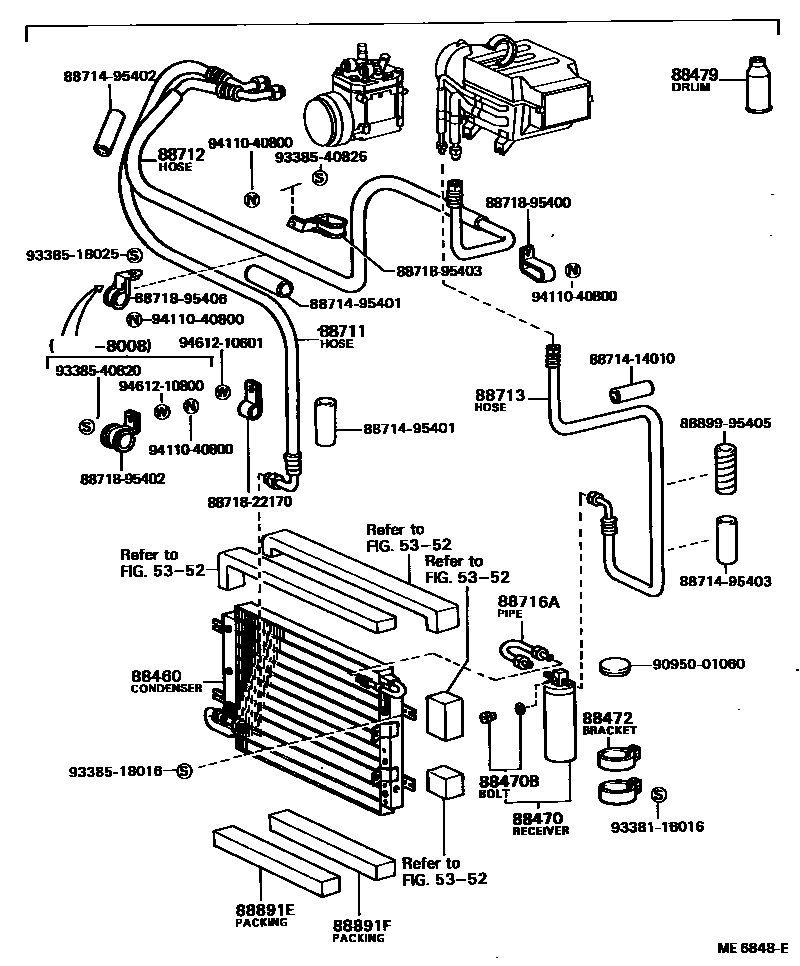

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

5352RADIATOR SUPPORT & WIND GUIDE

→ Go to FIG 53-52

88460CONDENSER ASSY, COOLER

main88460-95400iBU2#,30,31197708-198204

main88460-95401iBU35,36198008-198107

main88460-95402iBU35,36,37,4#,5#198107-198408

main88460-95403iBU2#,30,32,33,34198204-198408

88470RECEIVER & DRYER ASSY, COOLER

main88470-20070iBU2#,3#,4#,5#198008-198408

main88470-95400iBU2#,3#197708-197906

88470BBOLT, FUSE

main90099-04579iBU2#,3#,4#,5#197708-198408

88472BRACKET, RECEIVER TANK, NO.1

main88473-30250×2iBU2#,3#,4#,5#197708-198408

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×2iBU2#,3#,4#,5#197708-198408

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-95401iBU2#,30,31,32,33,34197708-198408

main88711-95403iBU35,36,37,4#,5#198107-198408

main88711-95A11iBU35,36198008-198107

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-95401iBU2#,30,31,32,33,34197708-198408

main88712-95403iBU35,36198008-198107

main88712-95404iBU35,36,37,4#,5#198107-198408

88713HOSE, COOLER REFRIGERANT SUCTION, NO.2

main88721-95400iBU2#,30,31,32,33,34197708-198408

main88721-95401iBU35,36198008-198204

main88721-95402iBU36,37,4#,5#198204-198408

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-95400iBU2#,30,31,32,33,34197708-198408

main88716-95401iBU35,36198008-198010

main88716-95402iBU35,36,37,4#,5#198010-198408

88891EPACKING E (FOR COOLER)

main88899-95406iBU2#,30,32,33,34198204-198408

88891FPACKING F (FOR COOLER)

main88899-95407iBU2#,30,32,33,34198204-198408

8871414010HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-14010

8871495401HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-95401

8871495402HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-95402

8871495403HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-95403

8871822170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22170

8871895400PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95400

8871895402PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95402

8871895403PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95403

8871895406PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95406

8889995405COVER, EVAPORATOR

main88899-95405

9095001060

main90950-01060

9338116016

main93381-16016

9338518016

main93385-18016

9338518025

main93385-18025

9338540820

main93385-40820

9338540825

main93385-40825

9411040800

main94110-40800

9461210601

main94612-10601

9461210800

main94612-10800

31 parts on this diagram · 3 diagrams in section
