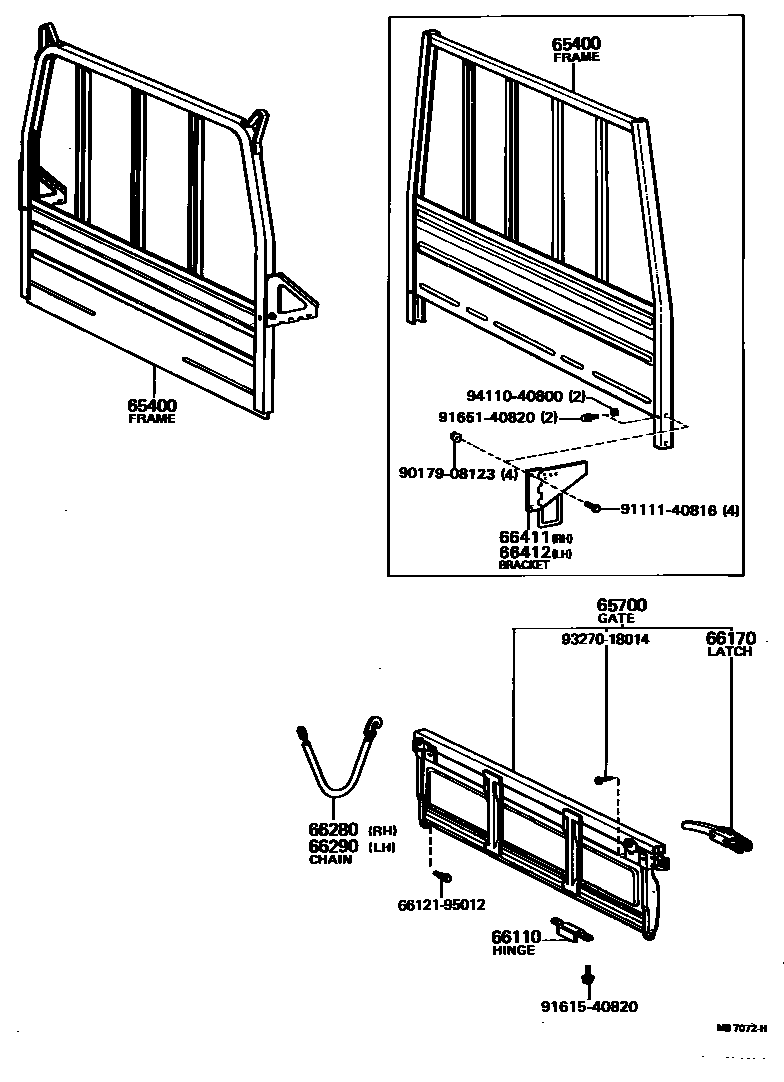

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

65400FRAME ASSY, REAR BODY GUARD

main65400-92708iBU20,22..TB..ST197708-198408

main65400-92720iBU20,21,22,23..T3..WT..20T197708-198408

main65400-92740iBU20..T2197708-197904

main65400-92741iBU20,22..M50..WT..20T197904-198408

main65400-92750iBU20,22..06S..WT197904-198408

main65400-92760iBU20,21,23..275197912-198408

main65400-92802iBU3#..T3197708-198008

main65400-92803iBU30..H50..20T198008-198408

main65400-92804iBU30,32,34..H50..20T198108-198408

main65400-92805iBU32,34..20T198204-198408

W/TORSION SPRING

main65400-92810iBU30..M50..WT197904-198008

main65400-92812iBU35..M50198008-198108

main65400-92813iBU30..M50198008-198108

main65400-92814iBU30,33..M50198108-198408

main65400-92815iBU35,36,37..T2198108-198408

main65400-92816iBU30,33198204-198408

W/TORSION SPRING

main65400-92817iBU36,37..H51198204-198408

W/TORSION SPRING

main65400-92820iBU35,36..H50198008-198108

SILLCROSS=WOOD

main65400-92820iBU35,36,37..TB..H50198108-198408

main65400-92821iBU35,36..H50198008-198108

main65400-92822iBU36,37..TB..H50198204-198408

W/TORSION SPRING

main65400-92861iBU30..TB..06S197904-198008

main65400-92862iBU30..06S198008-198108

main65400-92864iBU30..06S198108-198204

main65400-92865iBU32,34..06S198204-198408

main65400-92871iBU40,41198204-198408

main65400-92875iBU40,41198204-198408

W/TORSION SPRING

main65400-95416iBU20..T1,TW1197708-198408

main65400-95425iBU20,22..TS..06S197810-198408

main65401-95403iBU20..T3..TS197708-198008

main65401-95405iBU30..TS197708-198408

65700GATE ASSY, REAR BODY TAIL

main65503-96311iBU20..L2..TSK197708-197904

main65503-96312iBU20..L1..TSK197708-198008

main65503-96313iBU20..L2..TSK197904-198008

main65503-96314iBU20..L1..TSK198008-198204

main65503-96315iBU20..L2..TSK198008-198204

main65503-96317iBU21,23..DM1..TSK198204-198408

main65503-96320iBU21,23..DM4..TSK198204-198408

main65610-93102iBU20,21,23..DM1..KKT197708-198408

main65610-93103iBU21,23..DM4..KKT198204-198408

main65610-93300iBU20,21,23..DM3197904-198408

main65700-92706iBU20..T3..TB197708-197912

main65700-92707iBU20..06S..WT197912-198008

main65700-92708iBU20..06S..WT198008-198204

main65700-92709iBU2#..TB..20T198204-198408

main65700-92740iBU20..T2197708-197712

main65700-92741iBU20..T2197712-197803

main65700-92760iBU20..275197912-198008

main65700-92761iBU20..275198008-198204

main65700-92762iBU21,23..275198204-198408

main65700-92801iBU30..TB197708-197912

main65700-92802iBU3#..02S,03S197912-198008

main65700-92803iBU30198008-198204

main65700-92804iBU30,32,33,34198204-198408

main65700-92820iBU35,36198008-198204

main65700-92821iBU36,37198204-198408

main65700-92860iBU30..TB..06S197904-197912

main65700-92861iBU30..TB..06S197912-198008

main65700-92870iBU40,41198204-198408

main65700-95025iBU20..TS198008-198201

main65700-95030iBU20,22..TS198201-198408

main65700-95407iBU20..T3..TS197708-198204

main65700-95408iBU30..TS197708-198008

main65700-95412iBU20..T1,TW1197708-198008

66110HINGE ASSY, TAIL GATE

main66110-95014iBU20,22..T1,TW1197708-198408

main66110-95407iBU30..TS197708-198008

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402iBU20,22..T1,TW1197708-198408

66280CHAIN ASSY, TAIL GATE, RH

main66280-92201iBU3#;BU2#..TB198303-198408

main66280-92700iBU20,30..T3..TB197708-198204

main66280-92701iBU2#,36..TB;BU30,32,33,34,37,40,41198204-198303

main66280-95011iBU20,30..TS197708-198008

main66280-95015iBU20,22..TS198008-198408

66290CHAIN ASSY, TAIL GATE, LH

main66280-92201iBU3#;BU2#..TB198303-198408

main66280-92701iBU2#,36..TB;BU30,32,33,34,37,40,41198204-198303

main66280-95011iBU20,30..TS197708-198008

main66280-95015iBU20,22..TS198008-198408

main66290-92700iBU20,30,31,35..TB197708-198204

66411BRACKET, GUARD FRAME, RH

main66401-95401iBU20,30..(T3,TW1)..TS197708-198008

66412BRACKET, GUARD FRAME, LH

main66402-95401iBU20,30..(T3,TW1)..TS197708-198008

6612195012HINGE, TAIL GATE, MALE

main66121-95012

9017908123

main90179-08123

9111140816

main91111-40816

9161540820

main91615-40820

9165140820

main91651-40820

9327018014

main93270-18014

9411040800

main94110-40800

15 parts on this diagram · 6 diagrams in section
