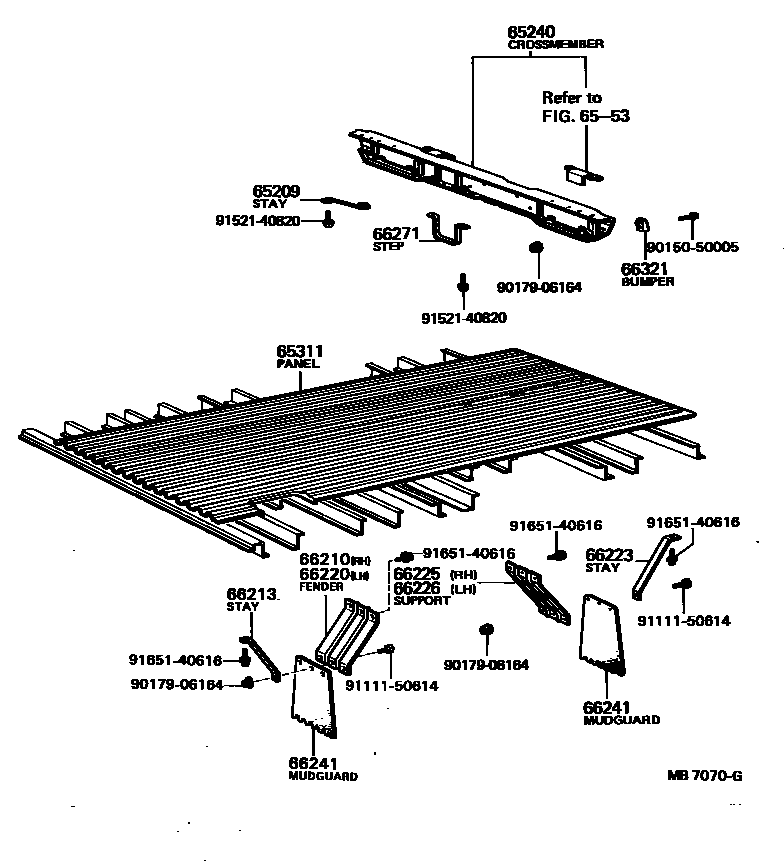

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

65209STAY SUB-ASSY, REAR BODY STEP

main65209-95400iBU20,22..T1,TW1197708-198408

65240CROSSMEMBER, REAR BODY FLOOR, TAIL

main65240-92707iBU20,22..TB..ST198008-198408

main65240-92724iBU2#..TB..H50..20T198008-198408

main65240-92742iBU20..M50..WT198008-198204

main65240-92743iBU20,22..M50..WT198204-198408

main65240-92760iBU20,21..275198008-198408

main65240-92802iBU30,32,34..H50198108-198408

main65240-92812iBU35..M50198008-198108

main65240-92814iBU30..M50198008-198108

main65240-92815iBU30,33..M50198108-198408

main65240-92816iBU35,37..T2198108-198408

main65240-92820iBU35,36..H50198008-198108

main65240-92822iBU30..H50198008-198108

main65240-92823iBU35,36,37..TB..H50198108-198408

main65240-92871iBU40,41198209-198408

main65240-95418iBU20,22..T1,TW1197708-198408

main65240-95419iBU20..T3..TS197708-198008

main65240-95420iBU30..TS197708-198008

65311PANEL, FLOOR, CENTER

main65311-95407iBU20,22..T1197708-198408

main65311-95408iBU20,22..TS..06S197708-198408

main65311-95409iBU30..TS197708-198008

6553REAR BODY GUARD FRAME & TAIL GATE

→ Go to FIG 65-53

66210FENDER ASSY, REAR BODY, FRONT RH

main66201-92702iBU20,22,30..TB..ST197708-198408

main66201-92723iBU20,21,22,23..T3..WT..20T197708-198408

main66201-92740iBU20,22..T2,TW2197708-198408

main66201-92820iBU3#..TB..WT197708-198408

main66201-92822iBU30,32,33,34198008-198408

main66201-92870iBU40,41198204-198408

main66201-95401iBU30..06S197708-197802

main66201-95402iBU30..TS197802-198008

main66225-95012iBU20,22..TS198103-198408

main66231-95011iBU20..T3..TS197708-198008

main66303-96250iBU20,21,23..TSK198004-198408

main66303-96301iBU20..TSK197708-198004

main66311-93102iBU20..KKT197708-197904

main66311-93103iBU20..DM1..KKT197904-198204

main66311-93104iBU21,23..(DM1,DM4)..KKT198204-198408

main66311-93300iBU20..DM3197904-198204

main66311-93301iBU21,23..DM3198204-198408

66213STAY, REAR FENDER FRONT PLATE

main66213-93100iBU21,23..(DM1,DM4)..KKT198204-198408

main66218-92700iBU2#,36..TB;BU30,32,33,34,35,37,40,41198011-198408

main66223-95408iBU20,22..TS198103-198408

66220FENDER ASSY, REAR BODY, FRONT LH

main66202-92702iBU20,22,30..TB..ST197708-198408

main66202-92723iBU20,21,22,23..T3..WT..20T197708-198408

main66202-92740iBU20,22..T2,TW2197708-198408

main66202-92820iBU35,36,37197708-198408

main66202-92822iBU30,32,33,34198008-198408

main66202-92870iBU40,41198204-198408

main66202-95401iBU30..06S197708-197802

main66202-95402iBU30..TS197802-198008

main66225-95012iBU20,22..TS198103-198408

main66232-95011iBU20..T3..TS197708-198008

main66304-96250iBU20,21,23..TSK198004-198408

main66304-96301iBU20..TSK197708-198004

main66312-93102iBU20..KKT197708-197904

main66312-93103iBU20..DM1..KKT197904-198204

main66312-93104iBU21,23..(DM1,DM4)..KKT198204-198408

main66312-93300iBU20..DM3197904-198204

main66312-93301iBU21,23..DM3198204-198408

66223STAY, REAR FENDER REAR PLATE

main66213-93100iBU21,23..(DM1,DM4)..KKT198204-198408

main66213-93300iBU20..DM3197904-198008

FR RH,RR LH

main66213-93301iBU20,21,23..DM3198008-198408

FR RH,RR LH

main66214-93300iBU20..DM3197904-198008

FR LH,RR RH

main66214-93301iBU20,21,23..DM3198008-198408

FR LH,RR RH

main66217-92201iBU40,41198209-198408

main66217-92703iBU20..TB..ST197708-198008

main66217-92704iBU30,32,34..H50198008-198408

main66217-92720iBU20..T3..WT197708-198008

main66217-92721iBU20..TB..H50198008-198101

main66217-92740iBU20..T2197708-197904

main66217-92741iBU20..M50..WT197904-198008

main66217-92742iBU20..M50..WT198008-198408

main66217-92743iBU20,22..M50..WT198201-198408

main66217-92803iBU3#..T3197708-198008

main66217-92810iBU30..M50..WT197904-198008

main66217-92812iBU30,33,35,36,37..T2198008-198408

main66217-92813iBU30..M50198008-198101

main66217-92820iBU40198204-198209

main66217-92820iBU35,36,37..TB..H50198008-198408

SILLCROSS=WOOD

main66217-92821iBU35,36,37..TB..H50198008-198408

main66217-92822iBU30..H50198008-198101

main66217-92860iBU30..TB..06S197904-198008

main66223-95405iBU20,22..T1,TW1197708-198408

main66223-95407iBU30..TS197708-198008

66225SUPPORT, REAR MUDGUARD, RH

main66225-95012iBU20,22..T1,TW1197708-198408

66226SUPPORT, REAR MUDGUARD, LH

main66225-95012iBU20,22..T1,TW1197708-198408

66241MUDGUARD, REAR

main66241-92700iBU20,30..TB..ST197708-198008

main66241-92701iBU20,22..TB..ST198008-198408

main66241-92720iBU20..T3..WT197708-198008

main66241-92740iBU20..T2,TW2197708-198008

main66241-92741iBU20,22..M50..WT198008-198408

main66241-92820iBU2#..TB..H50198008-198408

main66241-92871iBU41198307-198408

LH

main66241-92871iBU40,41198204-198307

main66241-92873iBU41198307-198408

RH

main66241-95401iBU30..TS197708-198008

main66241-95403iBU20,22..TS198008-198408

RR

main66241-95404iBU20,22..TS198103-198408

FR

main66241-95600iBU20..TS197708-198008

main66331-93102iBU20..20T..KKT197708-198008

main66331-93103iBU20..20T..KKT198008-198204

main66331-93104iBU21..20T..KKT;BU23..(DM1,DM4)..KKT198204-198408

main66331-96302iBU20..TSK197708-198008

main66331-96303iBU20,21,23..TSK198008-198408

66271STEP, REAR BODY

main66251-92720iBU20,21,22,23..T3..WT197708-198408

main66251-92740iBU20,22..T2,TW2197708-198408

main66271-95014iBU20,22..T1,TW1197708-198408

main66271-95406iBU20..T3..TS197708-198008

66321BUMPER, GATE RUBBER

main66321-92703iBU3#,40,41198204-198408

W/TORSION SPRING

main66321-95010iBU30..06S197708-197802

TAIL GATE

main66321-95012iBU20..T3..TS197802-198008

TAIL GATE

main66321-95012iBU20..T3..TS197802-198008

SIDE GATE

main66321-95013iBU20..T1,TW1197708-197712

main66321-95405iBU30..06S197708-197802

SIDE GATE

main66321-95406iBU20,22..T1,TW1197712-198408

main66321-95407iBU30..TS197802-198008

TAIL GATE

9015050005

main90150-50005

9017906164

main90179-06164

9111150614

main91111-50614

9152140820

main91521-40820

9165140616

main91651-40616

18 parts on this diagram · 10 diagrams in section
