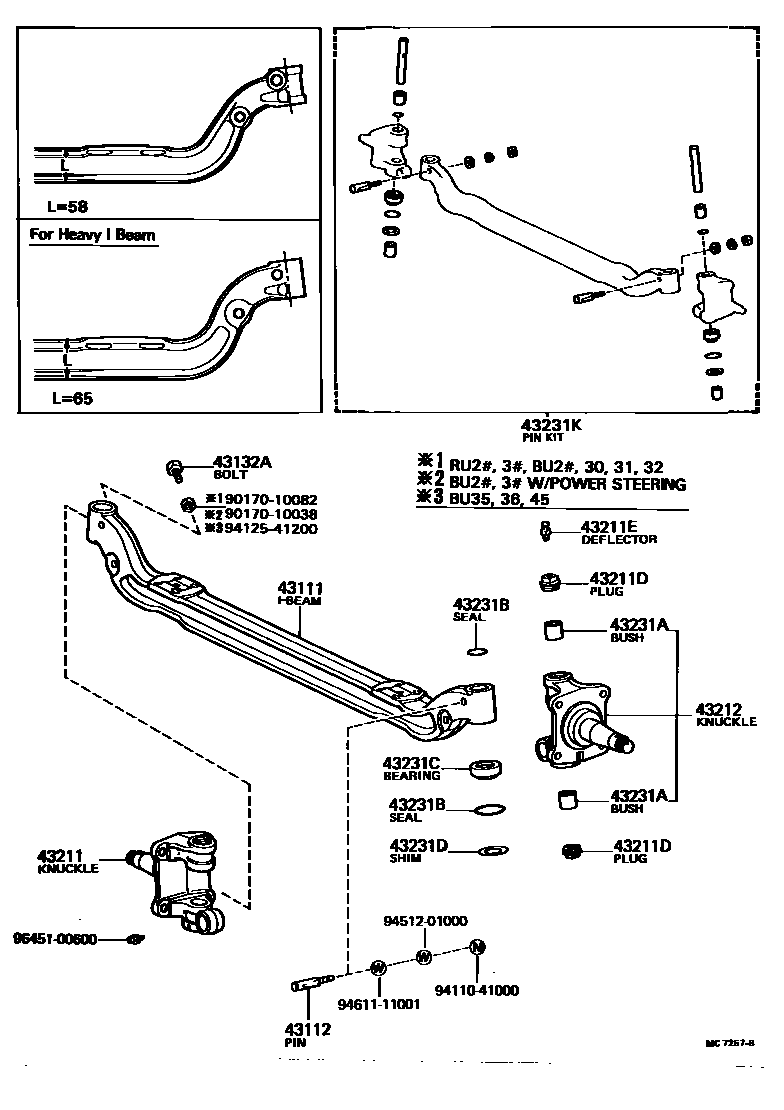

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

43111I BEAM, FRONT AXLE

main43111-36020iBU20..T2;BU20,30..ST197708-197904

sub43111-36021

sub94125-41200

main43111-36030iBU20..ST..20T197802-197904

HEAVY I BEAM

main43111-36040iBU35198008-198204

main43111-36041iBU36,37..20T;BU36,37..GTP198204-198408

sub43111-36070

main43111-36050iBU36198009-198204

main43111-36051iBU45,46;BU36,37..275,30T198204-198408

sub43111-36070

main43111-36060iBU40,41,5#198204-198408

sub43111-36080

43112PIN, KING PIN LOCK

main43112-36020×2iBU2#,3#,45,46197708-198408

main43112-36030×2iBU40,41,5#198204-198408

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-10006×2iBU2#,30,31,32,33,34197708-198408

main90106-12001×2iBU35,36,37,45,46198008-198408

main90106-12003×2iBU40,41,5#198204-198408

43211KNUCKLE, STEERING, RH

main43201-36040iBU2#,30197708-198008

sub43201-36H00

main43201-36050iBU31197708-198008

sub43201-36H01

main43201-36070iBU40,41,5#198204-198304

main43201-36071iBU41,51198304-198408

main43201-36080iBU36,37..20T;BU36,37..GTP198204-198408

main43201-36090iBU20,21,23..FTP198008-198408

43211DPLUG (FOR STEERING KNUCKLE)

main90345-33001×2iBU2#,3#,45,46198008-198408

UPR

sub90345-33004

main90345-33002×2iBU2#,3#,45,46198008-198408

LWR

sub90345-33003

main90345-58001×2iBU2#,3#197708-198008

UPR

main90345-58002×2iBU2#,3#197708-198008

LWR

43211EDEFLECTOR, DUST (FOR STEERING KNUCKLE)

main90930-03031×2iBU2#,3#,45,46197908-198408

main90930-03048×2iBU2#,3#197708-197908

43212KNUCKLE, STEERING, LH

main43202-36030iBU2#,30197708-198008

sub43202-36H00

main43202-36040iBU31197708-198008

sub43202-36H01

main43202-36060iBU40,41,5#198204-198304

main43202-36061iBU41,51198304-198408

main43202-36070iBU20..M50;BU20..CTP;BU23..BTP;BU23..20T,275;BU20,21..KKT,TSK;BU20,21..TB..H50;BU22,30,32,33,34,35198008-198408

main43202-36080iBU20,21,23..FTP198008-198408

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90033-84006×2iBU40,41,5#198204-198304

UPR

main90033-84007×2iBU40,41,5#198204-198304

LWR

main90384-35002×2iBU41,51198304-198408

UPR

sub90384-35013

main90384-35003×2iBU41,51198304-198408

LWR

sub90384-35014

main90999-73082×4iBU2#,3#197708-198008

main90999-73086×4iBU2#,3#,45,46198008-198408

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main90033-01019×2iBU40,41,5#198204-198304

UPR

main90033-12001×2iBU40,41,5#198204-198304

LWR

main90311-35012×2iBU41,51198304-198408

main96710-01028iBU2#,3#197708-198204

UPR

main96710-02042×2iBU2#,3#197708-198204

LWR

main96711-19028×2iBU2#,3#,45,46198204-198408

UPR

main96711-24042×2iBU2#,3#,45,46198204-198408

LWR

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90033-69005×2iBU40,41,5#198204-198304

main90367-28011×2iBU2#,3#,45,46197708-198408

main90367-35001×2iBU41,51198304-198408

43231DSHIM (FOR KING PIN)

main90032-09011×2iBU40,41,5#198204-198304

UPR

main90035-64019iBU40,41,5#198204-198304

LWR,T=0.20

main90035-64020iBU40,41,5#198204-198304

LWR,T=0.30

main90564-28128×2iBU2#,3#,45,46197708-198408

main90564-28129×2iBU2#,3#,45,46197708-198408

main90564-28130×2iBU2#,3#,45,46197708-198408

main90564-28131×2iBU2#,3#,45,46197708-198408

main90564-28144×2iBU2#,3#,45,46197708-198408

main90564-28145×2iBU2#,3#,45,46197708-198408

main90564-37001×2iBU41,51198304-198408

main90564-37002×2iBU41,51198304-198408

main90564-37003×2iBU41,51198304-198408

main90564-37004×2iBU41,51198304-198408

main90564-37005×2iBU41,51198304-198408

main90564-37006×2iBU41,51198304-198408

main90564-37007×2iBU41,51198304-198408

main90564-37008×2iBU41,51198304-198408

43231KPIN KIT, STEERING KNUCKLE KING

main04431-36030iBU2#,3#197708-198008

main04431-36040iBU2#,3#,45,46198008-198408

sub04431-36041

main04431-36050iBU40,41,5#198204-198304

main04431-36051iBU41,51198304-198408

9017010038

main90170-10038

9017010082

main90170-10082

9411041000

main94110-41000

9412541200

main94125-41200

9451201000

main94512-01000

9461111001

main94611-11001

9645100600

main96451-00600

19 parts on this diagram · 3 diagrams in section
