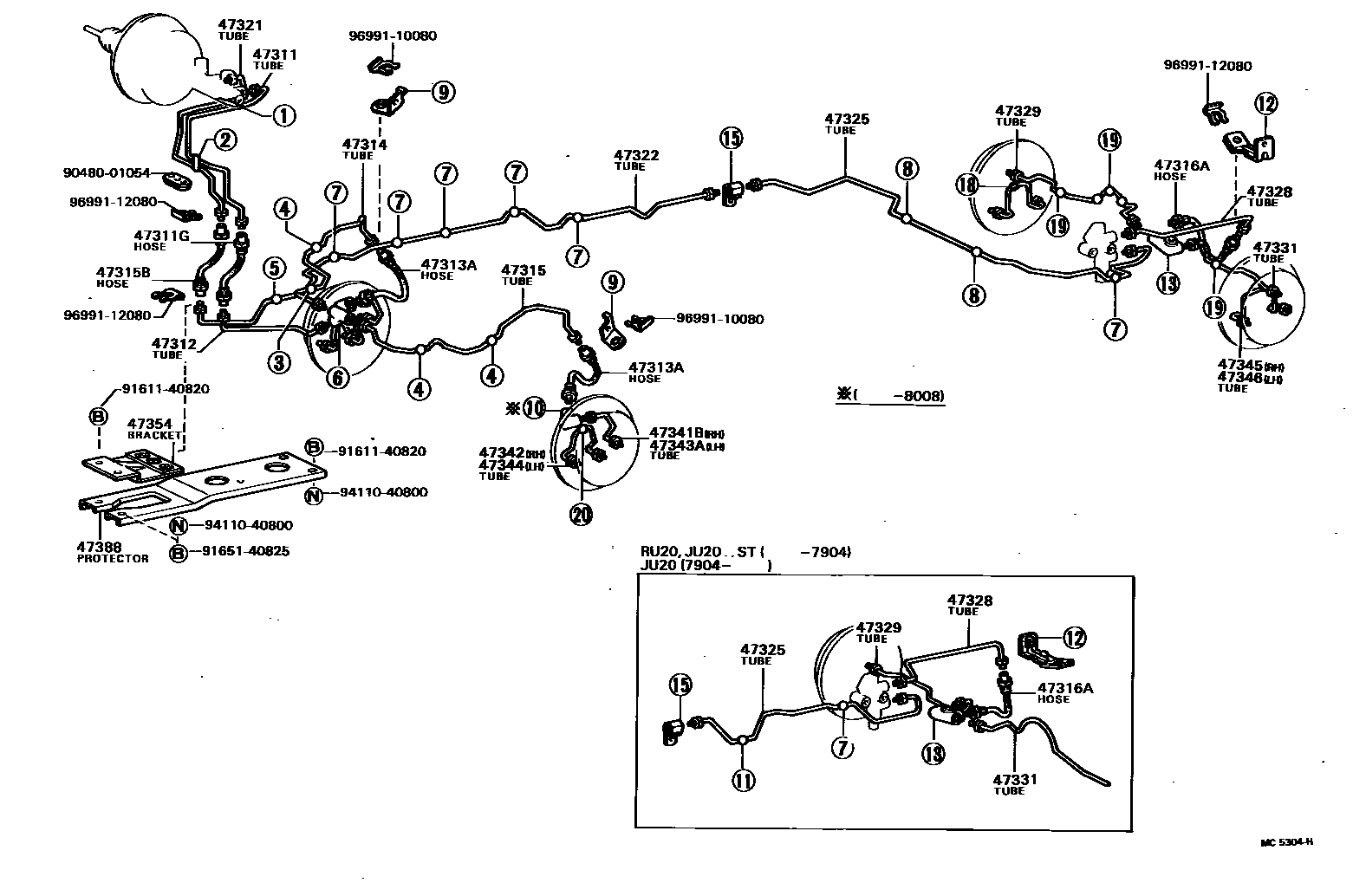

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

47311TUBE, FRONT BRAKE, NO.1

main47311-36200iBU2#,30,31197708-198107

main47311-36201iBU2#,30,32,33,34198107-198408

main47311-36230iBU35,36,37,4#,5#198008-198408

main47311-36270iBU37..275,30T198302-198408

W/H50S TRANSMISSION

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96932-31223iBU2#,30197708-197902

main96932-32205iBU2#,30,31,32,33,34197902-198408

main96932-33405iBU35,36,37,4#,5#198008-198408

47312TUBE, FRONT BRAKE, NO.2

main47312-36150iBU2#,30,31,32,33,34197708-198408

main47312-36200iBU35,36,37,4#,5#198008-198408

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main96940-31363×2iBU2#,30197708-197902

main96940-33605×2iBU2#,3#197902-198008

main96940-34005×2iBU36,37..H50..20T198204-198408

FR DISC BRAKE

main96950-33605×2iBU2#,30,32,33,34198008-198408

main96950-33905×2iBU40,41,5#198204-198408

main96950-34205×2iBU35,36,37,45,46198008-198408

47314TUBE, FRONT BRAKE, NO.4

main47314-36120iBU2#,30,31,32,33,34197708-198408

main47314-36140iBU35,36,45198008-198408

main47314-36170iBU40,41,5#198204-198408

47315TUBE, FRONT BRAKE, NO.5

main47315-36120iBU2#,30,31,32,33,34197708-198408

main47315-36130iBU35,36,37,45,46198008-198408

main47315-36160iBU40,41,5#198204-198408

47315BHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96932-31223iBU2#,30197708-197902

main96932-32205iBU2#,30,31,32,33,34197902-198408

main96932-33405iBU35,36,37,4#,5#198008-198408

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96912-31363iBU20,30..ST197708-197902

main96912-31383iBU20..CTP197803-197902

main96912-31403iBU20..BTP; BU20..T2197708-197902

main96912-31443iBU25;BU20..H50..20T;BU20..T3..03S..WT..ATP197708-197902

main96912-33505iBU40,41,5#198204-198408

main96912-33605iBU20,30..ST197902-198201

main96912-33705iBU20,22..ST198204-198408

main96912-33805iBU20..BTP,CTP,FTP197904-198201

main96912-33905iBU23..BTP;BU21..KKT..IV3;BU20,22..M50..WT;BU21,23..DM3..CBU198204-198408

main96912-34005iBU20..BTP197902-197904

main96912-34105iBU20,21,23..FTP;BU2#..(DM1,DM4,TB)..H50; BU3#,45,46198201-198408

main96912-34405iBU25;BU20..(DM1,TB)..H50;BU20..T3..03S..WT..ATP..DSL197902-198201

47321TUBE, REAR BRAKE, NO.1

main47321-36100iBU2#,30,31197708-198107

main47321-36101iBU2#,30,32,33,34198107-198408

main47321-36130iBU35,36,37,4#,5#198008-198408

main47321-36170iBU37..275,30T198302-198408

47322TUBE, REAR BRAKE, NO.2

main47322-36010iBU20..DTP;BU30,32,34;BU22,33..M50;BU20,21,23..DM3,TS;BU20..(HRF,SRF,T2,T3,TW2)..M50198008-198408

main47322-36030iBU2#..(DM1,DM4,TB)..H50198008-198408

main47322-36090iBU35,36,37198008-198305

main47322-36091iBU37198305-198408

main47322-36120iBU40,41,5#198204-198305

main47322-36121iBU41,51198305-198408

main47322-36130iBU45,46198204-198408

47325TUBE, REAR BRAKE, NO.5

main47325-36040iBU20,22,30..ST197708-198408

W/LSPV

main47325-36050iBU20,21,23..(DM1,DM4)..KKT197708-198408

W/LSPV

main47325-36060iBU20..BTP,CTP; BU20..T2197708-197904

W/LSPV

main47325-36061iBU20,21,23..BTP,CTP,FTP; BU20,21,23..DM3;BU20,22..M50..WT197904-198408

W/LSPV

main47325-36070iBU20,21,22,23..TB..H50; BU20,21,23..TSK197904-198408

W/LSPV

main47325-36100iBU25197803-198008

W/DSPV

47328TUBE, REAR BRAKE, NO.8

main47328-36040iBU20..DM1..KKT197708-198201

main47328-36041iBU20,21,23..(DM1,DM4)..KKT198201-198408

main47328-36050iBU20..BTP,CTP; BU20..T2; BU30..WT197708-197904

W/O LSPV

main47328-36051iBU20..BTP,CTP,FTP; BU20..DM3;BU20..M50..WT; BU3#..WT197904-198201

W/O LSPV

main47328-36052iBU20,21,23..BTP,CTP,FTP; BU20,21,23..DM3;BU20,22..M50..WT; BU3#198201-198408

W/O LSPV

main47328-36060iBU20..H50..(20T,275);BU20..T3..03S..WT..ATP..DSL197708-198008

W/O LSPV

main47328-36061iBU2#..(DM1,DM4,TB)..H50198201-198408

W/O LSPV

main47328-36100iBU20..DTP197904-198201

W/O LSPV

main47328-36101iBU20..DTP198201-198204

W/O LSPV

main47328-36120iBU20,30..ST197708-198201

W/LSPV

main47328-36121iBU20..ST198201-198204

main47328-36130iBU25197803-198008

W/DSPV

main47328-36140iBU20..BTP,CTP,FTP; BU20..DM3;BU20..T2,TW2197708-198201

main47328-36141iBU20,21,23..BTP,CTP,FTP198201-198408

main47328-36150iBU20..TB..H50; BU20..TSK197904-198201

main47328-36151iBU2#..TB..H50; BU20,21,23..DM1..TSK198201-198408

main47328-36170iBU25197803-198008

W/O DSPV

main47328-36200iBU40,41,5#198204-198408

main47328-36220iBU45198204-198208

main47328-36221iBU45,46198208-198408

47329TUBE, REAR BRAKE, NO.9

main47329-36010iBU20,30..ST197708-198201

main47329-36030iBU20..CTP197803-198201

main47329-36031iBU20..CTP; BU30,35..H50..20T198201-198204

main47329-36060iBU20..T2,TW2197708-198001

main47329-36061iBU20..M50..WT198001-198201

main47329-36070iBU20..(DM1,TB)..H50;BU20..T3..03S..WT..ATP..DSL197708-198201

main47329-36080iBU20..BTP197708-198001

main47329-36110iBU31,36197904-198201

main47329-36120iBU30,35..M50..WT197904-198201

main47329-36121iBU30,33,35,36,37..T2198201-198408

main47329-36130iBU20..BTP; BU20..DM3198001-198201

main47329-36140iBU20,22..ST198201-198408

main47329-36150iBU2#..H50..(20T,275); BU20,21,23..BTP198201-198408

W/O LSPV

main47329-36160iBU20,22..M50..WT198201-198408

main47329-36170iBU20,21,23..FTP; BU45,46;BU36,37..275,30T198201-198408

main47329-36180iBU40,41,5#198204-198408

main47329-36190iBU20,21,23..TB..H50; BU20,21,23..TSK198201-198408

W/LSPV

47331TUBE, REAR BRAKE, NO.10

main47331-36040iBU20,30..ST197904-198201

main47331-36060iBU25,30..WT197708-197904

main47331-36061iBU34;BU32,36,37..H50..20T; BU36,37..GTP198204-198408

main47331-36090iBU20..T2,TW2197708-198001

main47331-36091iBU20..M50..WT198001-198201

main47331-36100iBU20..(DM1,TB)..H50;BU20..T3..03S..WT..ATP..DSL197708-198201

main47331-36110iBU20..DM3197904-198001

main47331-36140iBU31,36197904-198201

main47331-36150iBU30,35..M50..WT197904-198201

main47331-36151iBU30,33,35,36,37..T2198201-198408

main47331-36160iBU20..BTP; BU20..DM3198001-198201

main47331-36170iBU20,22..ST198201-198408

main47331-36180iBU20,21,23..BTP; BU20,21,23..TB..H50; BU20,21,23..TSK; BU22..T3;BU20..TB..ST;BU20,21,23..H50..20T198201-198408

W/LSPV; W/O LSPV

main47331-36190iBU20,22..M50..WT198201-198408

main47331-36200iBU20,21,23..FTP; BU45,46;BU36,37..275,30T198201-198408

main47331-36210iBU40,41,5#198204-198408

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-36010iBU20..ST;BU30..M50;BU20..T2,TW2197708-198008

main47341-36020iBU20,22,30,33,35,36,37..H51,M50198008-198408

main47341-36030iBU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL197708-198008

main47341-36040iBU2#,30,32,34,35,36,37,45,46..H50198008-198408

main47341-36060iBU40,41,5#198204-198408

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-36020iBU20..ST;BU20..T2,TW2;BU22,30,33,35,36,37..H51,M50197708-198408

main47342-36030iBU20..T3..03S..WT..ATP..DSL;BU2#,30,31,32,34,37,45,46..H50197708-198408

main47342-36050iBU40,41,5#198204-198408

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-36010iBU20..ST;BU30..M50;BU20..T2,TW2197708-198008

main47343-36020iBU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL197708-198008

main47343-36040iBU2#,30,32,34,35,36,37,45,46..H50198008-198408

main47343-36050iBU20,22,30,33,35,36,37..H51,M50198008-198408

main47343-36060iBU40,41,5#198204-198408

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-36020iBU20..ST;BU20..T2,TW2;BU22,30,33,35,36,37..H51,M50197708-198408

main47342-36030iBU20..T3..03S..WT..ATP..DSL;BU2#,30,31,32,34,35,36,37,45,46..H50197708-198408

main47342-36050iBU40,41,5#198204-198408

47345TUBE, WHEEL CYLINDER, REAR RH

main47342-36050iBU40,41,5#198204-198408

main47345-36010iBU20,30..ST197708-198105

main47345-36011iBU20,22..ST198105-198408

main47345-36020iBU20..T3..03S..WT..ATP..DSL;BU2#,30,31,32,34,35,36,37,45,46..H50197708-198408

main47345-36030iBU20,22,30,33,35,36,37..(H51,M50)..WT197904-198408

47346TUBE, WHEEL CYLINDER, REAR LH

main47342-36050iBU40,41,5#198204-198408

main47345-36010iBU20,30..ST197708-198105

main47345-36011iBU20,22..ST198105-198408

main47345-36020iBU20..T3..03S..WT..ATP..DSL;BU2#,30,31,32,34,35,36,37,45,46..H50197708-198408

main47345-36030iBU20,22,30,33,35,36,37..(H51,M50)..WT197904-198408

47354BRACKET, FRONT FLEXIBLE HOSE

main47354-36010iBU2#,30,31,32,33,34197708-198408

main47354-36020iBU35,36,37,4#,5#198008-198408

47388PROTECTOR, BRAKE TUBE, LOWER

main47388-36010iBU2#,30,31,32197708-198302

9048001054

main90480-01054

9161140820

main91611-40820

9165140825

main91651-40825

9411040800

main94110-40800

9699110080

main96991-10080

9699112080

main96991-12080

28 parts on this diagram · 8 diagrams in section
