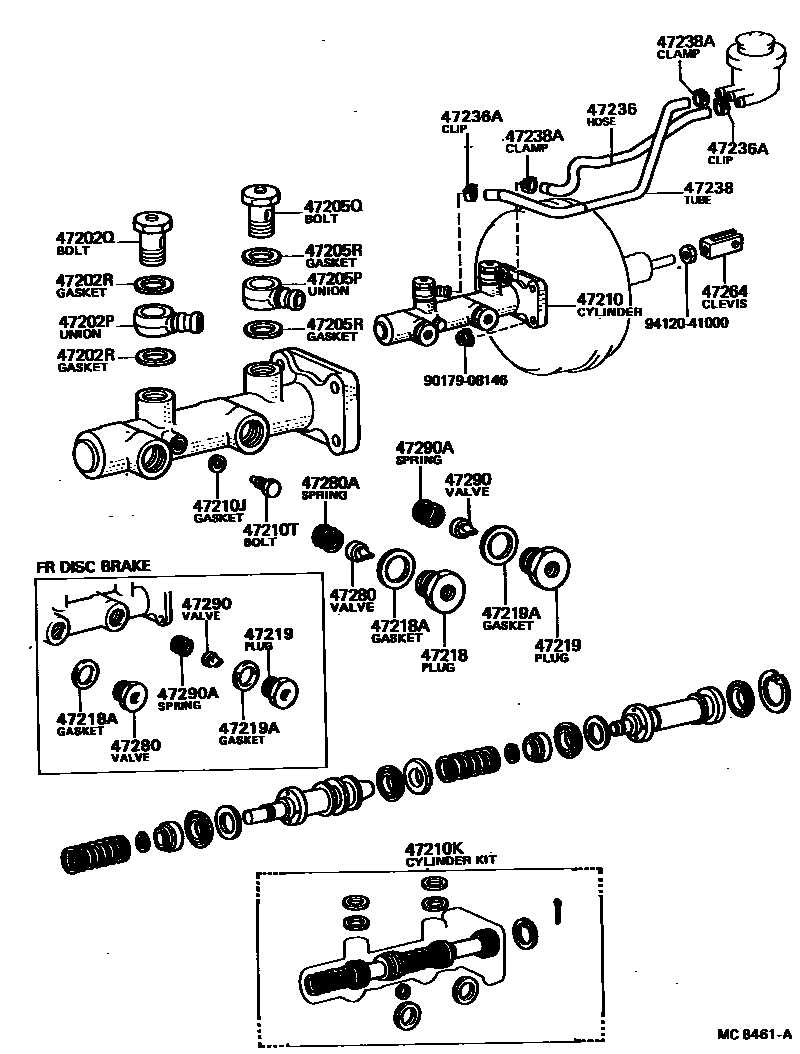

BRAKE MASTER CYLINDER

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-13137iBU2#,3#,4#,5#197708-198408

47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90401-16002iBU2#,3#,4#,5#197708-198408

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-16044iBU2#,3#,45,46197708-198408

main90430-16242iBU40,41,5#198204-198408

47205PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90405-13137iBU2#,3#,4#,5#197708-198408

47205QBOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE)

main90401-16002iBU2#,3#,4#,5#197708-198408

47205RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90430-16044iBU2#,3#,45,46197708-198408

main90430-16242iBU40,41,5#198204-198408

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-36050iBU2#,3#197708-198408

main47201-36110iBU40,41,5#198204-198408

main47201-36120iBU36,37,45,46198204-198408

main47201-36130iBU36,37..H50..20T198204-198309

FR DISC BRAKE

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iBU2#,3#,4#,5#197708-198408

47210KCYLINDER KIT, BRAKE MASTER

main04493-36020iBU2#,3#197708-198408

main04493-36040iBU36,37,45,46198204-198408

sub04493-36050

main04493-36050iBU36,37..H50..20T198204-198408

FR DISC BRAKE

main04493-36060iBU40,41,5#198204-198408

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iBU2#,3#,4#,5#197708-198408

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-36030iBU2#,3#,4#,5#197708-198408

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-11001iBU2#,3#,4#,5#197708-198408

47219PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)

main47218-36030iBU2#,3#,4#,5#197708-198408

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-11001iBU2#,3#,4#,5#197708-198408

47236TUBE, RESERVOIR BRAKE

main47234-36050iBU2#,3#197708-198008

main47234-36051iBU2#,30,32,33,34198008-198408

main47234-36070iBU35,36,37,4#,5#198008-198408

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16141iBU2#,3#,4#,5#197708-198408

47238HOSE, MASTER CYLINDER BRIDGE

main47235-36050iBU2#,3#197708-198008

main47235-36051iBU2#,30,32,33,34198008-198408

main47235-36070iBU35,36,37,4#,5#198008-198408

47238ACLAMP, HOSE(FOR MASTER CYLINDER BRIDGE HOSE)

main90467-16141iBU2#,3#,4#,5#197708-198408

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-35010iBU2#,3#,4#,5#197708-198408

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-36010iBU36,37..H50..20T198204-198309

FR DISC BRAKE

sub47218-36060

main47281-30020iBU2#,3#,4#,5#197708-198408

47280ASPRING, COMPRESSION

main90504-05003iBU2#,3#,4#,5#197708-198408

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47281-30020iBU2#,3#,4#,5#197708-198408

47290ASPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE)

main90504-05003iBU2#,3#,4#,5#197708-198408

9017908146

main90179-08146

9412041000

main94120-41000

25 parts on this diagram · 1 diagram in section
