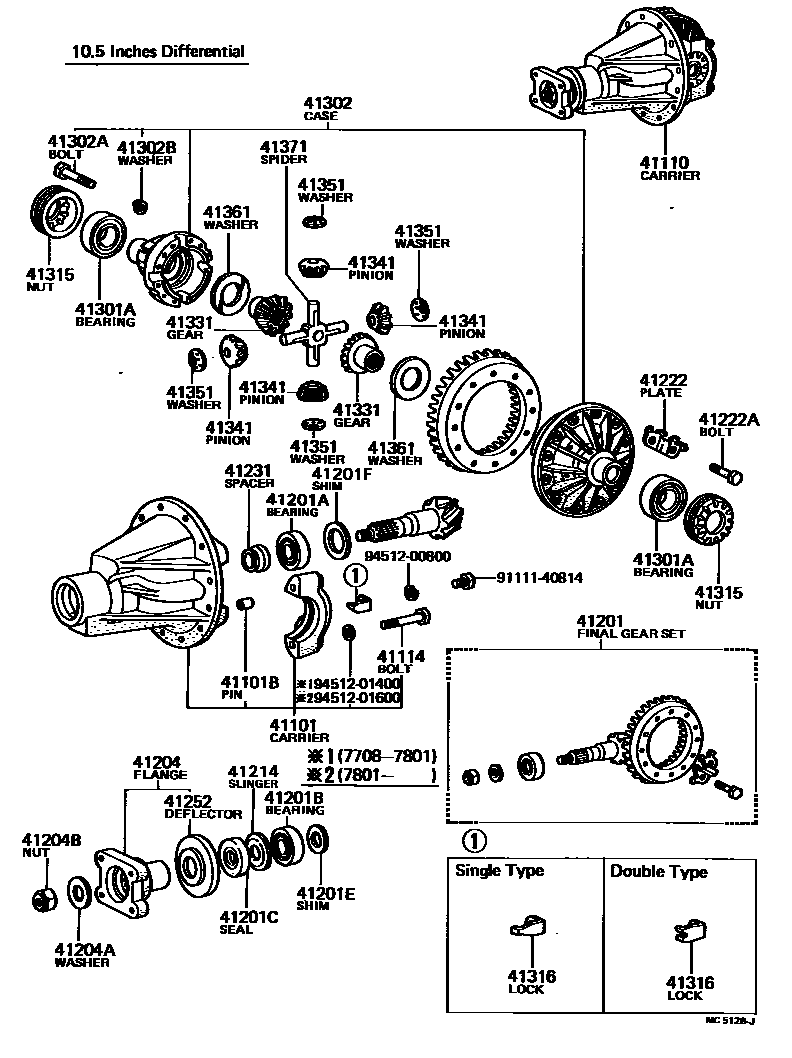

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-36030iBU2#,3#,45,46197708-198408

sub41101-37010

main41101-36040iBU40,41,5#198204-198408

41101BPIN, RING (FOR REAR DIFFERENTIAL CARRIER)

main90253-19001×4iBU20,30197708-197801

ID=14.2 OD=18.5

main90253-21001×4iBU2#,3#,45,46197801-198408

ID=16.2 OD=20.5

main90253-22002×4iBU40,41,5#198204-198408

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-36230iBU20..T2197708-197904

R=39:8=4.875

main41110-36240iBU20..HRF,SRF,TW1,TW2197708-198008

R=39:7=5.571,*AXC=L264

main41110-36250iBU21,23..DM1,DM4198204-198408

R=35:6=5.833,*AXC=L194

main41110-36260iBU20..DM1197904-198204

R=37:6=6.167,*AXC=L204

main41110-36280iBU32,34;BU21,23,36,37..TB..H50..20T198204-198408

R=41:8=5.125

main41110-36290iBU20,30,35..TB..H50..20T198008-198204

R=43:8=5.375

main41110-36310iBU40,41,5#198204-198408

R=39:6=6.500

main41110-36320iBU40,41,5#198204-198408

R=41:6=6.833

main41110-36350iBU37..275,30T198302-198408

R=6.167,W/H50S TRANSMISSION

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-14005×4iBU20,30197708-197801

*14-1.5PX85.5-25

main90101-16005×4iBU2#,3#,45,46197801-198408

*16-1.5PX86-26

sub90105-16022

main90105-16009×4iBU40,41,5#198204-198408

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29315iBU32,34;BU21,23,36,37..TB..H50..20T198204-198408

sub41201-39825

main41201-39305iBU20..T2197708-197904

N=39:8

sub41201-39306

main41201-39315iBU21,23..275;BU21,23..DM3;BU21,23..BTP,FTP198204-198408

sub41201-39605

main41201-39325iBU21,23..DM1,DM4198204-198408

N=35:6

sub41201-39326

main41201-39335iBU20..DM1197904-198204

sub41201-39785

main41201-39455iBU20,30,35..TB..H50..20T198008-198204

sub41201-39525

main41201-39495iBU40,41,5#198204-198408

sub04004-16537

main41201-39505iBU40,41,5#198204-198408

sub04004-48237

main41201-39595iBU37..275,30T198302-198408

N=37:6,W/H50S TRANSMISSION

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-40001iBU2#,3#,45,46197708-198408

sub90366-40100

main90366-49001iBU40,41,5#198204-198408

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-35023iBU2#,3#,45,46197708-198408

main90366-45001iBU40,41,5#198204-198408

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-48135iBU2#,3#,45,46197708-198408

sub90311-48019

main90311-58002iBU40,41,5#198204-198408

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-35019iBU2#,3#,45,46197708-198408

main90564-35020iBU2#,3#,45,46197708-198408

main90564-35021iBU2#,3#,45,46197708-198408

main90564-35022iBU2#,3#,45,46197708-198408

main90564-35023iBU2#,3#,45,46197708-198408

main90564-35024iBU2#,3#,45,46197708-198408

main90564-35025iBU2#,3#,45,46197708-198408

main90564-35026iBU2#,3#,45,46197708-198408

main90564-35027iBU2#,3#,45,46197708-198408

main90564-35028iBU2#,3#,45,46197708-198408

main90564-35029iBU2#,3#,45,46197708-198408

main90564-35030iBU2#,3#,45,46197708-198408

main90564-35031iBU2#,3#,45,46197708-198408

main90564-35032iBU2#,3#,45,46197708-198408

main90564-35033iBU2#,3#,45,46197708-198408

main90564-35034iBU2#,3#,45,46197708-198408

main90564-35035iBU2#,3#,45,46197708-198408

main90564-45020iBU40,41,5#198204-198408

main90564-45021iBU40,41,5#198204-198408

main90564-45022iBU40,41,5#198204-198408

main90564-45023iBU40,41,5#198204-198408

main90564-45024iBU40,41,5#198204-198408

main90564-45025iBU40,41,5#198204-198408

main90564-45026iBU40,41,5#198204-198408

main90564-45027iBU40,41,5#198204-198408

main90564-45028iBU40,41,5#198204-198408

main90564-45029iBU40,41,5#198204-198408

main90564-45030iBU40,41,5#198204-198408

main90564-45031iBU40,41,5#198204-198408

main90564-45032iBU40,41,5#198204-198408

main90564-45033iBU40,41,5#198204-198408

main90564-45034iBU40,41,5#198204-198408

main90564-45035iBU40,41,5#198204-198408

main90564-45036iBU40,41,5#198204-198408

main90564-45037iBU40,41,5#198204-198408

main90564-45038iBU40,41,5#198204-198408

main90564-45039iBU40,41,5#198204-198408

main90564-45046iBU41,51198311-198408

main90564-45047iBU41,51198311-198408

main90564-45048iBU41,51198311-198408

main90564-45049iBU41,51198311-198408

main90564-45050iBU41,51198311-198408

41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)

main90201-40551iBU2#,3#,45,46197708-198408

sub90564-40004

main90201-40552iBU2#,3#,45,46197708-198408

sub90564-40007

main90201-40553iBU2#,3#,45,46197708-198408

sub90564-40009

main90201-40554iBU2#,3#,45,46197708-198408

sub90564-40011

main90201-40555iBU2#,3#,45,46197708-198408

sub90564-40013

main90201-40556iBU2#,3#,45,46197708-198408

sub90564-40015

main90201-40557iBU2#,3#,45,46197708-198408

sub90564-40017

main90201-40558iBU2#,3#,45,46197708-198408

sub90564-40019

main90201-40559iBU2#,3#,45,46197708-198408

sub90564-40021

main90201-40560iBU2#,3#,45,46197708-198408

sub90564-40023

main90201-40561iBU2#,3#,45,46197708-198408

sub90564-40025

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-36031iBU2#,3#197708-198010

main41204-36032iBU2#,3#,45,46198010-198408

main41204-36040iBU40,41,5#198204-198408

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-23002iBU2#,3#,45,46197708-198408

41204BNUT (FOR REAR DRIVE PINION)

main90179-22003iBU2#,3#,45,46197708-198408

main90179-24001iBU40,41,5#198204-198408

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-36010iBU2#,3#,45,46198010-198408

sub41214-36030

main41214-36020iBU40,41,5#198204-198408

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-36020×6iBU2#,3#,45,46197708-198408

main41222-36030×6iBU40,41,5#198204-198408

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-14315×12iBU2#,3#,45,46197708-198408

main90101-16015×12iBU40,41,5#198204-198408

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-36040iBU2#,3#,45,46197708-198408

main41231-36050iBU40,41,5#198204-198408

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-36010iBU2#,3#,45,46197708-198408

sub41252-37020

main41252-36020iBU40,41,5#198204-198408

sub41252-37030

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-60001×2iBU40,41,5#198204-198408

main90368-52043×2iBU2#,3#,45,46197708-198408

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-36030iBU2#,3#,45,46197708-198408

main41301-36040iBU40,41,5#198204-198408

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90101-12020×12iBU2#,3#,45,46197708-198408

sub90105-12087

main90105-12047×12iBU40,41,5#198204-198408

41302BWASHER, SPRING(FOR REAR DIFFERENTIAL CASE)

main90201-12007×12iBU2#,3#,45,46197708-198408

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-36011×2iBU2#,3#,45,46197708-198408

main41315-36020×2iBU40,41,5#198204-198408

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-36011×2iBU2#,3#,45,46197708-198408

1 LOCK

main41316-36020×2iBU40,41,5#198204-198408

1 LOCK

main41317-36011×2iBU2#,3#,45,46197708-198408

2 LOCK

main41317-36020×2iBU40,41,5#198204-198408

2 LOCK

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-36020iBU2#,3#,45,46197708-198408

main41331-36030×2iBU40,41,5#198204-198308

main41331-36031×2iBU41,51198308-198408

41341PINION, REAR DIFFERENTIAL

main41341-36010×4iBU40,41,5#198204-198308

main41341-36011×4iBU41,51198308-198408

main41341-55012×4iBU2#,3#,45,46197708-198408

sub41341-55013

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-35011×4iBU2#,3#,45,46197708-198408

main41351-36010×4iBU40,41,5#198204-198408

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-36010×2iBU40,41,5#198204-198408

main41361-36020×2iBU40,41,5#198204-198408

main41361-36030×2iBU40,41,5#198204-198408

main41361-36040×2iBU40,41,5#198204-198408

main41361-60010×2iBU2#,3#,45,46197708-198408

sub41361-60011

main41361-60020×2iBU2#,3#,45,46197708-198408

sub41361-60021

main41361-60030×2iBU2#,3#,45,46197708-198408

sub41361-60031

main41361-60040×2iBU2#,3#,45,46197708-198408

sub41361-60041

41371SPIDER, REAR DIFFERENTIAL

main41371-36011iBU2#,3#,45,46197708-198408

main41371-36020iBU40,41,5#198204-198408

9111140814

main91111-40814

9451200800

main94512-00800

9451201400

main94512-01400

9451201600

main94512-01600

33 parts on this diagram · 3 diagrams in section
