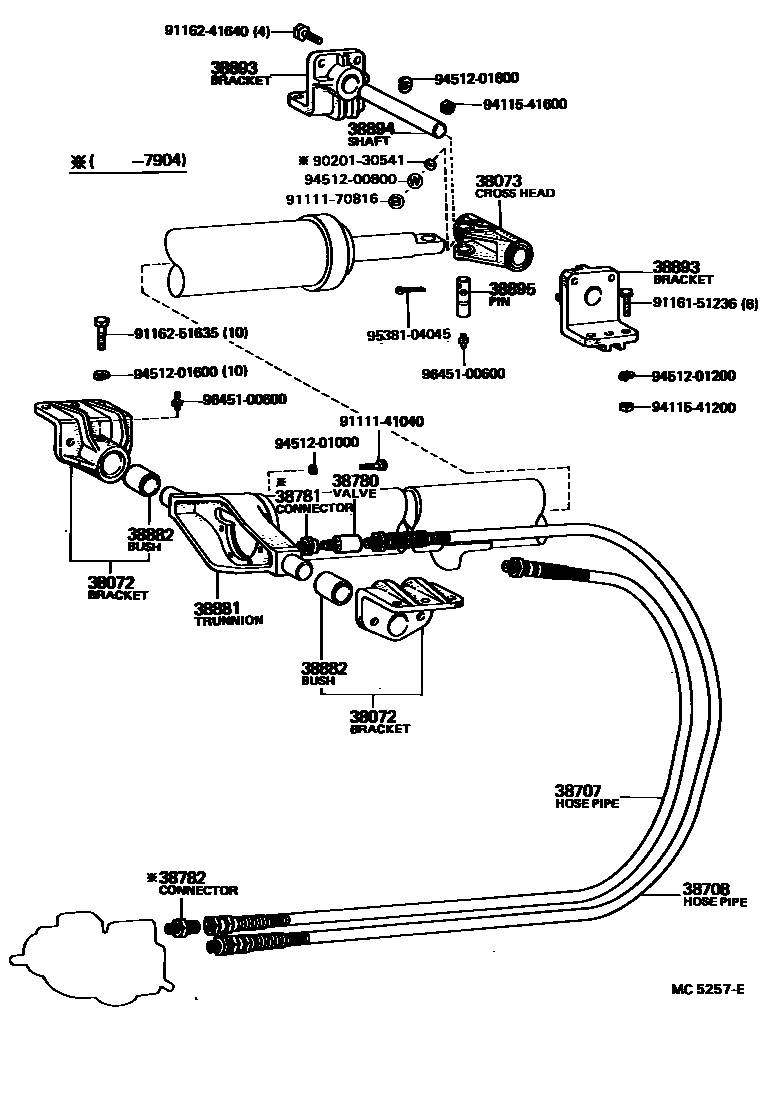

HOIST CYLINDER TRUNNION & LIFT ARM

0001 1 0002 1 0003 1 0004 1

38072BRACKET SUB-ASSY, TRUNNION

main38072-96304×2iBU20..TSK197708-197904

main38072-96305×2iBU20,21,23..TSK197904-198408

main38883-93101×2iBU20,21,23..DM1..KKT197708-198408

38073CROSSHEAD SUB-ASSY

main38073-96302iBU20,21,23..TSK197708-198408

38707HOSE SUB-ASSY, SUCTION

main38707-96306iBU20,21,23..TSK197708-198408

main38709-93102iBU20,21,23..DM1..KKT197708-198408

38708HOSE SUB-ASSY, DELIVERY

main38703-93102iBU20..KKT197708-197809

main38703-93110iBU20,21,23..DM1..KKT197809-198408

main38708-96305iBU20,21,23..TSK197708-198408

38780VALVE ASSY, SPEED CONTROL

main38780-96301iBU20,21,23..TSK197708-198408

38781CONNECTOR (FOR HOIST CYLINDER TRUNNION)

main38781-96302iBU20..TSK197708-197904

38782CONNECTOR (FOR HOIST CYLINDER TRUNNION)

main38782-96301iBU20..TSK197708-197904

38881TRUNNION, HOIST CYLINDER

main38881-96307iBU20,21,23..TSK197708-198408

38882BUSH, TRUNNION

main38882-96304iBU20,21,23..TSK197708-198408

38893BRACKET, CROSSHEAD

main38893-96301×2iBU20..TSK197708-197904

main38893-96302×2iBU20,21,23..TSK197904-198408

38894SHAFT, CROSSHEAD

main38894-96302iBU20,21,23..TSK197708-198408

38895PIN, CROSSHEAD

main38895-96302iBU20..TSK197708-198204

main38895-96303iBU21,23..TSK198204-198408

9020130541

main90201-30541

9111141040

main91111-41040

9111170816

main91111-70816

9116151236

main91161-51236

9116241640

main91162-41640

9116251635

main91162-51635

9411541200

main94115-41200

9411541600

main94115-41600

9451200800

main94512-00800

9451201000

main94512-01000

9451201200

main94512-01200

9451201600

main94512-01600

9538104045

main95381-04045

9645100600

main96451-00600
