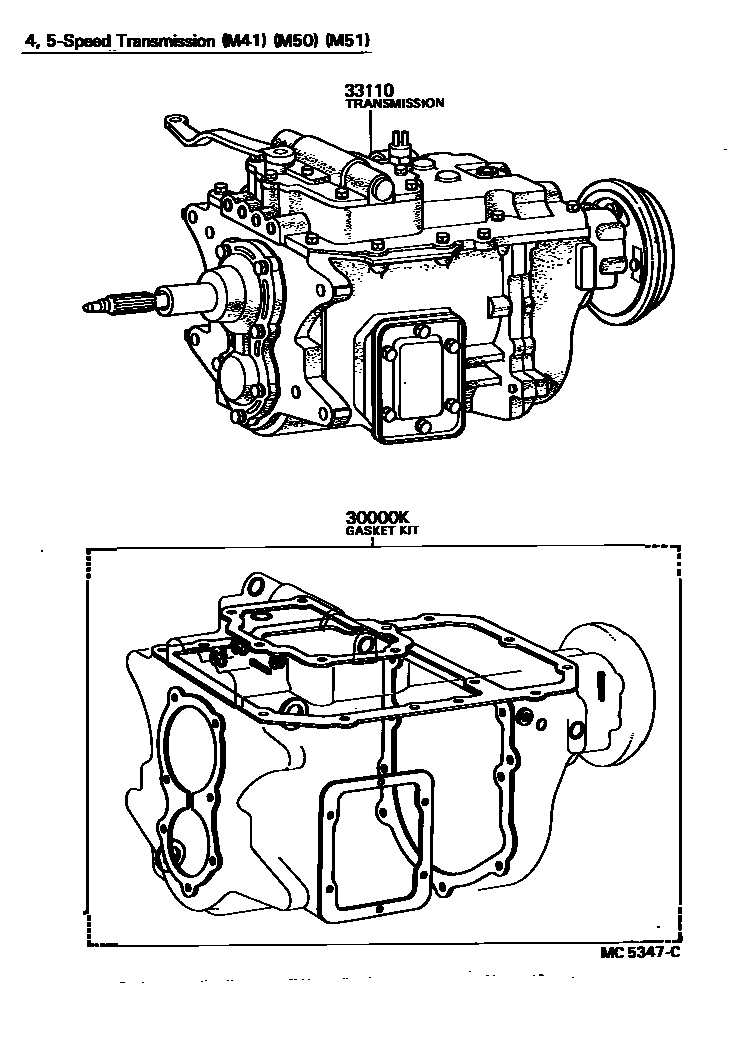

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1 0003 1

30000KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-36023iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

main04331-36041iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

main04331-36050iBU37..275,30T198302-198408

W/H50S TRANSMISSION

33110TRANSMISSION ASSY, MANUAL

main33030-36030iBU30..06S197708-197904

SMG=4,W/O EXHAUST BRAKE

main33030-36031iBU30..06S197904-197912

SMG=4,W/O EXHAUST BRAKE

main33030-36040iBU30..WT197810-197904

SMG=4

main33030-36041iBU20..CTP197904-197912

SMG=4

main33030-36050iBU20..T3..WT197708-197904

SMG=5

main33030-36051iBU20..BTP197904-197912

SMG=5

main33030-36220iBU20..ST..20T197708-197804

SMG R=18:5

main33030-36220iBU30..ST;BU20..T2197708-197804

SMG R=19:5

main33030-36220iBU20..T2197804-197904

SMG=5

main33030-36221iBU20,30..ST..20T197904-197912

SMG=5

main33030-36221iBU20..DTP197904-197912

SMG=5,W/EXHAUST BRAKE

main33030-36230iBU20..HRF,SRF,TW1197804-197904

SMG=5

main33030-36230iBU20..TS..06S197708-197804

SMG R=18:5

main33030-36231iBU20..HRF,SRF,TW1,TW2197904-197912

SMG=5

main33110-3B070iBU30..M50;BU20..M50..WT..20T197912-198006

SMG R=19:5

main33110-3B071iBU30..M50;BU20..M50..WT..20T198006-198008

SMG R=19:5

main33110-3B072iBU20,30..M50..WT..20T198008-198204

SMG R=19:5

main33110-3B072iBU20..06S..WT198008-198204

SMG R=19:5,W/EXHAUST BRAKE

main33110-3B080iBU20..ST..20T197912-198006

SMG R=18:5

main33110-3B081iBU20..DTP198006-198008

SMG R=18:5

main33110-3B082iBU20..DTP198008-198204

SMG R=18:5

main33110-3B082iBU20..DTP198008-198204

SMG R=18:5,W/EXHAUST BRAKE

main33110-3B110iBU20..HRF,SRF,TW1197912-198006

SMG R=18:5

main33110-3B111iBU20..HRF,SRF,TW1198006-198204

SMG R=18:5

main33110-3B120iBU20..06S..WT197912-198006

SMG R=19:5

main33110-3B121iBU20..06S..WT198006-198204

SMG R=19:5

main33110-3B510iBU30..06S197912-198008

SMG R=16:4

main33110-3B540iBU25;BU20..DM1;BU30..25T197912-198008

SMG R=17:4

main33110-3B542iBU20..DM1198008-198204

SMG R=17:4

main33110-3B550iBU30..06S;BU30..25T197912-198008

SMG R=16:4

main33110-3B550iBU20..CTP197912-198008

SMG R=16:4,W/EXHAUST BRAKE

main33110-3B552iBU20..275198008-198204

SMG R=16:4

main33110-3B560iBU30..H50..20T197912-198008

SMG R=16:4

main33110-3B562iBU35..H50198008-198204

SMG R=16:4,W/EXHAUST BRAKE

main33110-3B580iBU20..BTP197912-198008

SMG R=19:5

main33110-3B590iBU30..H50..03S197912-198008

SMG R=18:5

main33110-3B592iBU20..TB..H50..20T198008-198204

SMG R=18:5

main33110-3B600iBU31197912-198008

SMG R=19:5

main33110-3B602iBU36198009-198204

SMG R=19:5

main33110-3B690iBU20..275197912-198008

SMG R=16:4

main33110-3B781iBU20..BTP198008-198204

SMG R=19:5

main33110-3B791iBU30..06S198008-198204

SMG R=18:5,W/EXHAUST BRAKE

main33110-3B800iBU30..06S198008-198204

SMG R=18:5

main33110-3B812iBU35..M50198008-198204

SMG R=19:5

main33110-3B831iBU35..H50198008-198204

SMG R=18:5

main33110-3B841iBU36198009-198204

SMG R=18:5

main33110-3B891iBU20..FTP198008-198204

SMG R=17:4

main33120-36300iBU2#..KKT,TSK197708-197810

SMG R=17:4

main33120-36310iBU30..25T197708-197810

SMG R=16:4

main33120-36310iBU30..06S197708-197810

SMG R=16:4,W/EXHAUST BRAKE

main33120-3B010iBU40,41,5#198204-198403

SMG R=17:4

main33120-3B020iBU40,41,5#198204-198403

SMG R=16:4

main33120-3B250iBU20,22..TS..06S198204-198403

SMG R=18:5

main33120-3B260iBU20,22..TS..06S198204-198403

SMG R=18:5

main33120-3B260iBU20,22..TS..06S198204-198403

SMG R=18:5,W/EXHAUST BRAKE

main33120-3B270iBU20,22,30,33..M50..WT198204-198403

SMG R=19:5

main33120-3B280iBU20,22..V198204-198403

SMG R=18:5

main33120-3B290iBU20,22..V198204-198403

SMG R=18:5,W/EXHAUST BRAKE

main33120-3B490iBU20,22..H50198204-198403

SMG R=18:5

main33120-3B500iBU21,23..DM1,DM4198204-198403

SMG R=16:4

main33120-3B510iBU23..BTP;BU21..KKT..IV3;BU21,23..DM3..CBU198204-198403

SMG R=19:5

main33120-3B520iBU32,34..20T198204-198403

SMG R=17:5

main33120-3B530iBU21,23..275198204-198403

SMG R=19:5

main33120-3B540iBU21,23..FTP198204-198403

SMG R=18:5

main33120-3B550iBU32,34..06S198204-198403

SMG R=17:5

main33120-3B560iBU36,37..GTP198204-198403

SMG R=19:5

main33120-3B570iBU36,37..H50..20T198204-198403

SMG R=17:5

main33120-3B580iBU36,37..H51198204-198403

SMG R=19:5

main33120-3B590iBU36,37..275,30T198204-198403

SMG R=19:5

main33120-3B610iBU45,46198204-198403

SMG R=19:5

main33120-3B902iBU41,51;BU23..DM1,DM4198403-198408

main33120-3B904iBU2#,34,37,46..WT198403-198408

main33120-3B905iBU37..H51198403-198408

main33120-3B910iBU22..M50198403-198408

W/NEUTRAL SAFTY SWITCH

main33150-36010iBU37..275,30T198302-198408

H50S TRANSMISSION
