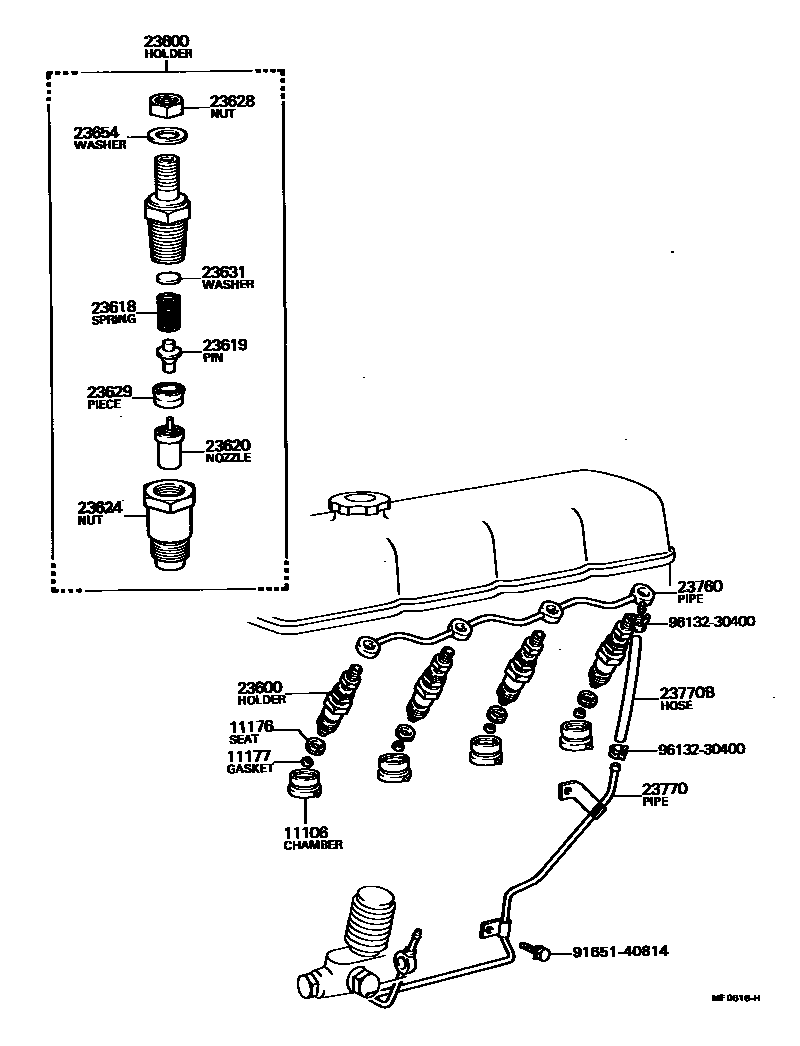

INJECTION NOZZLE

0001 1 0002 1

11106CHAMBER SUB-ASSY, COMBUSTION

main11106-56010×4iB,2B..BU20,22,25,30,31,33,35197708-198408

sub11106-56030

main11106-58010×4i3B..BU21,23,32,34,36,37,4#,5#198009-198408

11176SEAT, INJECTION NOZZLE

main11176-56010×4iB,2B,3B..BU2#,3#,4#,5#197708-198408

11177GASKET, INJECTION NOZZLE SEAT

main11177-56010×4iB,2B,3B..BU2#,3#,4#,5#197708-198408

23600HOLDER & NOZZLE SET, NOZZLE

main23600-56011×4iB,2B,3B..BU2#,3#,4#,50197708-198302

main23600-56020×4iB,3B..BU2#,3#,4#,51198302-198408

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-56010×4iB,2B,3B..BU2#,3#,4#,5#197708-198408

23619PIN, NOZZLE HOLDER PRESSURE

main23619-46010×4iB,2B,3B..BU2#,3#,4#,5#197708-198408

23620NOZZLE ASSY

main23620-54010×4iB,2B,3B..BU2#,3#,4#,50197708-198302

main23620-56020×4iB,3B..BU2#,3#,4#,51198302-198408

23624NUT, NOZZLE RETAINING

main23624-47011×4iB,2B,3B..BU2#,3#,4#,50197708-198302

main23624-54020×4iB,3B..BU2#,3#,4#,51198302-198408

sub23624-58080

23628NUT(FOR RING PACKING SETTING)

main23628-46010×4iB,2B,3B..BU2#,3#,4#,5#197708-198408

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-46010×4iB,2B,3B..BU2#,3#,4#,5#197708-198408

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23632-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23633-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23634-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23635-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23636-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23637-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23638-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23639-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23641-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23642-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23643-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23644-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23645-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23646-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23647-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23648-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23649-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23651-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main23652-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

23654WASHER(FOR RING PACKING)

main23654-46010×4iB,2B,3B..BU2#,3#,4#,5#197708-198408

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-56020iB,2B,3B..BU2#,3#197708-198204

main23760-56021iB,3B..BU2#,3#,4#,50198204-198208

main23760-56022iB,3B..BU2#,3#,4#,5#198208-198408

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-56020iB,2B..BU2#,3#197708-198004

main23770-56030iB,2B,3B..BU2#,3#,4#,50198004-198302

main23770-56040iB,3B..BU2#,3#,4#,51198302-198408

23770BHOSE, FUEL

main95331-04020iB,2B..BU2#,3#197708-198004

main95332-04020iB,2B,3B..BU2#,3#,4#,50198004-198302

sub95333-04020

9165140814

main91651-40814

9613230400

main96132-30400

17 parts on this diagram · 2 diagrams in section
