ALTERNATOR

0001 1 0002 1 0004 1

27020ALTERNATOR ASSY

main27020-56013iB,2B..BU2#,3#197708-198008

24V 15A

main27020-56032iB..BU20..T1..ATP; B..BU20..T3..TB..03S..CBU197709-197904

24V 20A

main27020-56100iB..BU20,22,30,33198204-198408

main27020-56110iB,3B..BU2#,3#,45,46198204-198408

main27020-57081iB,3B..BU35,36..H50..ATP; B..BU20..FTP;B..BU20..DM3..CBU;B..BU20..KKT..IV3;B..BU20..(T1,T2)..ATP198008-198204

24V 25A

main27020-57091iB,3B..BU20,3#198008-198204

24V 20A

27036TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR

main27036-56011iB,2B..BU2#,3#197708-198008

24V 15A,20A

main27036-57060i3B..BU40,41,5#; B..BU20,22,30,33198204-198408

24V 20A; 24V 25A

main27036-57080iB,3B..BU2#,3#,45,46198204-198408

24V 25A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-56011iB,2B..BU2#,3#197708-198008

24V 15A,20A

main27312-56070iB,3B..BU20,3#198008-198204

24V 20A,25A

main27312-57060iB,3B..BU2#,3#,45,46198204-198408

24V 20A,25A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-56010iB,2B..BU2#,3#197708-198008

24V 15A,20A

main27333-57060iB,3B..BU2#,3#,45,46198204-198408

24V 20A,25A

main27412-54040iB,3B..BU20,3#198008-198204

24V 20A,25A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-56011iB,2B..BU2#,3#197708-198008

24V 15A,20A

main27310-56110iB,3B..BU2#,3#,45,46198204-198408

24V 25A

main27310-56140iB..BU20,22,30,33198204-198408

24V 20A

main27310-57061iB,3B..BU20,3#198008-198204

24V 20A,25A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27314-56010iB,2B..BU2#,3#197708-198008

24V 15A,20A

main27412-57060iB,3B..BU2#,3#,45,46198204-198408

24V 20A,25A

main90099-19251iB,3B..BU20,3#198008-198204

24V 20A,25A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10082iB,2B..BU2#,3#197708-198008

24V 15A,20A

main90099-10120iB,3B..BU20,3#198008-198204

24V 20A,25A

main90099-10137iB,3B..BU2#,3#,45,46198204-198408

24V 20A,25A

27311FRAME, ALTERNATOR DRIVE END

main27311-56012iB,2B..BU2#,3#197708-198008

24V 15A,20A

27330ROTOR ASSY, ALTERNATOR

main27330-54050i3B..BU40,41,5#198204-198408

24V 25A

main27330-56010iB,2B..BU2#,3#197708-198008

24V 15A

main27330-56030iB..BU20..T1; B..BU20..T3..TB..03S197904-198008

24V 20A

main27330-56100iB..BU20,22,30,33198204-198408

24V 20A

main27330-56110iB,3B..BU2#,3#,45,46198204-198408

24V 25A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07103iB,3B..BU2#,3#,45,46198204-198408

24V 20A,25A

main90099-07108i3B..BU40,41,5#198204-198408

24V 25A

27350FRAME ASSY, RECTIFIER END

main27350-56013iB,2B..BU2#,3#197708-198008

24V 15A,20A

main27350-56110iB,3B..BU2#,3#,45,46198204-198408

24V 25A

main27350-56140iB..BU20,22,30,33198204-198408

24V 20A

main27350-57061iB,3B..BU20,3#198008-198204

24V 20A,25A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-56013i2B,3B..BU31,36197708-198204

24V 15A,20A,25A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-54020iB,3B..BU20,3#198008-198204

24V 20A,25A

main27353-56011iB,2B..BU2#,3#197708-198008

24V 15A,20A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-54020iB,3B..BU20,3#198008-198204

24V 20A,25A

main27356-56010iB,2B..BU2#,3#197708-198008

24V 15A,20A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-56011iB,2B..BU2#,3#197708-198008

24V 15A,20A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-57060iB,3B..BU20,3#198008-198204

24V 20A,25A

main27370-57080iB,3B..BU2#,3#,45,46198204-198408

24V 25A

main27370-60080iB,2B..BU2#,3#197708-198008

12V 35A,24V 15A,20A

27371BRUSH, ALTERNATOR

main27371-31011×2iB,2B..BU2#,3#197708-198008

12V 30A,35A,40A,24V 15A,20A

main27371-56070×2iB,3B..BU2#,3#,4#,5#198008-198408

24V 20A,25A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2iB,2B..BU2#,3#197708-198008

24V 15A,20A

main27372-56070×2iB,3B..BU20,3#198008-198204

24V 20A,25A

27410STATOR ASSY, ALTERNATOR

main27410-54030iB,3B..BU20,3#198008-198204

12V 20A

main27410-56010iB,2B..BU2#,3#197708-198008

24V 15A

main27410-56030iB,2B..BU3#..TB..5H..WT; B..BU20..(T2,TW2)..5H197709-198008

24V 20A

main27410-57020iB,3B..BU35,36..H50198008-198204

24V 25A

27411PULLEY, ALTERNATOR

main27411-56020iB,2B..BU2#,3#197708-198008

24V 15A,20A

main27411-57060iB,3B..BU2#,3#,45,46198204-198408

24V 20A,25A

main27411-57061iB,3B..BU20,3#198008-198204

24V 20A,25A

27411AKEY(FOR ALTERNATOR PULLEY)

main90097-00465iB,2B..BU2#,3#197708-198008

24V 15A,20A

27441FAN, ALTERNATOR

main27441-46031iB,2B..BU2#,3#197708-198008

24V 15A,20A

main27441-54040iB,3B..BU20,3#198008-198204

24V 20A,25A

main27441-56090iB,3B..BU2#,3#,45,46198204-198408

24V 20A,25A

27700AREGULATOR ASSY, GENERATOR

main27700-46020iB,2B..BU2#,3#197708-198008

24V

main27700-57040iB,3B..BU2#,3#,4#,5#198008-198408

24V

2737831011INSULATOR, ALTERNATOR, NO.1

main27378-31011

2738331011WASHER, ALTERNATER TERMINAL INSULATOR, NO.1

main27383-31011

2744546031

main27445-46031

2744556011

main27445-56011

2744656011CLIP, ALTERNATOR CORD

main27446-56011

9009220582

main90092-20582

9009900862

main90099-00862

9009900893

main90099-00893

9009901014

main90099-01014

9009901390

main90099-01390

9009902181

main90099-02181

9009905060

main90099-05060

9010110459

main90101-10459

9011908162

main90119-08162

9020110283

main90201-10283

9165140616

main91651-40616

9331914025

main93319-14025

9331915008

main93319-15008

9411041000

main94110-41000

9451101400

main94511-01400

9451201000

main94512-01000

9452100500

main94521-00500

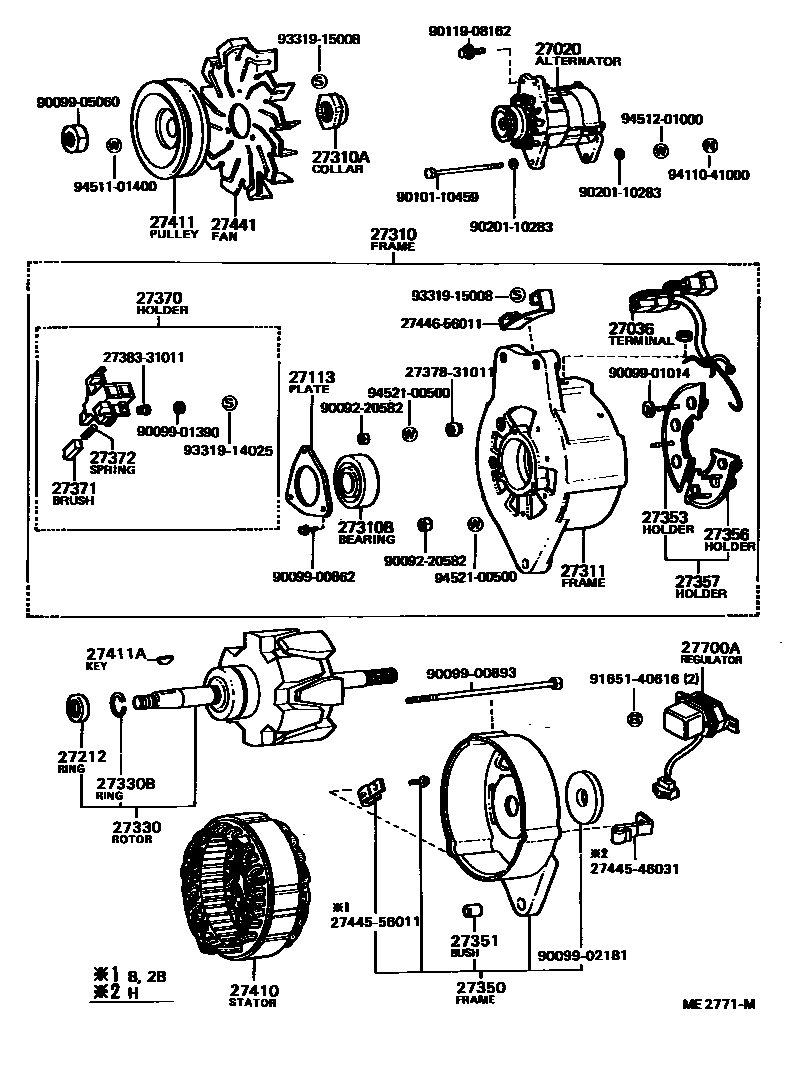

45 parts on this diagram · 3 diagrams in section
