Toyota 751120 — MANIFOLD

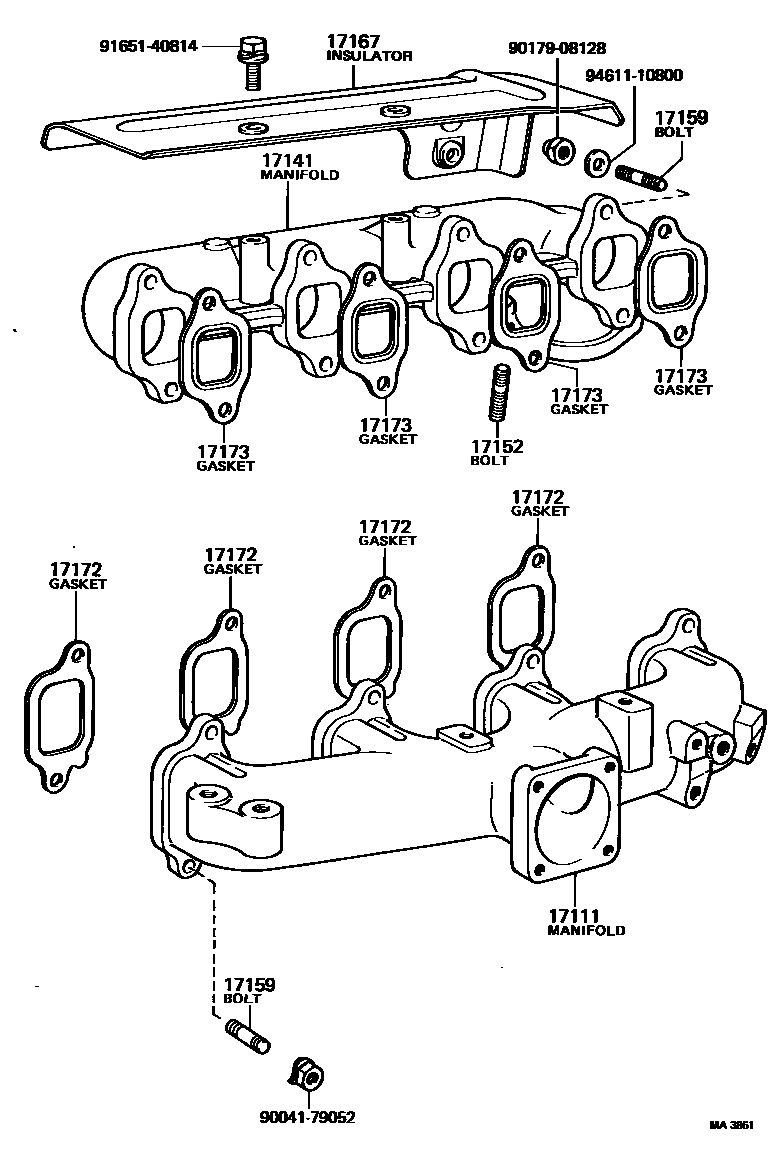

Parts diagram

17111MANIFOLD, INTAKE

17141MANIFOLD, EXHAUST

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

17172GASKET, MANIFOLD TO CYLINDER HEAD

17173GASKET, EXHAUST MANIFOLD TO HEAD

9004179052

9017908128

9165140814

9461110800

11 parts on this diagram · 2 diagrams in section

MANIFOLD for Toyota 751120

This section contains 16 genuine Toyota parts for the MANIFOLD system of the Toyota 751120. Key components include: MANIFOLD, INTAKE, MANIFOLD, EXHAUST, BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE), BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD), INSULATOR, EXHAUST MANIFOLD HEAT, NO.1.
