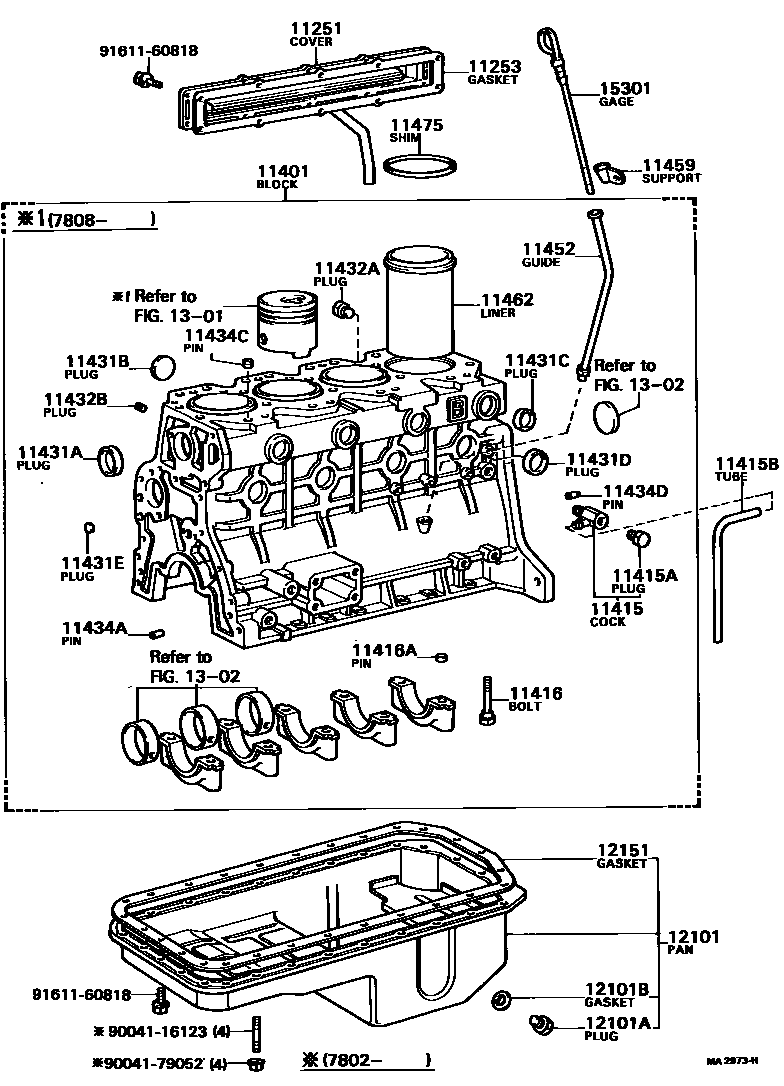

CYLINDER BLOCK

0001 1 0002 1

11251COVER, VALVE PUSH ROD

main11203-56020iB,2B..BU2#,3#197708-198008

main11203-56030iB,3B..BU2#,3#,4#,5#198008-198408

11253GASKET, VALVE PUSH ROD COVER

main11253-56010iB,2B,3B..BU2#,3#,4#,5#197708-198408

11401BLOCK SUB-ASSY, CYLINDER

main11401-59045iB..BU2#,30197708-197808

main11401-59046iB..BU2#,30197808-198008

main11401-59056i2B..BU31197904-198008

main11401-59075i3B..BU36198009-198201

main11401-59085iB..BU20,30,35198008-198201

main11401-59115i3B..BU21,32,36,4#,50198201-198209

main11401-59125iB..BU20,30,35198201-198209

main11401-59205iB..BU20,22,30,33198209-198403

main11401-59206iB..BU22,33198403-198408

main11401-59225i3B..BU21,23,32,34,36,37,4#,5#198209-198403

main11401-59226i3B..BU23,34,37,4#,51198403-198408

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09070iB,3B..BU2#,3#,4#,51198407-198408

main96431-03833iB,3B..BU2#,3#,4#,5#198008-198407

main96432-03833iB,2B..BU2#,3#197708-198008

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09072iB,3B..BU2#,3#,4#,51198407-198408

main96431-23814iB,2B,3B..BU2#,3#,4#,5#197708-198407

11415BHOSE(FOR DRAIN COCK)

main90446-12305iB,2B..BU2#,3#197708-198008

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90101-13001×10iB,3B..BU2#,3#,4#,5#198008-198408

*13-1.5PX78.5-20

main90910-02045×10iB,2B..BU2#,3#197708-198008

*12-1.25PX75-22

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-15005×14iB,2B..BU2#,3#197708-198008

L=7,OD=14.5

main90253-18002×10iB,3B..BU2#,3#,4#,5#198008-198408

L=10,OD=17.5

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-51032×2iB,2B,3B..BU2#,3#,4#,5#197708-198408

OD=51

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-12500×3iB,2B..BU2#,3#197708-198008

OD=25

main96411-12800×4iB,3B..BU2#,3#,4#,5#198008-198408

OD=28

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-13000×5iB,2B,3B..BU2#,3#,4#,5#197708-198408

OD=30

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-13500×4iB,2B,3B..BU2#,3#,4#,5#197708-198408

OD=35

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90330-17041×3iB,2B..BU2#,3#197708-198008

OD=17

main96411-11400×3iB,3B..BU2#,3#,4#,5#198008-198408

OD=14

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90043-45010×4iB,2B..BU2#,3#197708-198008

main90043-45027×4iB,3B..BU2#,3#,4#,5#198008-198408

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90043-44010iB,2B..BU2#,3#197708-198008

L=9,S=9

main90345-53001iB,3B..BU2#,3#,4#,5#198008-198408

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120×4iB,2B,3B..BU2#,3#,4#,5#197708-198408

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-15005×2iB,2B,3B..BU2#,3#,4#,5#197708-198408

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-08120×2iB,2B,3B..BU2#,3#,4#,5#197708-198408

11452GUIDE, OIL LEVEL GAGE

main11452-56020iB,2B..BU2#,3#197708-198008

main11452-56040iB,3B..BU2#,3#,4#,5#198008-198408

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-56040iB,2B,3B..BU2#,3#,4#,5#197708-198408

11462LINER, CYLINDER

main11461-56020×4iB..BU20,22,25,30,33,35197708-198408

main11461-57010×4i2B..BU31197904-198008

main11461-58010×4i3B..BU21,23,32,34,36,37,4#,5#198009-198408

11475SHIM, CYLINDER LINER

main11475-56020iB..BU20,22,25,30,33,35197708-198408

T=0.05

main11475-58010i3B..BU21,23,32,34,36,37,4#,5#198009-198408

T=0.05

main11476-56020iB..BU20,22,25,30,33,35197708-198408

T=0.10

main11476-58010i3B..BU21,23,32,34,36,37,4#,5#198009-198408

T=0.10

12101PAN SUB-ASSY, OIL

main12101-59055iB,2B..BU2#,3#..5H197904-197911

main12101-59056iB,2B..BU2#,3#..5H197911-198008

main12101-59065iB,2B..BU2#,3#197708-197911

W/OK MONITOR

main12101-59066iB,2B..BU2#,3#197911-198008

W/OK MONITOR

main12101-59145iB,3B..BU2#,3#,4#,5#198008-198408

12101APLUG(FOR OIL PAN DRAIN)

main90341-18089iB,2B,3B..BU2#,3#,4#,5#197911-198408

OD=18

main90341-25054iB,2B..BU2#,3#197708-197911

OD=25

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-18244iB,2B,3B..BU2#,3#,4#,5#197911-198408

ID=18

main90430-25013iB,2B..BU2#,3#197708-197911

ID=25

12151GASKET, OIL PAN

main12151-56020iB,2B..BU2#,3#197708-198003

main12151-56021iB,2B..BU2#,3#198003-198008

main12151-56030iB,3B..BU2#,3#,4#,5#198008-198408

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-56020iB,2B,3B..BU2#,3#,4#,5#197708-198408

9004116123

main90041-16123

9004179052

main90041-79052

9161160818

main91611-60818

32 parts on this diagram · 2 diagrams in section
