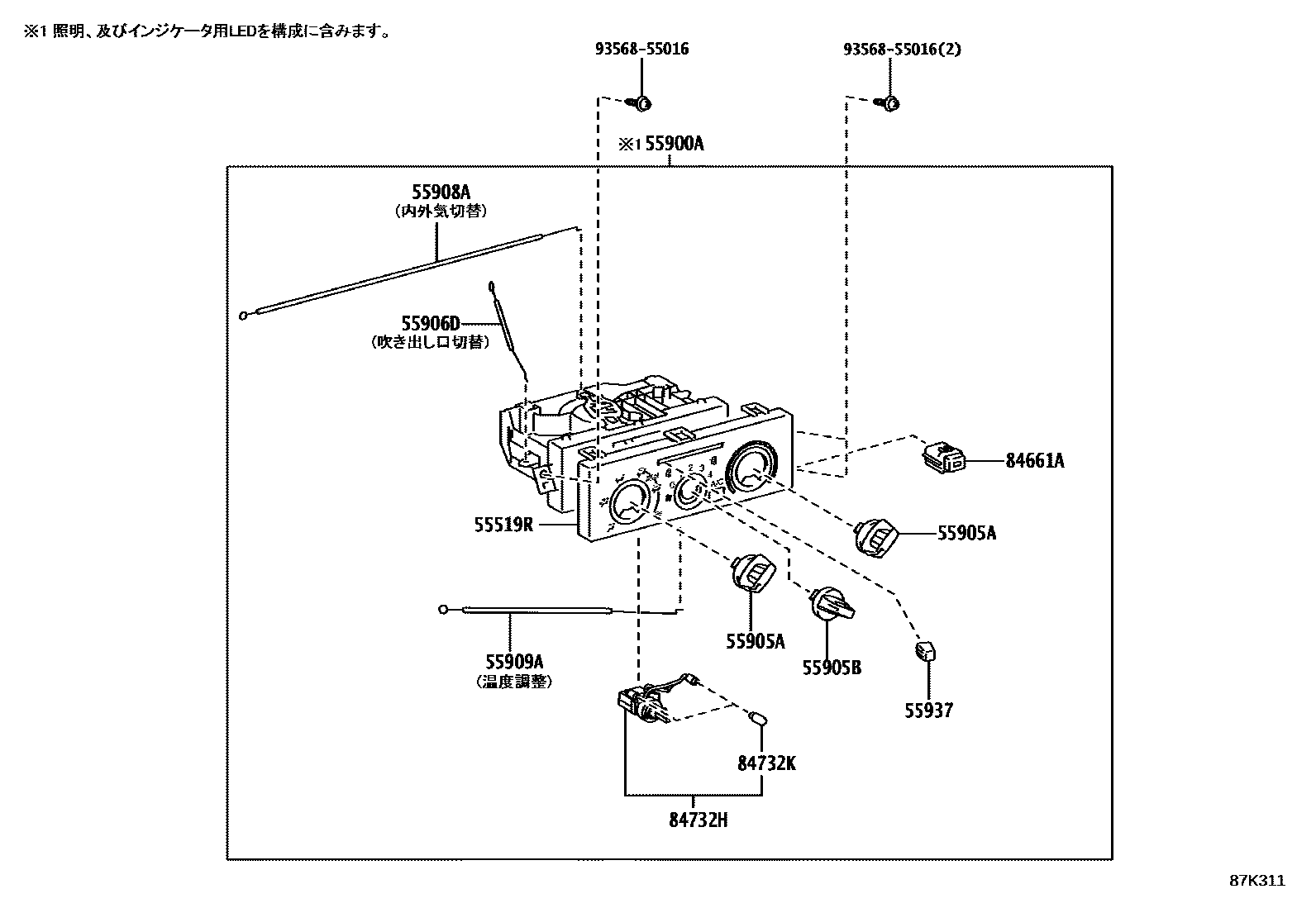

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1������������� 0002 1������(����) 0003 1������(��)

55519RPLATE, HEATER CONTROL NAME

main55519-37170iGDY231,281202108-202509

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-25130iGDY231,281202108-202509

55905AKNOB, HEATER CONTROL

main55905-37030×2iGDY231,281202108-202509

55905BKNOB, HEATER CONTROL, NO.2

main55905-37040iGDY231,281202108-202509

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-37090iGDY231,281202108-202509

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-37090iGDY231,281202108-202509

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-37100iGDY231,281202108-202509

55937KNOB, HEATER CONTROL LEVER

main55925-37010iGDY231,281202108-202509

84661AKNOB, COOLER CONTROL SWITCH

main84661-37010iGDY231,281202108-202509

84732HSWITCH, HEATER BLOWER

main84732-37080iGDY231,281202108-202509

84732KBULB, HEATER BLOWER SWITCH

main90010-11015×2iGDY231,281202108-202509

9356855016

main93568-55016

12 parts on this diagram · 3 diagrams in section
