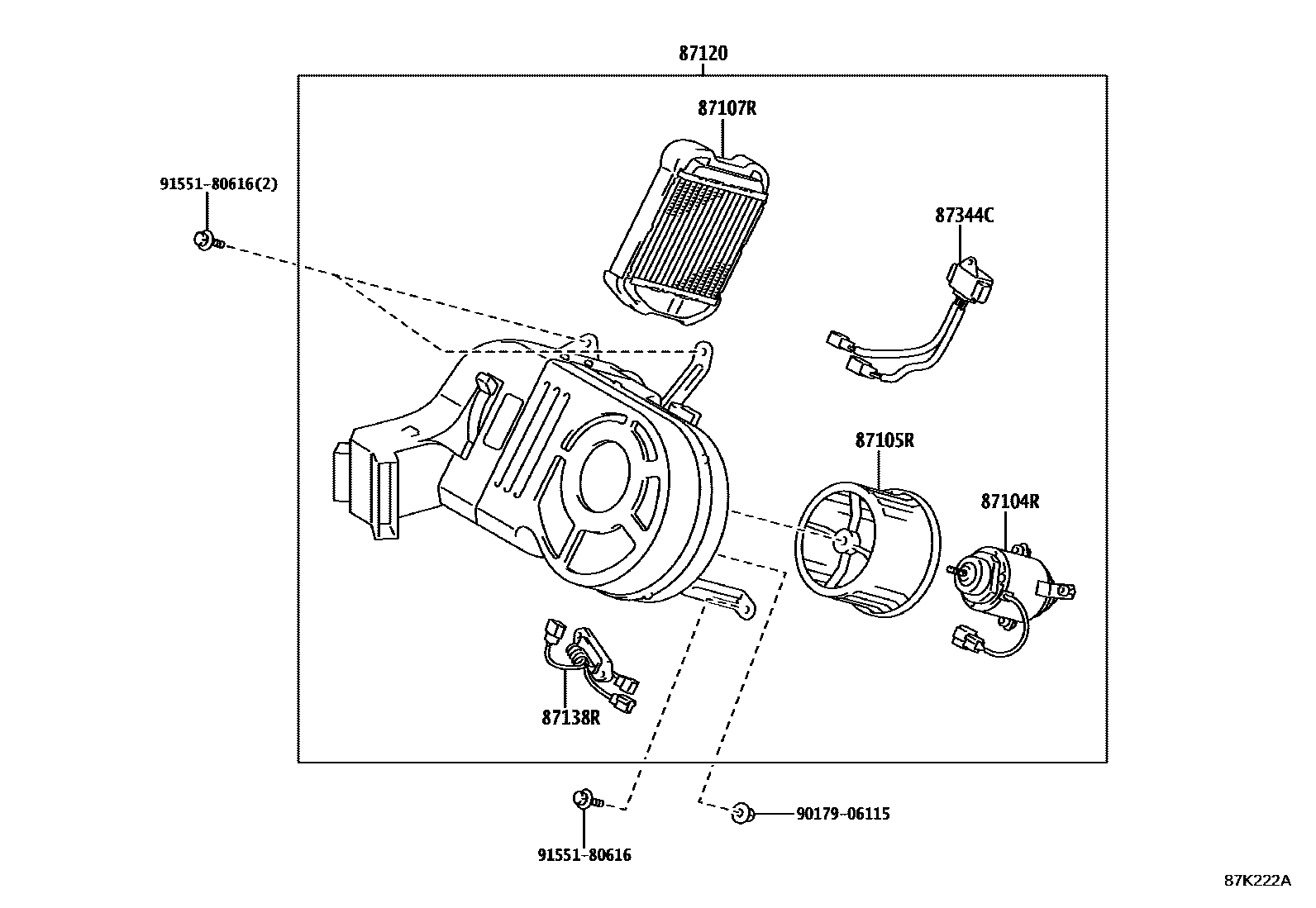

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87104RMOTOR SUB-ASSY, REAR HEATER BLOWER

main87104-87003iGDY231,281..DCB202108-202509

87105RFAN SUB-ASSY, REAR HEATER BLOWER

main87105-87002iGDY231,281..DCB202108-202509

87107RUNIT SUB-ASSY, REAR HEATER

main87107-60330iGDY231,281..DCB202108-202509

87120HEATER ASSY, REAR

main87110-25081iGDY231,281..DCB202108-202509

87138RRESISTOR, REAR HEATER BLOWER

main87138-37180iGDY231,281..DCB202108-202509

87344CWIRE, HEATER

main87387-25010iGDY231,281..DCB202108-202509

9017906115

main90179-06115

9155180616

main91551-80616

8 parts on this diagram · 1 diagram in section
