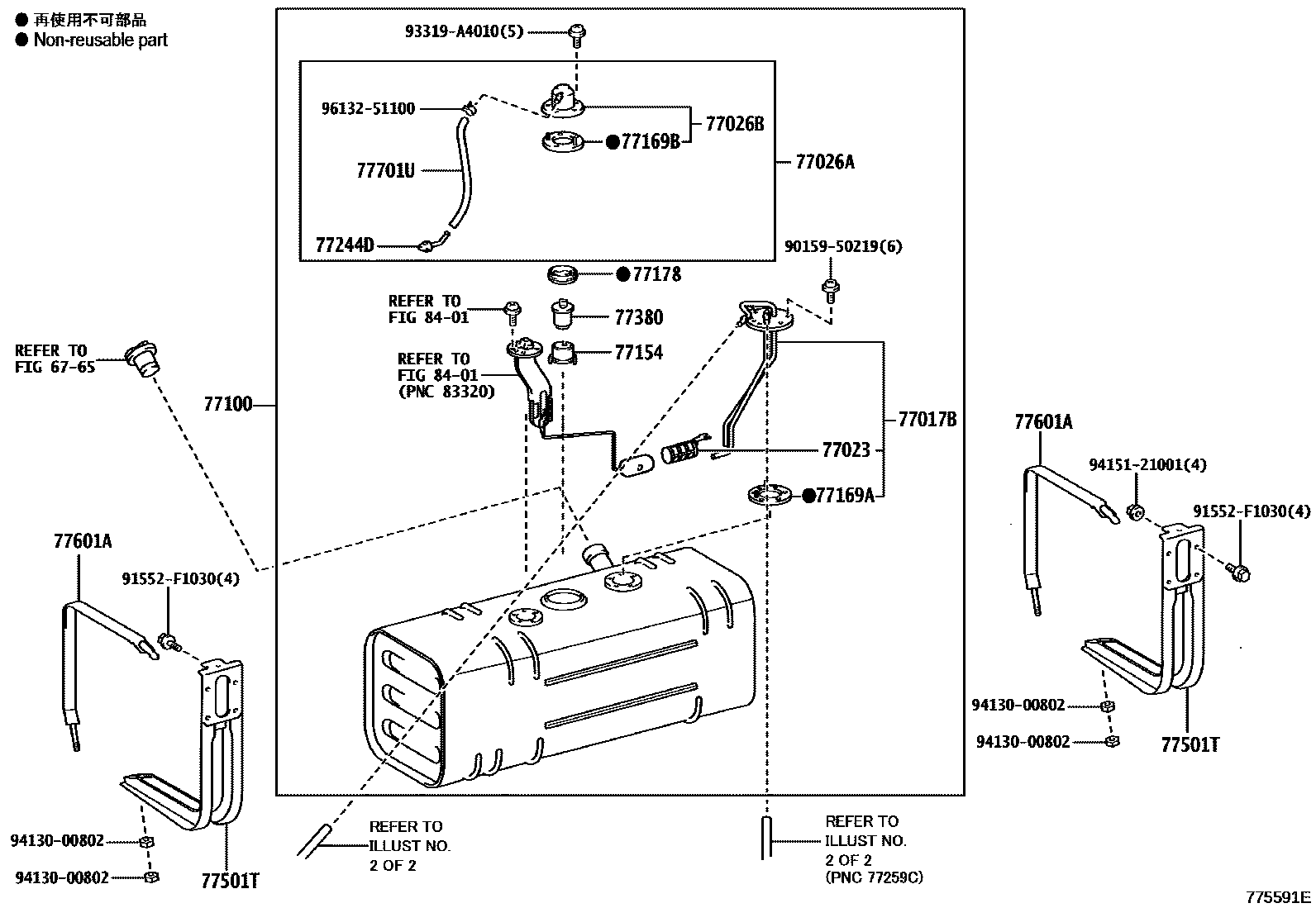

FUEL TANK & TUBE

0001 1�������� & ����������� 0002 1�������� & ����������� 0003 1�������� & ����������� 0004 1�������� & ����������� 0005 1���������� 0006 1����������

6765LOCK CYLINDER SET

→ Go to FIG 67-65

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-25200iGDY231,281202108-202509

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-36010iGDY231,281202108-202509

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-25010iGDY231,281202108-202509

main77026-25021iTRY230..CBU,IV3202108-202405

main77026-25051iTRY230..IV6202108-202405

main77026-25100iTRY230202405

77026BTUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-37010iGDY231,281202108-202509

77100TANK ASSY, FUEL

main77100-25500iGDY231,281..CBU,IV3202108-202509

main77100-25530iTRY230..CBU,IV3202108-202405

main77100-25560iGDY231,281..IV6202108-202509

main77100-25570iTRY230..IV6202108-202405

main77100-25600iTRY230..CBU,IV3202405

main77100-25610iTRY230..IV6202405

77154PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT

main77154-25010iGDY231,281202108-202509

77169AGASKET, FUEL SUCTION TUBE SET

main77169-32010iGDY231,281202108-202509

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-14020iGDY231,281202108-202509

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-44010iGDY231,281202108-202509

77244DTUBE, FUEL EVAPORATION BREATHER, NO.1

main77244-25030iTRY230..IV6202108-202509

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iTRY230..IV6202108-202509

77501TBRACKET SUB-ASSY, FUEL TANK

main77501-25190iTRY230202108-202509

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-25140iGDY231,281202108-202509

77701UHOSE, FUEL (FOR CHECK VALVE)

main95333-06030iGDY231,281202108-202509

main95337-06017iTRY230..CBU,IV3202108-202405

main95337-06065iTRY230..CBU,IV3202405

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950219

main90159-50219

91552F1030

main91552-F1030

93319A4010

main93319-A4010

9413000802

main94130-00802

9415121001

main94151-21001

9613251100

main96132-51100

22 parts on this diagram · 6 diagrams in section
