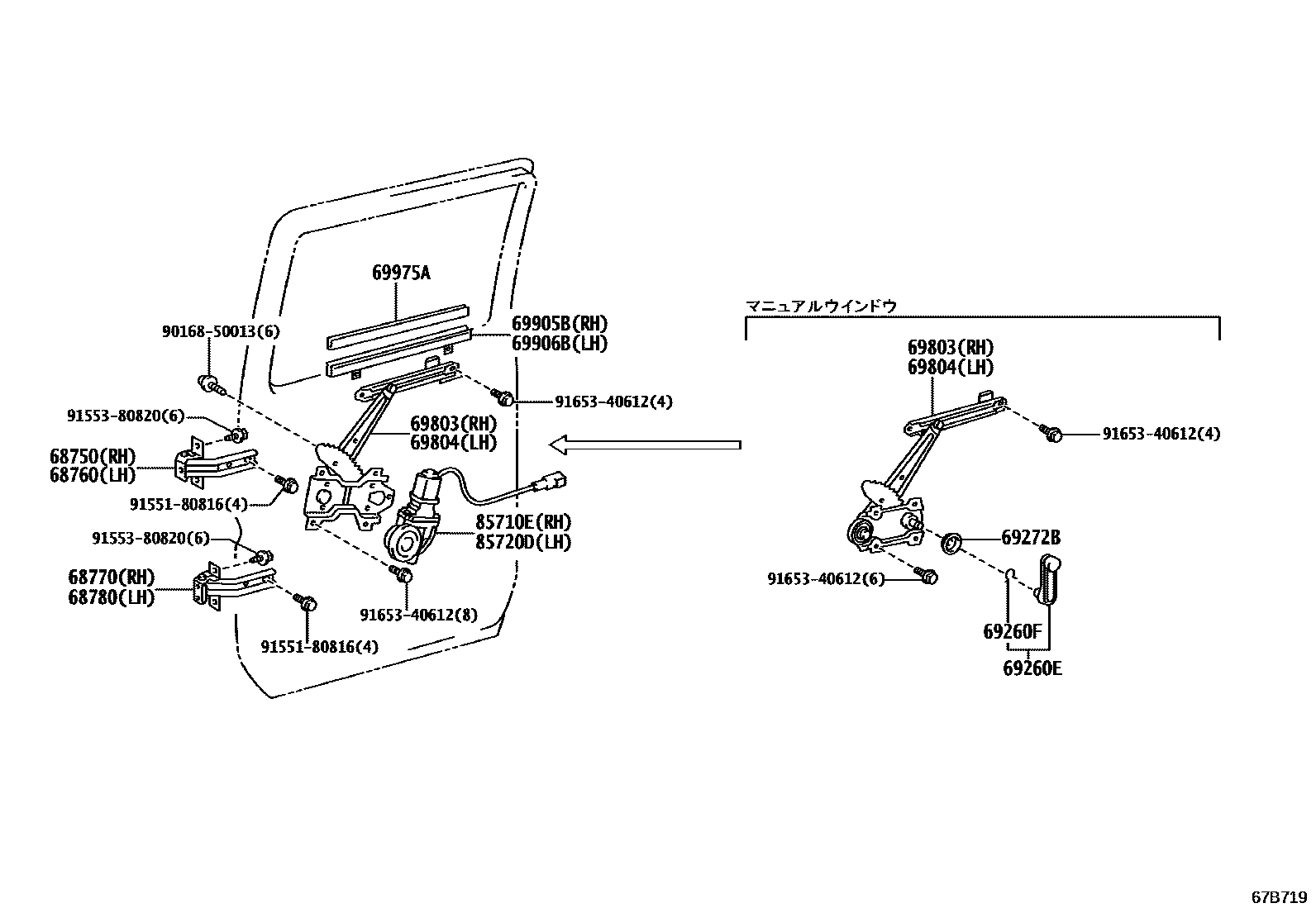

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-37010iGDY231,281..DCB202108-202509

68760HINGE ASSY, REAR DOOR, UPPER LH

main68750-37010iGDY231,281..DCB202108-202509

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-37012iGDY231,281..DCB202108-202509

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-37012iGDY231,281..DCB202108-202509

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-89104-B5×2iGDY231,281,TRY230..DCB202108-202305

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iGDY231,281,TRY230..DCB202108-202305

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010×2iGDY231,281,TRY230..DCB202108-202305

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-37020iTRY230..10T202108

main69830-37010iGDY231,281,TRY230..DCB202108-202305

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-37020iGDY231,281..DCB202108-202509

main69840-37010iGDY231,281,TRY230..DCB202108-202305

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-37010iGDY231,281..DCB202108-202509

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-37010iTRY230..10T202108

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-37010×2iGDY231,281..DCB202108-202509

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-37080iGDY231,281..DCB202108-202509

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-37060iGDY231,281..DCB202108-202509

9016850013

main90168-50013

9155180816

main91551-80816

9155380820

main91553-80820

9165340612

main91653-40612

18 parts on this diagram · 1 diagram in section
