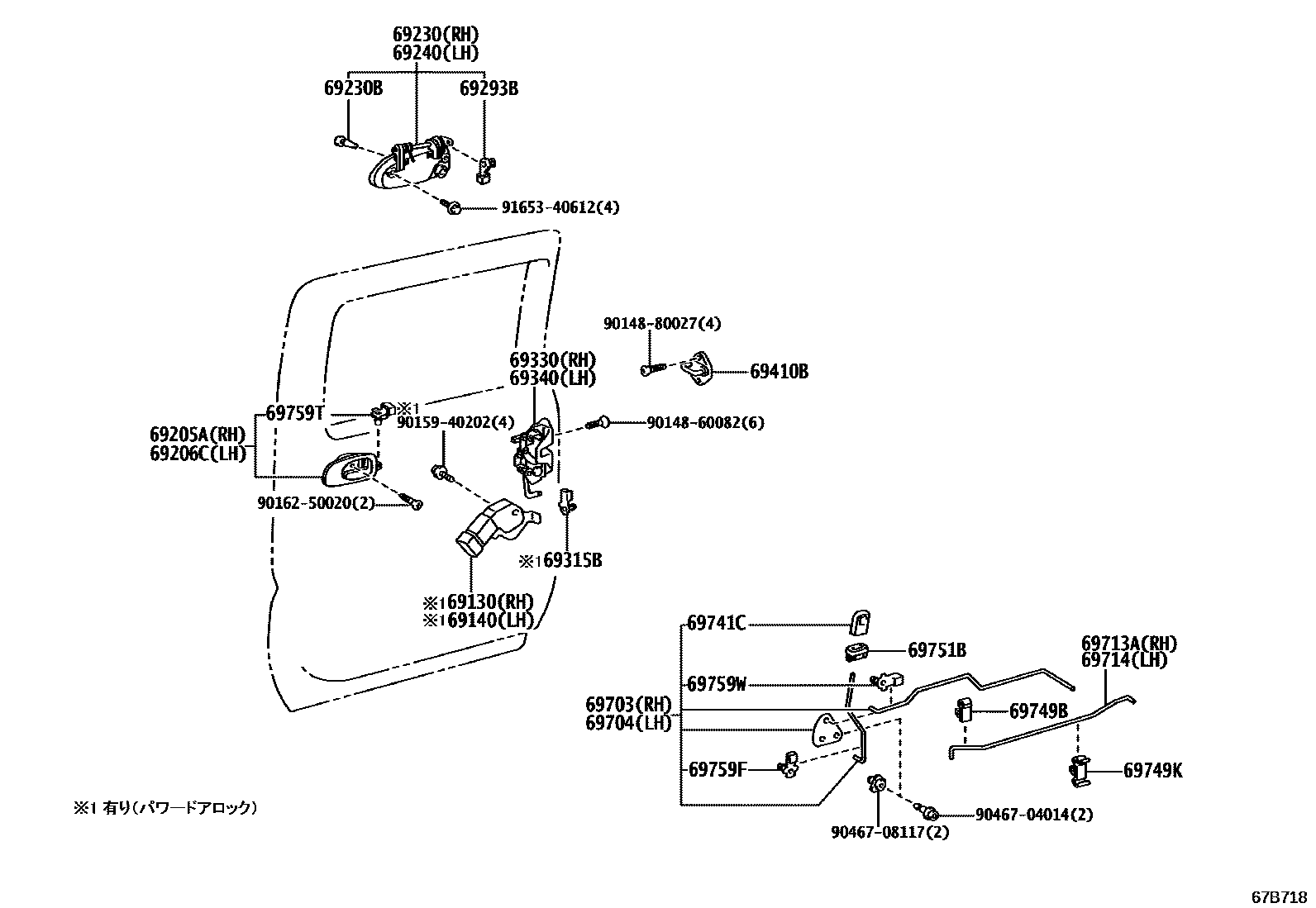

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
GRAY,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
GRAY,TRIM1#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69293BSNAP, REAR DOOR OUTSIDE HANDLE
69315BRETAINER, REAR DOOR LOCK SOLENOID
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
BLACK,TRIM1#
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
BLACK,TRIM1#
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69741CKNOB, REAR DOOR LOCK CONTROL
BLACK,TRIM1#
69749BCLAMP, REAR DOOR LOCK LINK
69749KCLAMP, REAR DOOR LOCK
69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)
BLACK,TRIM1#
69759FSNAP, REAR DOOR LOCK CONTROL LINK
69759TSNAP, REAR DOOR INSIDE HANDLE
69759WSNAP, REAR DOOR LOCK CONTROL LINK
9014860082
main90148-60082
9014880027
main90148-80027
9015940202
main90159-40202
9016250020
main90162-50020
9046704014
main90467-04014
9046708117
main90467-08117
9165340612
main91653-40612
30 parts on this diagram · 1 diagram in section
