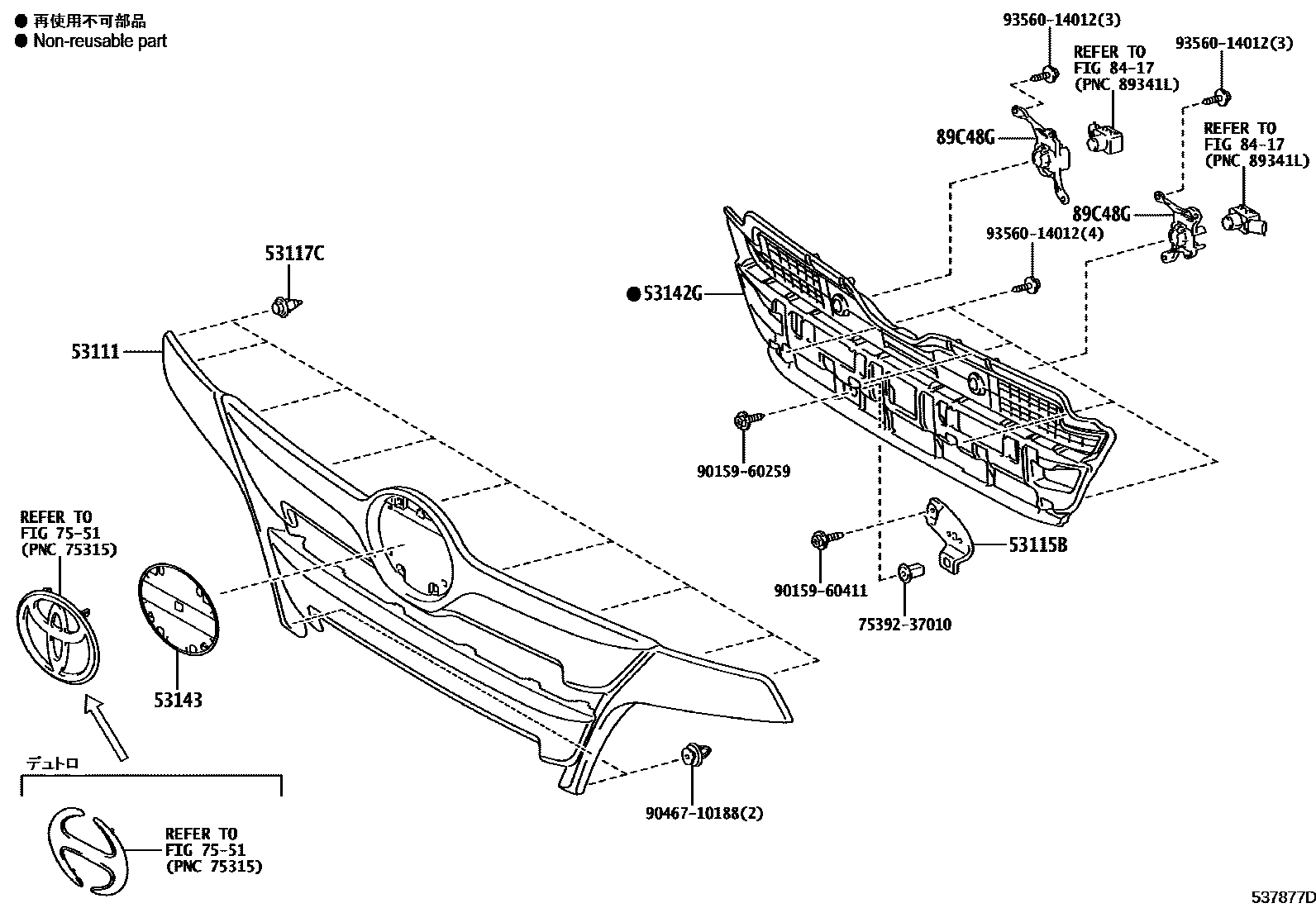

RADIATOR GRILLE

53111GRILLE, RADIATOR

main53111-37A70-A0iTRY230202108-202509

WHITE,058

main53111-37A70-B1iGDY231,281..SCB202108-202509

SILVER ME.,199

main53111-37A70-B2iGDY231,281..SCB..T4..IV3202108-202509

MARUDAI RED,968

main53111-37A70-H0iTRY230202108-202509

TURQUOISE,766

main53111-37A70-J1iGDY231,281202108-202509

BLUE,8P0

53115BBRACKET, RADIATOR GRILLE

main53115-37100iTRY230202108-202509

53117CRETAINER, RADIATOR GRILLE, NO.1

main67771-37040iTRY230202108-202509

53142GGARNISH, RADIATOR GRILLE, NO.2

main53142-37010iGDY231,281202108-202509

53143GARNISH, RADIATOR GRILLE, NO.3

main53143-37010iTRY230202108-202509

7551

8417

89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER

main89348-37031iGDY231,281202108-202509

main89348-37041iGDY231,281202108-202509

7539237010RETAINER, OUTSIDE MOULDING

main75392-37010

9015960259

main90159-60259

9015960411

main90159-60411

9046710188

main90467-10188

9356014012

main93560-14012

13 parts on this diagram · 1 diagram in section
