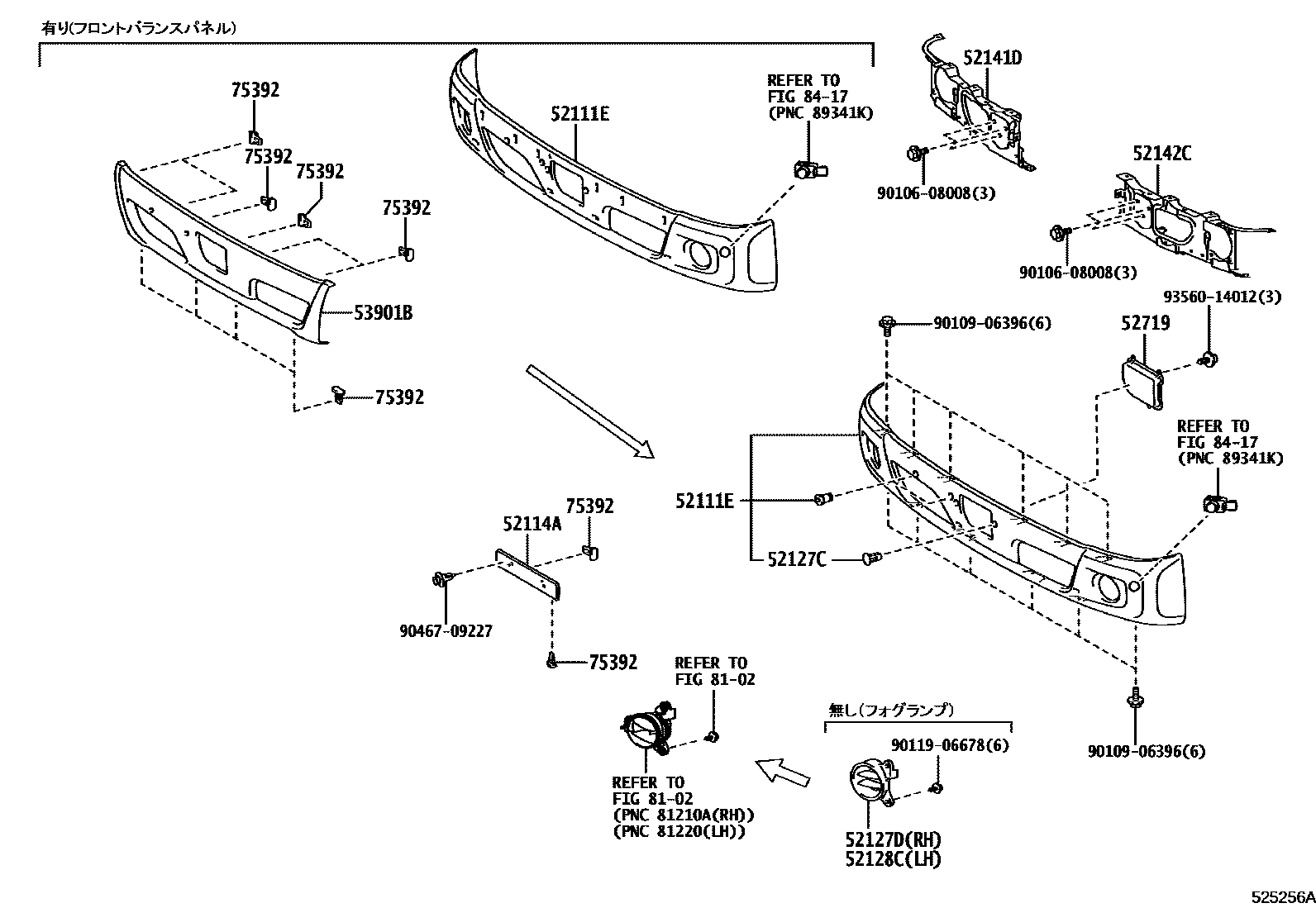

FRONT BUMPER & BUMPER STAY

52111EBAR, FRONT BUMPER

main52110-3VV60iGDY231..CBU,IV3202305-202509

main52110-3VV70iGDY231..CBU,IV3; GDY281..CBU,IV3202305-202509

main52110-3VV90-A0iTRY230202305

main52110-3VV90-B1iTRY230..125T202305

main52110-3VV90-B2iTRY230..5F..125T..IV3202305

main52110-3VV90-H0iGDY231202305-202509

main52110-3VV90-J0iGDY231202305-202509

main52110-3VW00-A0supersedes 52110-3VV80-A0iGDY231; GDY281202108-202509

main52110-3VW00-B1supersedes 52110-3VV80-B1iGDY231..SCB; GDY281..SCB202108-202509

main52110-3VW00-B2supersedes 52110-3VV80-B2iGDY231..175T..IV3; GDY281..SCB..T4..IV3202108-202509

main52110-3VW00-H0supersedes 52110-3VV80-H0iTRY230202108

main52110-3VW00-J0supersedes 52110-3VV80-J0iTRY230202108

main52110-3VW10-A0iGDY231; GDY281202305-202509

main52110-3VW10-B1iGDY231..SCB; GDY281..SCB202305-202509

main52110-3VW10-B2iGDY231..175T..IV3; GDY281..SCB..T4..IV3202305-202509

main52110-3VW10-H0iTRY230202305

main52110-3VW10-J0iGDY231; GDY281202305-202509

main52110-3VW20-A0supersedes 52110-3VV80-A0iTRY230202108

main52110-3VW20-B1supersedes 52110-3VV80-B1iGDY231..SCB202108-202509

main52110-3VW20-B2supersedes 52110-3VV80-B2iGDY231..175T..IV3202108-202509

main52110-3VW20-H0supersedes 52110-3VV80-H0iGDY231202108-202509

main52110-3VW20-J0supersedes 52110-3VV80-J0iGDY231202108-202509

main52110-3VW30-A0iTRY230202305

main52110-3VW30-B1iGDY231..SCB202305-202509

main52110-3VW30-B2iGDY231..175T..IV3202305-202509

main52110-3VW30-H0iGDY231202305-202509

main52110-3VW30-J0iTRY230202305

main52110-3VW40-A0supersedes 52110-3VV80-A0iGDY231; GDY281202108-202509

main52110-3VW40-B1supersedes 52110-3VW00-B1iGDY231..SCB; GDY281..SCB202108-202509

main52110-3VW40-B2supersedes 52110-3VV80-B2iTRY230..5F..125T..IV3202108

main52110-3VW40-H0supersedes 52110-3VV80-H0iGDY231; GDY281202108-202509

main52110-3VW40-J0supersedes 52110-3VV80-J0iGDY231; GDY281202108-202509

main52110-3VW50-A0iGDY231; GDY281202305-202509

main52110-3VW50-B1iGDY231..SCB; GDY281..SCB202305-202509

main52110-3VW50-B2iGDY231..175T..IV3; GDY281..SCB..T4..IV3202305-202509

main52110-3VW50-H0iGDY231; GDY281202305-202509

main52110-3VW50-J0iGDY231; GDY281202305-202509

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-37171iGDY231,281202108-202509

52127CCOVER, FRONT BUMPER HOLE

main52127-37020×2iGDY231,281202108-202509

52127DCOVER, FRONT BUMPER HOLE, RH

main81481-37040iGDY231,281..CBU,IV3202108-202509

52128CCOVER, FRONT BUMPER HOLE, LH

main81482-37040iGDY231,281..CBU,IV3202108-202509

52141DSTAY, FRONT BUMPER, RH

main52011-37140iGDY231,281202108-202509

52142CSTAY, FRONT BUMPER, LH

main52012-37140iGDY231,281202108-202509

52719COVER, FRONT BUMPER MOULDING

main52719-37020supersedes 52719-37010iGDY231; GDY231,281; GDY231,281..CBU,IV3; GDY231..CBU,IV3202108-202509

53901BPANEL SUB-ASSY, FRONT VALANCE

main53901-37040iGDY231; GDY231,281; GDY231,281..CBU,IV3; GDY231..CBU,IV3202108-202509

75392RETAINER, OUTSIDE MOULDING

main75392-35220×10iGDY231; GDY231,281; GDY231,281..CBU,IV3; GDY231..CBU,IV3202108-202509

8102FOG LAMP

→ Go to FIG 81-02

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

9010608008

main90106-08008

9010906396

main90109-06396

9011906678

main90119-06678

9046709227

main90467-09227

9356014012

main93560-14012

17 parts on this diagram · 1 diagram in section
