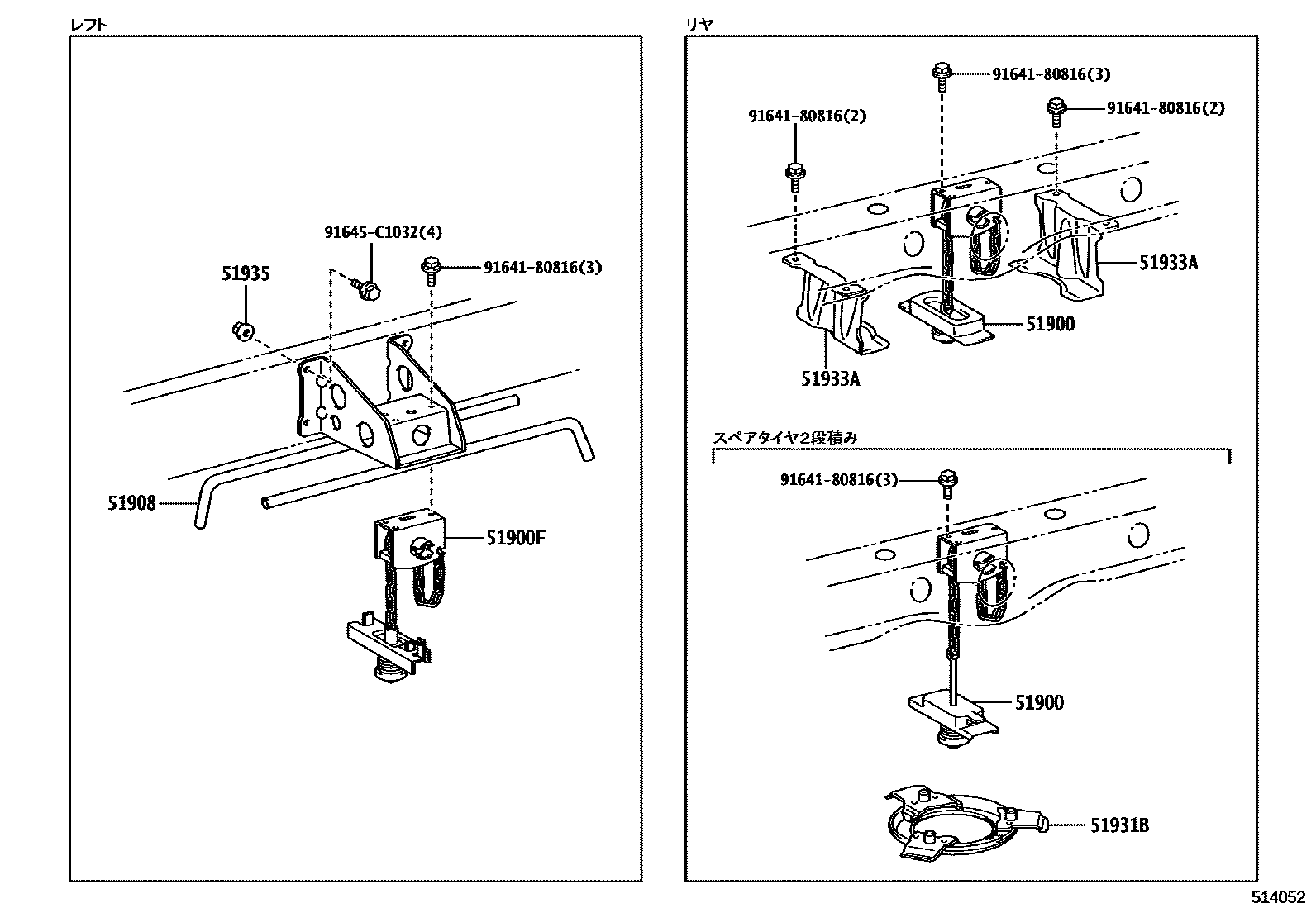

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-25110iTRY230202108

main51900-25130iGDY231,281..(T2,TS)..15T; GDY231,281..T4202108-202509

51900FCARRIER ASSY, SPARE WHEEL

main51900-26080iTRY230..125T..(IV3,IV6)202108

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-25020iTRY230..125T..CBU202305

main51908-25060iGDY231,281..SCB..T4..(CBU,IV3)202108-202509

51931BPLATE, SPARE WHEEL CARRIER BASE

main51931-25070iGDY231,281..T2,TS202108-202509

51933ASTOPPER, SPARE WHEEL, NO.1

main51933-25090×2iGDY231,281..T4202108-202509

main51933-25110×2iGDY231,281..(T2,TS)..15T; GDY231,281..IV6202108-202509

51935NUT, SPARE WHEEL CARRIER EYE

main94151-81000×4iGDY231,281..(T2,TS)..15T; GDY231,281..SCB..T4..(CBU,IV3)202108-202509

9164180816

main91641-80816

91645C1032

main91645-C1032

8 parts on this diagram · 1 diagram in section
