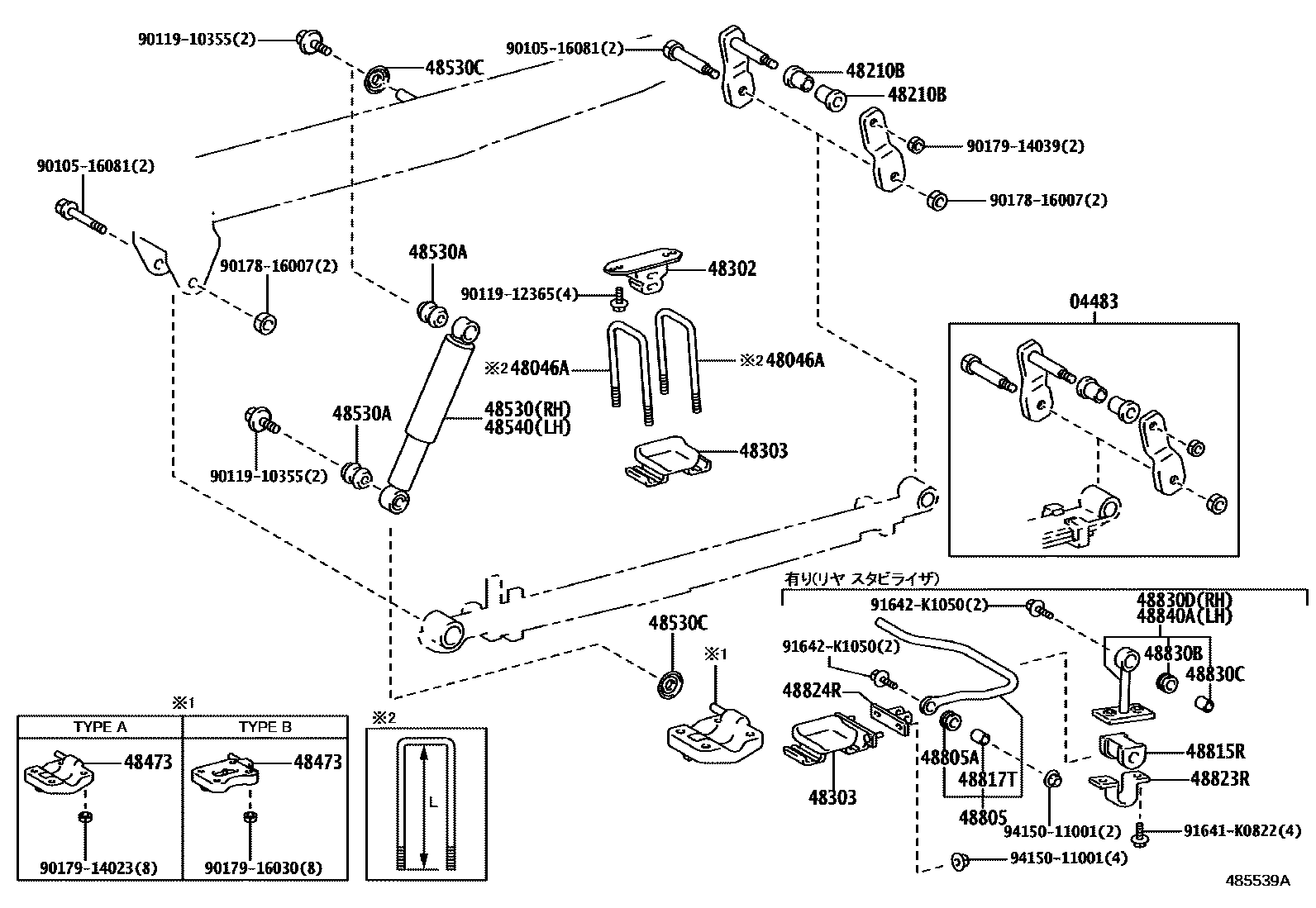

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1������� 0003 1������� 0004 1���2�����+���1�����,����A 0005 1���2�����+���1�����,����B 0006 1���2�����+���1�����,����C 0007 1���2�����+���1�����,����C 0008 1���2����� 0009 1���2�����

04483SHACKLE KIT, REAR SPRING

main04483-25060iGDY231,281202108-202509

48046ABOLT, U(FOR REAR SPRING)

main90117-14035iGDY231,281..T2,TS202108-202509

main90117-14035iTRY230..125T..CBU202108

main90117-14035iTRY230..125T..CBU202108

main90117-16074iGDY231,281..T4202108-202509

48210SPRING ASSY, REAR RH

main48210-25C00iTRY230..125T..(CBU,IV3)202108

main48210-25C10iTRY230..125T..CBU202108

main48210-25C10iGDY231,281..T2,TS202108-202509

main48210-25C10iTRY230..125T..CBU202108

main48210-25C40iGDY281..SCB..T4..(CBU,IV3)202108-202509

main48210-25C50iGDY231..T4;GDY281..IV6;GDY281..DCB..T4202108-202509

main48210-25C50iGDY281..SCB..T4..(CBU,IV3)202108-202509

48210BBUSH(FOR REAR SPRING PIN)

main90385-18023iGDY231,281202108-202509

main90385-18023iTRY230202108

48302SPRING SUB-ASSY, HOLLOW

main48302-25100iGDY231,281..T2,TS202108-202509

main48302-25110iGDY231,281..T4202108-202509

48303SEAT SUB-ASSY, HOLLOW SPRING

main48303-25040iGDY231,281..T2,TS202108-202509

main48303-25090iGDY231,281..T4202108-202509

48473SEAT, REAR SPRING U BOLT

main48046-25090iGDY231,281..T2,TS202108-202509

main48046-25110iGDY231,281..T4202108-202509

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29745iGDY231,281..T2,TS202108-202509

main48531-29755iGDY231,281..T4202108-202509

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16010iTRY230202108

main90385-16010iGDY231,281..IV6202108-202509

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iGDY231,281..IV6202108-202509

main90948-03004iTRY230202108

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29745iGDY231,281..T2,TS202108-202509

main48531-29755iGDY231,281..T4202108-202509

48805BAR SUB-ASSY, REAR STABILIZER

main90385-13008

main48805-25010

48805ABUSH(FOR REAR STABILIZER BAR)

48815RBUSH, STABILIZER(FOR REAR)

48817TCOLLAR(FOR STABILIZER REAR BAR)

48823RCOVER, STABILIZER LINK(FOR REAR)

48824RBRACKET, STABILIZER(FOR REAR)

48830BBUSH(FOR REAR STABILIZER LINK)

48830CSPACER(FOR REAR STABILIZER LINK)

48830DLINK ASSY, REAR STABILIZER, RH

48840ALINK ASSY, REAR STABILIZER, LH

9010516081

main90105-16081

9011910355

main90119-10355

9011912365

main90119-12365

9017816007

main90178-16007

9017914023

main90179-14023

9017914039

main90179-14039

9017916030

main90179-16030

91641K0822

main91641-K0822

91642K1050

main91642-K1050

9415011001

main94150-11001

31 parts on this diagram · 9 diagrams in section
