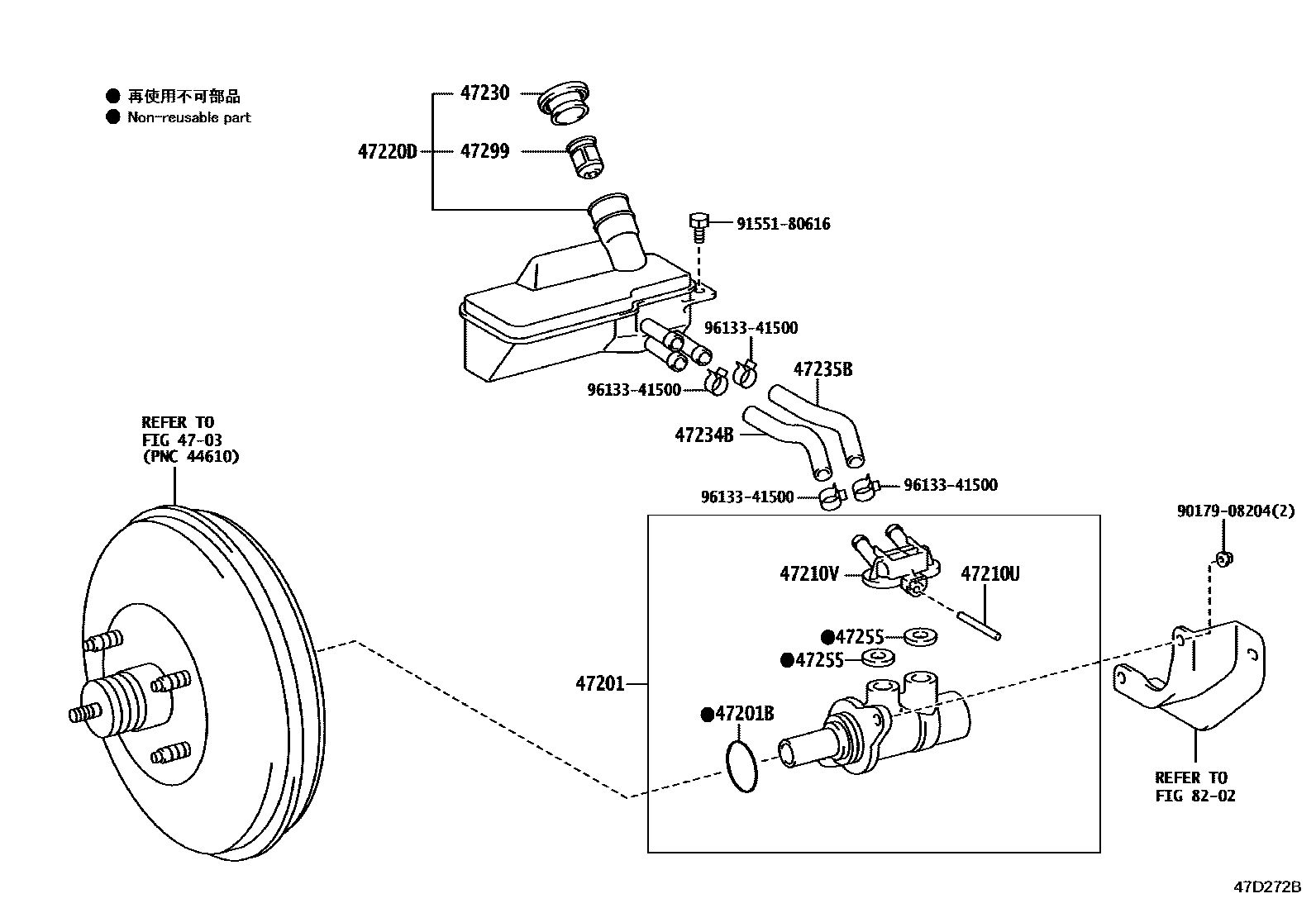

BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-25300202108-202509

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002202108-202509

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803202108-202509

47210VUNION(FOR BRAKE MASTER CYLINDER)

main90015-AM007202108-202509

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-37120202108-202509

main47220-37160202108-202509

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020202108-202509

47234BTUBE, RESERVOIR, NO.1

main47234-37180202108-202509

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37170202108-202509

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001202108-202509

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010202108-202509

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908204

main90179-08204

9155180616

main91551-80616

9613341500

main96133-41500

15 parts on this diagram · 1 diagram in section
