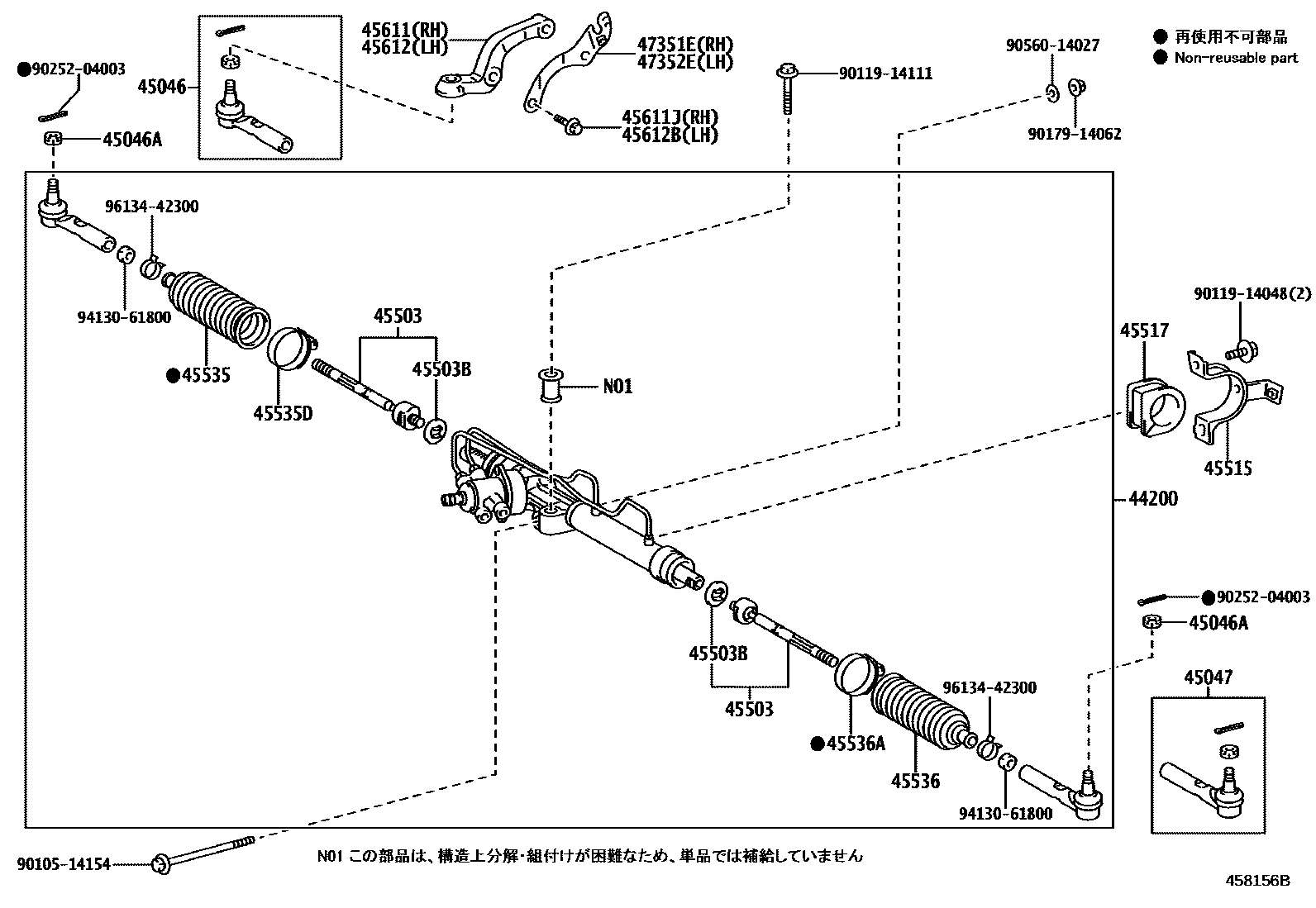

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-25040iGDY231202108-202509

main44200-25060iGDY281202108-202509

45046END SUB-ASSY, TIE ROD, RH

main45046-29405iTRY230202108

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-16005×2iGDY231,281202108-202509

45047END SUB-ASSY, TIE ROD, LH

main45046-29405iGDY231,281202108-202509

45503END SUB-ASSY, STEERING RACK

main45503-29425×2iGDY231,281202108-202509

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-18002×2iGDY231,281202108-202509

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-26051iGDY231,281202108-202509

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-25010iTRY230202108

45535BOOT, STEERING RACK, NO.1

main45535-37010iGDY231,281202108-202509

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-62006iGDY231,281202108-202509

45536BOOT, STEERING RACK, NO.2

main45535-37010iGDY231,281202108-202509

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-62006iGDY231,281202108-202509

45611ARM, STEERING KNUCKLE, RH

main45611-25120iGDY231,281202108-202509

45611JBOLT(FOR STEERING KNUCKLE ARM RH)

main90105-14043×2iGDY231,281202108-202509

45612ARM, STEERING KNUCKLE, LH

main45612-25090iGDY231,281202108-202509

45612BBOLT(FOR STEERING KNUCKLE ARM LH)

main90105-14043×2iGDY231,281202108-202509

47351EBRACKET, FRONT BRAKE FLEXIBLE HOSE, RH

main47351-25140iGDY231,281202108-202509

47352EBRACKET, FRONT BRAKE FLEXIBLE HOSE, LH

main47352-25120iGDY231,281202108-202509

9010514154

main90105-14154

9011914048

main90119-14048

9011914111

main90119-14111

9017914062

main90179-14062

9025204003

main90252-04003

9056014027

main90560-14027

9413061800

main94130-61800

9613442300

main96134-42300

26 parts on this diagram · 2 diagrams in section
