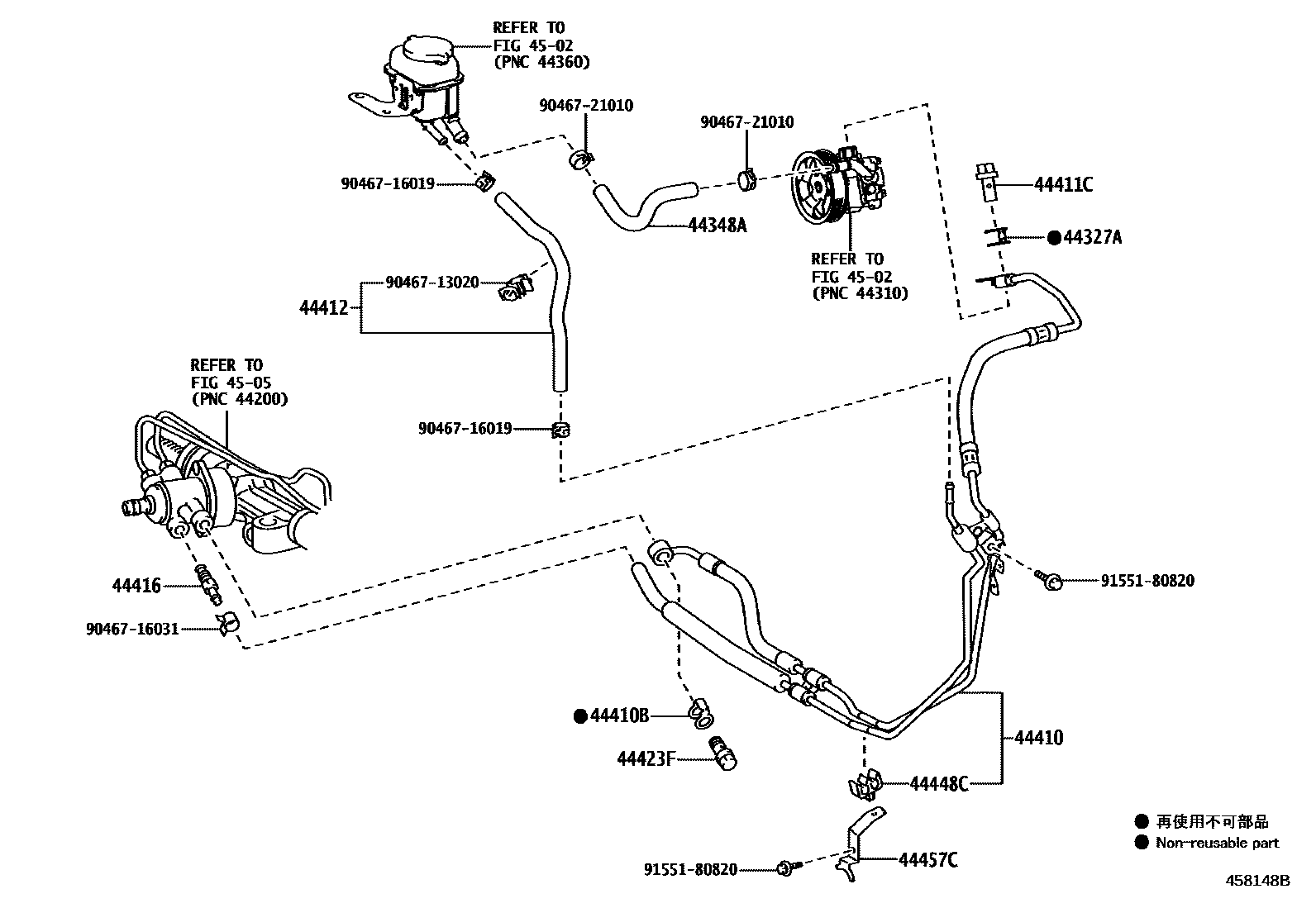

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30040iGDY231,281202108-202509

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-25130iGDY231,281202108-202509

44410TUBE ASSY, PRESSURE FEED

main44410-25250iGDY231,281202108-202509

main44410-25270iTRY230202108

44410BGASKET(FOR PRESSURE FEED TUBE)

main44327-30030iGDY231,281202108-202509

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16034iGDY231,281202108-202509

44412HOSE, RETURN

main44412-25070iGDY231,281202108-202509

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20220iGDY231,281202108-202509

44423FBOLT, UNION

main96341-41603iGDY231,281202108-202509

44448CCLAMP, PRESSURE FEED, NO.2

main44448-37080iGDY231,281202108-202509

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44457-25080iGDY231,281202108-202509

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9046713020

main90467-13020

9046716019

main90467-16019

9046716031

main90467-16031

9046721010

main90467-21010

9155180820

main91551-80820

17 parts on this diagram · 2 diagrams in section
