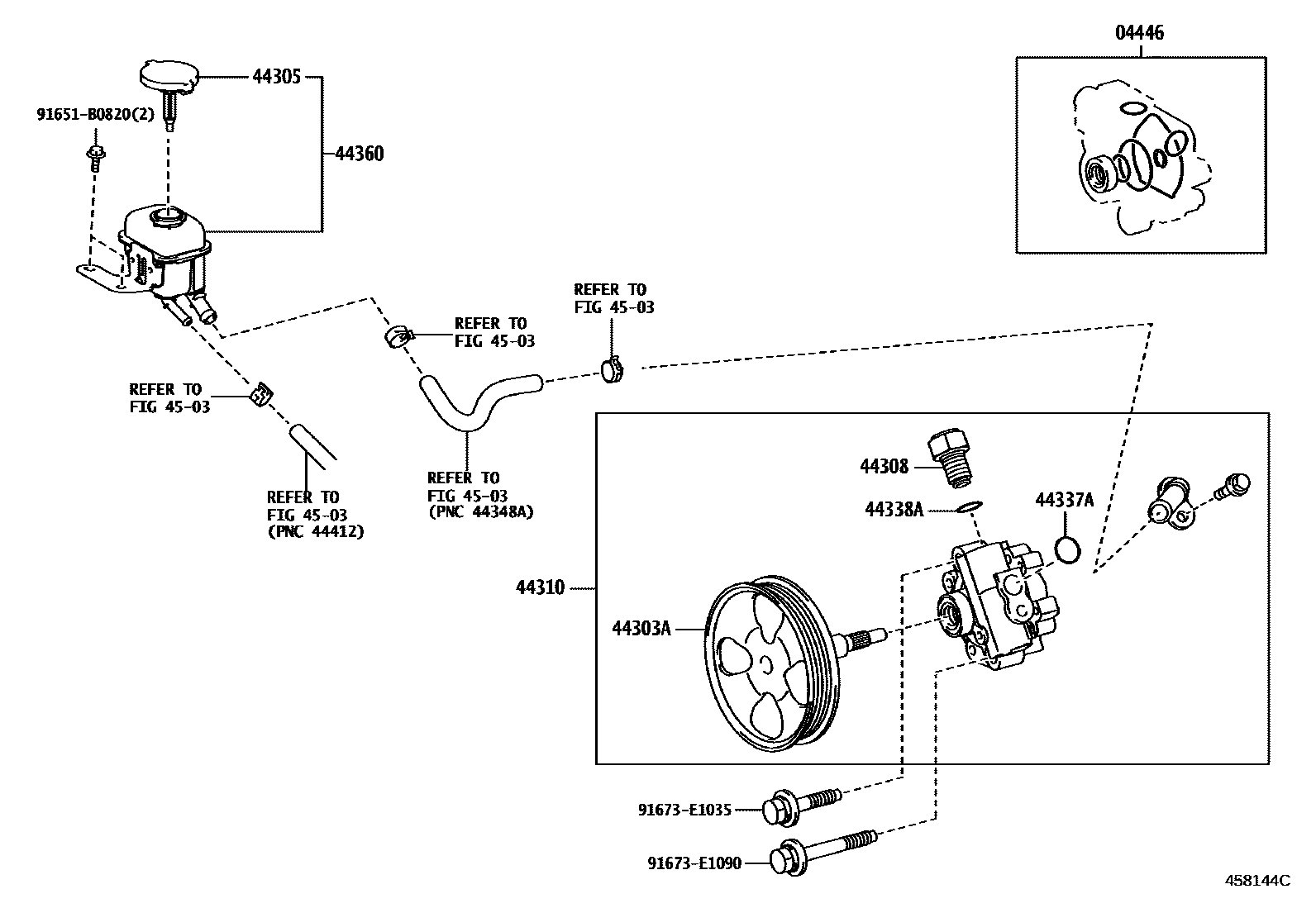

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-20170iTRY230202108

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iTRY230202108

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22061iTRY230202108

main44305-25010iGDY231,281202108-202509

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26120iGDY231,281202108-202509

44310PUMP ASSY, VANE

main44310-25160iGDY231,281202108-202509

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iGDY231,281202108-202509

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-18009iGDY231,281202108-202509

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-25070iGDY231,281202108-202509

4503

91651B0820

main91651-B0820

91673E1035

main91673-E1035

91673E1090

main91673-E1090

12 parts on this diagram · 2 diagrams in section
