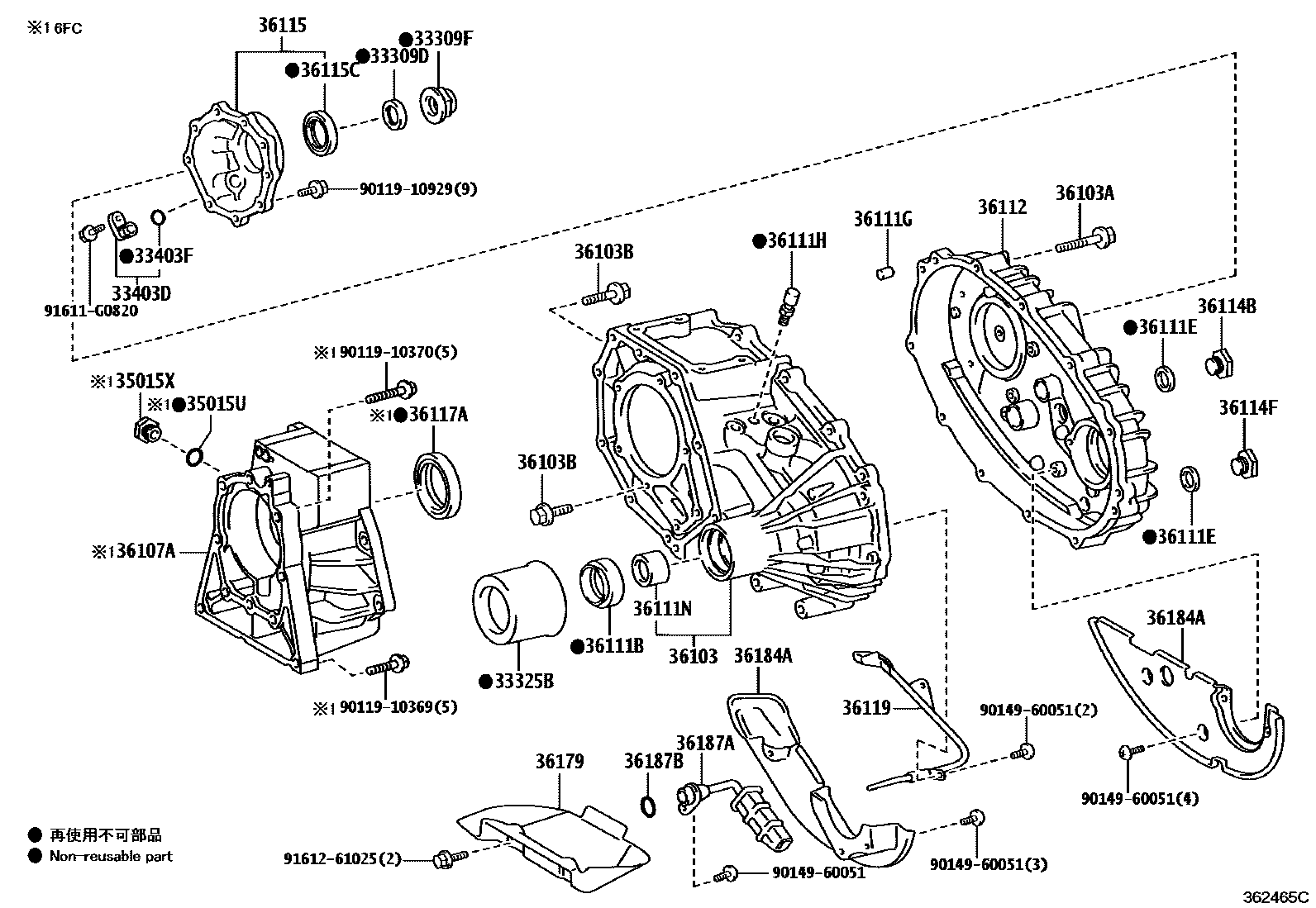

TRANSFER CASE & EXTENSION HOUSING

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iGDY281202108-202509

33309FNUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90179-20010iGDY281202108-202509

33325BDEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)

main33325-28020iGDY281202108-202509

33403DCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-26060iGDY281202108-202509

33403FRING,O (FOR SPEEDOMETER DRIVEN HOLE COVER)

main90301-18018iGDY281202108-202509

35015URING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iGDY281..6FC202108-202509

35015XPLUG, REFILL(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGDY281..6FC202108-202509

36103CASE SUB-ASSY, TRANSFER

main36103-28040iGDY281202108-202509

36103ABOLT (FOR TRANSFER CASE)

main91612-61055×11iGDY281202108-202509

36103BBOLT (FOR TRANSFER CASE & ADAPTER SETTING)

main90119-10615×8iGDY281202108-202509

36107AADAPTER SUB-ASSY, TRANSFER

main35015-26080iGDY281..6FC202108-202509

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-37003iGDY281202108-202509

36111EGASKET (FOR TRANSFER CASE)

main90430-18008×2iGDY281202108-202509

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214×2iGDY281202108-202509

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03085iGDY281202108-202509

36111NBUSH (FOR TRANSFER CASE)

main90999-73139iGDY281202108-202509

36112CASE, TRANSFER, REAR

main36112-25010iGDY281202108-202509

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18065iGDY281202108-202509

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18057iGDY281202108-202509

36115HOUSING, TRANSFER EXTENSION

main36105-25010iGDY281202108-202509

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38090iGDY281202108-202509

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90310-40003iGDY281..6FC202108-202509

36119RECEIVER, TRANSFER OIL, NO.1

main36119-25010iGDY281202108-202509

36179PROTECTOR, TRANSFER CASE LOWER

main36179-25010iGDY281202108-202509

36184ASEPARATOR, TRANSFER OIL

main36184-26010iGDY281202108-202509

main36184-28030iGDY281202108-202509

36187ASTRAINR, TRANSFER OIL, NO.1

main36187-25010iGDY281202108-202509

36187BRING, O (FOR TRANSFER OIL STRAINER)

main96721-24017iGDY281202108-202509

9011910369

main90119-10369

9011910370

main90119-10370

9011910929

main90119-10929

9014960051

main90149-60051

91611G0820

main91611-G0820

9161261025

main91612-61025

33 parts on this diagram · 1 diagram in section
