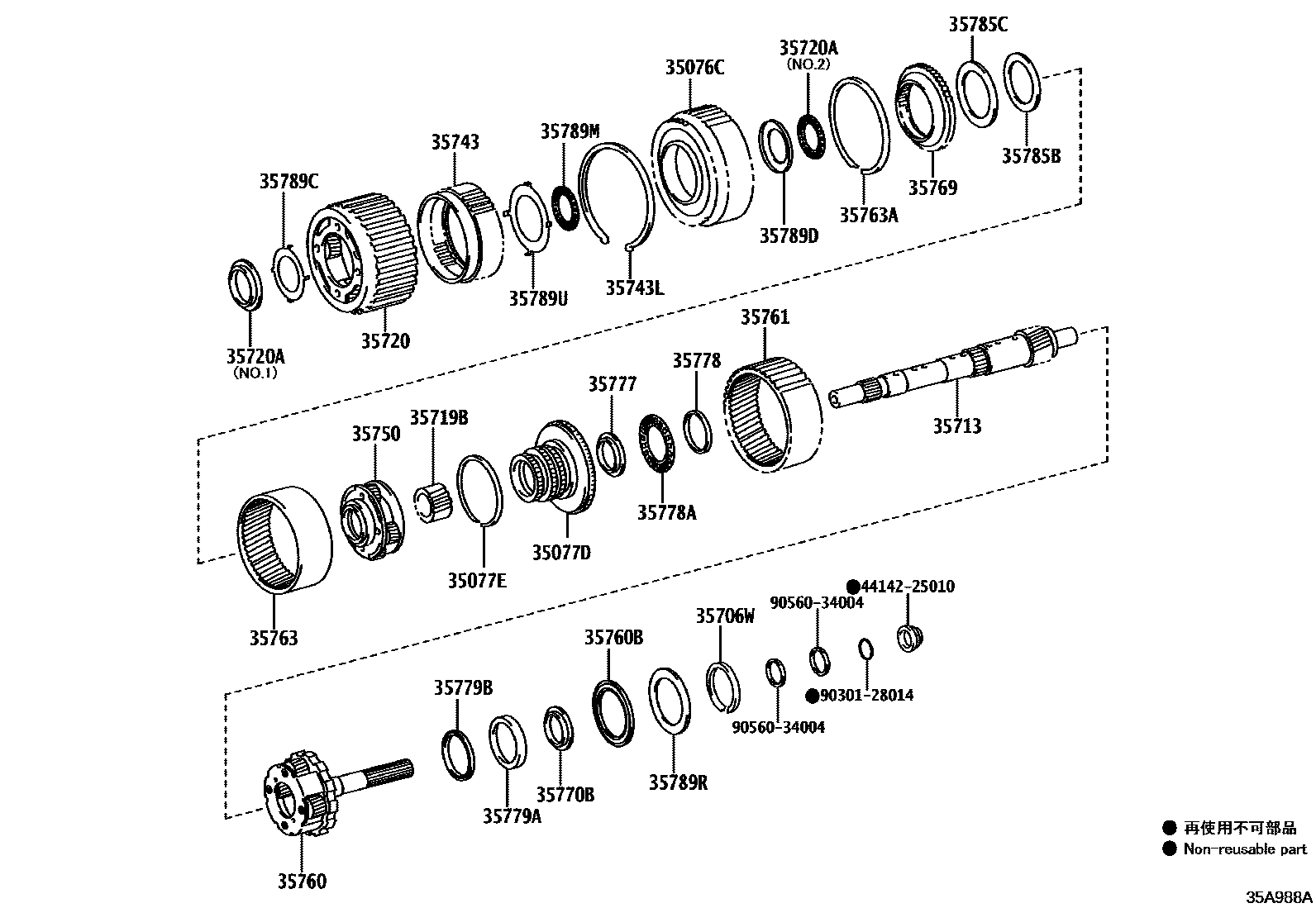

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
35706WRING, SNAP (FOR PLANETARY SUN GEAR)
35713SHAFT, INTERMEDIATE
35719BGEAR, PLANETARY SUN
35720GEAR ASSY, FRONT PLANETARY
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
35743GEAR, FRONT PLANETARY RING
35743LRING, SNAP (FOR PLANETARY RING GEAR)
35750GEAR ASSY, CENTER PLANETARY
35760GEAR ASSY, REAR PLANETARY
35760BBEARING, THRUST NEEDLE ROLLER(FOR REAR PLANETRAY SUN GEAR)
35761GEAR, REAR PLANETARY RING
35763GEAR, CENTER PLANETARY RING
35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
35769FLANGE, PLANETARY RING GEAR, CTR
35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)
35777RACE, THRUST BEARING, NO.7
35778RACE, THRUST BEARING, NO.8
35778ABEARING, THRUST NEEDLE ROLLER
35779ARACE, THRUST BEARING, NO.9
35779BBEARING, THRUST NEEDLE ROLLER
35785BRACE, THRUST BEARING, NO.4
35785CBEARING, THRUST NEEDLE ROLLER
35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)
35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)
35789MBEARING, THRUST NEEDLE ROLLER
35789RRACE, THRUST BEARING (FOR REAR OUTPUT SHAFT)
35789URACE, THRUST BEARING
4414225010NUT, LOCK
main44142-25010
9030128014
main90301-28014
9056034004
main90560-34004
33 parts on this diagram · 2 diagrams in section
