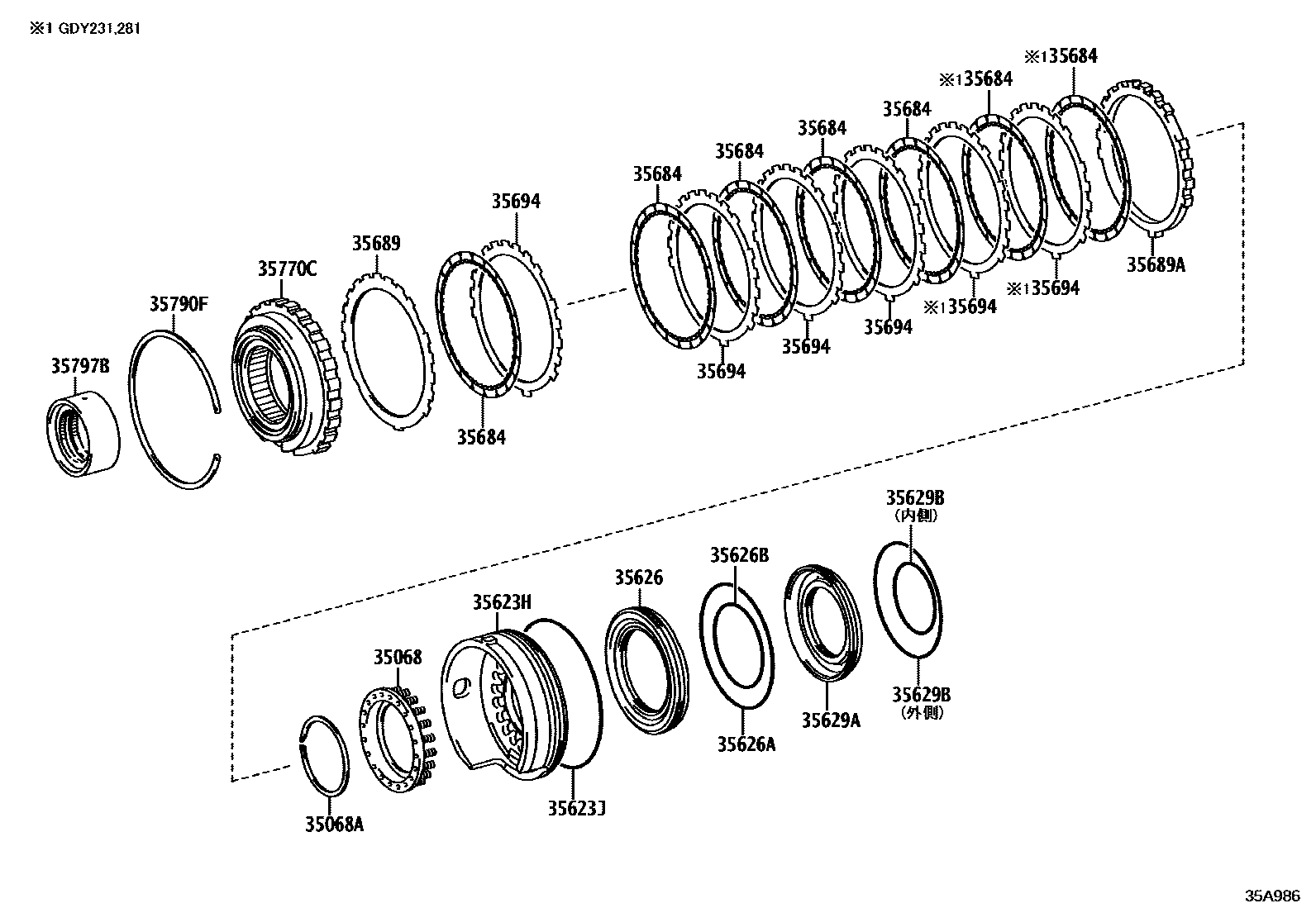

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-60010iGDY231,281..6FC202108-202509

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001iGDY231,281..6FC202108-202509

35623HPISTON, 1ST & REVERSE BRAKE

main35623-71010iGDY231,281..6FC202108-202509

main35623-71020iTRY230..6FC202108

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iGDY231,281..6FC202108-202509

35626SLEEVE, BRAKE REACTION

main35626-50010iGDY231,281..6FC202108-202509

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99144iTRY230..6FC202108

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-79003iTRY230..6FC202108

35629APISTON, BRAKE, NO.4

main35629-50020iGDY231,281..6FC202108-202509

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-67006iTRY230..6FC202108

main90301-99084iGDY231,281..6FC202108-202509

35684DISC, BRAKE, NO.4

main35684-60030×7iGDY231,281..6FC202108-202509

35689FLANGE, BRAKE, NO.4

main35689-60270iTRY230..6FC202108

main35689-60280iTRY230..6FC202108

main35689-60290iTRY230..6FC202108

main35689-60300iTRY230..6FC202108

main35689-60310iGDY231,281..6FC202108-202509

main35689-60320iTRY230..6FC202108

main35689-60330iTRY230..6FC202108

main35689-60340iTRY230..6FC202108

main35689-60350iTRY230..6FC202108

main35689-60360iGDY231,281..6FC202108-202509

main35689-60370iTRY230..6FC202108

35689AFLANGE, BRAKE, NO.4

main35689-71010iTRY230..6FC202108

35694PLATE, BRAKE, NO.4

main35694-60011×6iGDY231,281..6FC202108-202509

35770CCLUTCH ASSY, 1WAY NO.3

main35770-60030iGDY231,281..6FC202108-202509

35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)

main90521-99131iGDY231,281..6FC202108-202509

35797BRACE, 1 WAY CLUTCH, INNER

main35797-60020iGDY231,281..6FC202108-202509

16 parts on this diagram · 1 diagram in section
