TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

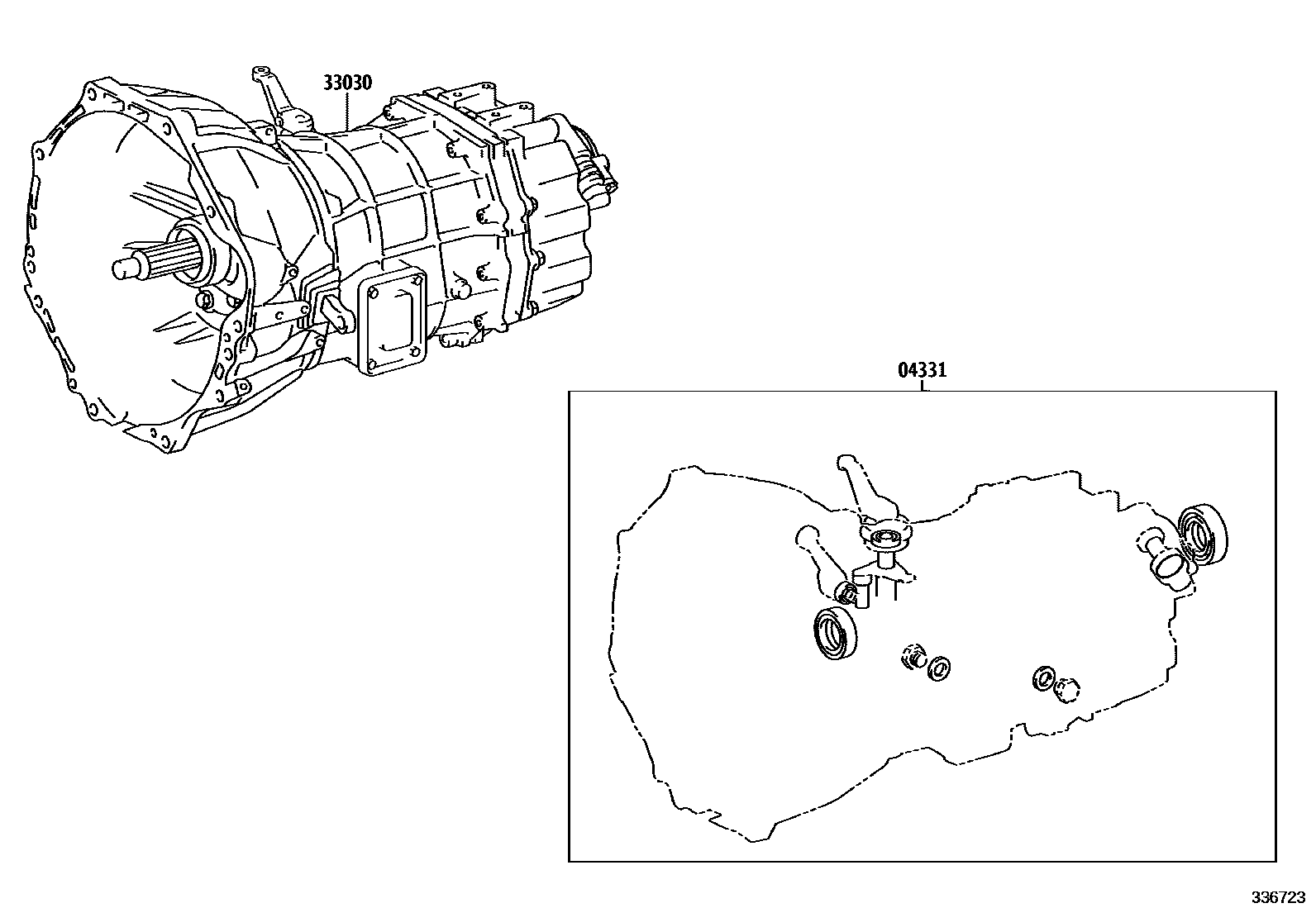

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-25090i202108-202509

main04331-25100i202108-202509

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-25445i202108-202509

main33030-25480i202108-202509

main33030-25500i202108

2 parts on this diagram · 2 diagrams in section
