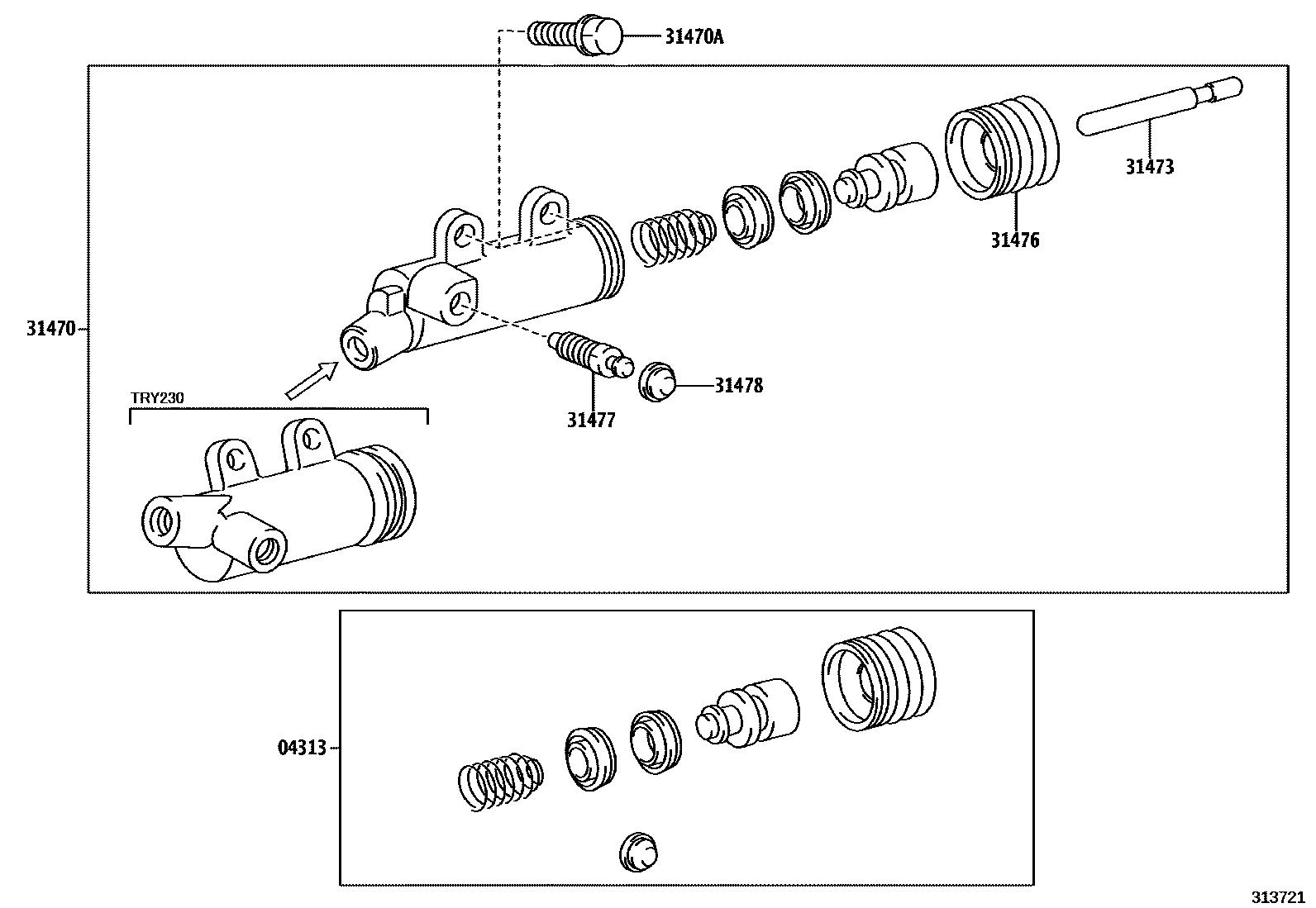

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iTRY230..5F202108

main04313-25070iGDY231,281..5F202108-202509

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-26100iTRY230..5F202108

main31470-35140iGDY231,281..5F202108-202509

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iGDY231,281..5F202108-202509

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iTRY230..5F202108

main31473-52020iGDY231,281..5F202108-202509

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iGDY231,281..5F202108-202509

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGDY231,281..5F202108-202509

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGDY231,281..5F202108-202509

7 parts on this diagram · 1 diagram in section
