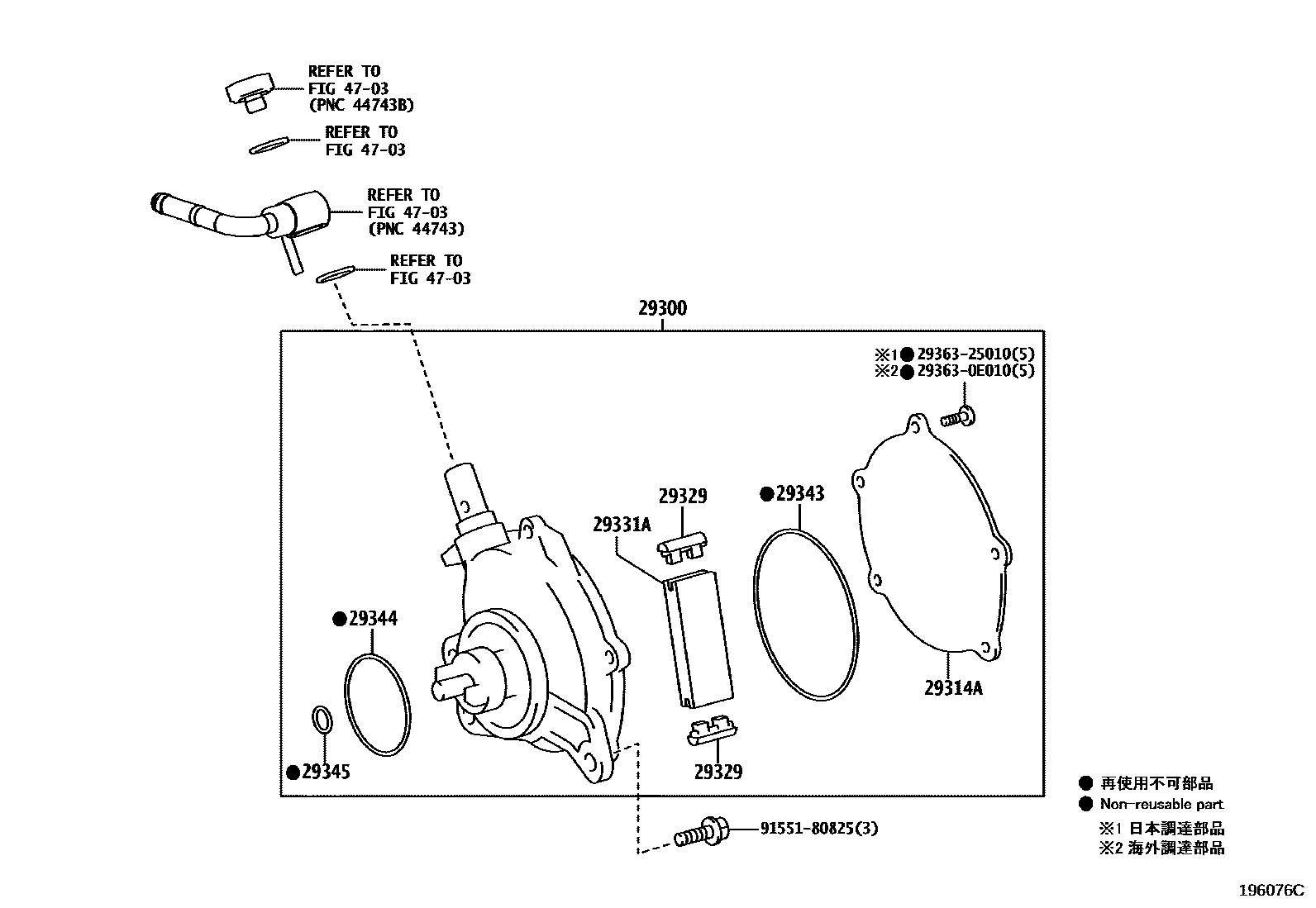

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-11021202108-202307

main29300-35010202308-202509

29314ACOVER, END

main29314-0E010202108-202401

main29314-11020202108-202308

29329CAP, VACUUM PUMP VANE

main29329-0E010202108-202401

main29329-37010202108-202308

29331AVANE, VACUUM PUMP

main29331-0E010202108-202401

main29331-11020202108-202308

29343RING, O VACUUM PUMP, NO.1

main29343-0E010202108-202401

main29343-11020202108-202308

29344RING, O VACUUM PUMP, NO.2

main29344-0E010202108-202401

main29344-22011202108-202308

29345RING, O VACUUM PUMP, NO.3

main29345-0E010202108-202401

main29345-22011202108-202308

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

293630E010SCREW, HOLLOW VACUUM PUMP

main29363-0E010

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9155180825

main91551-80825

11 parts on this diagram · 1 diagram in section
