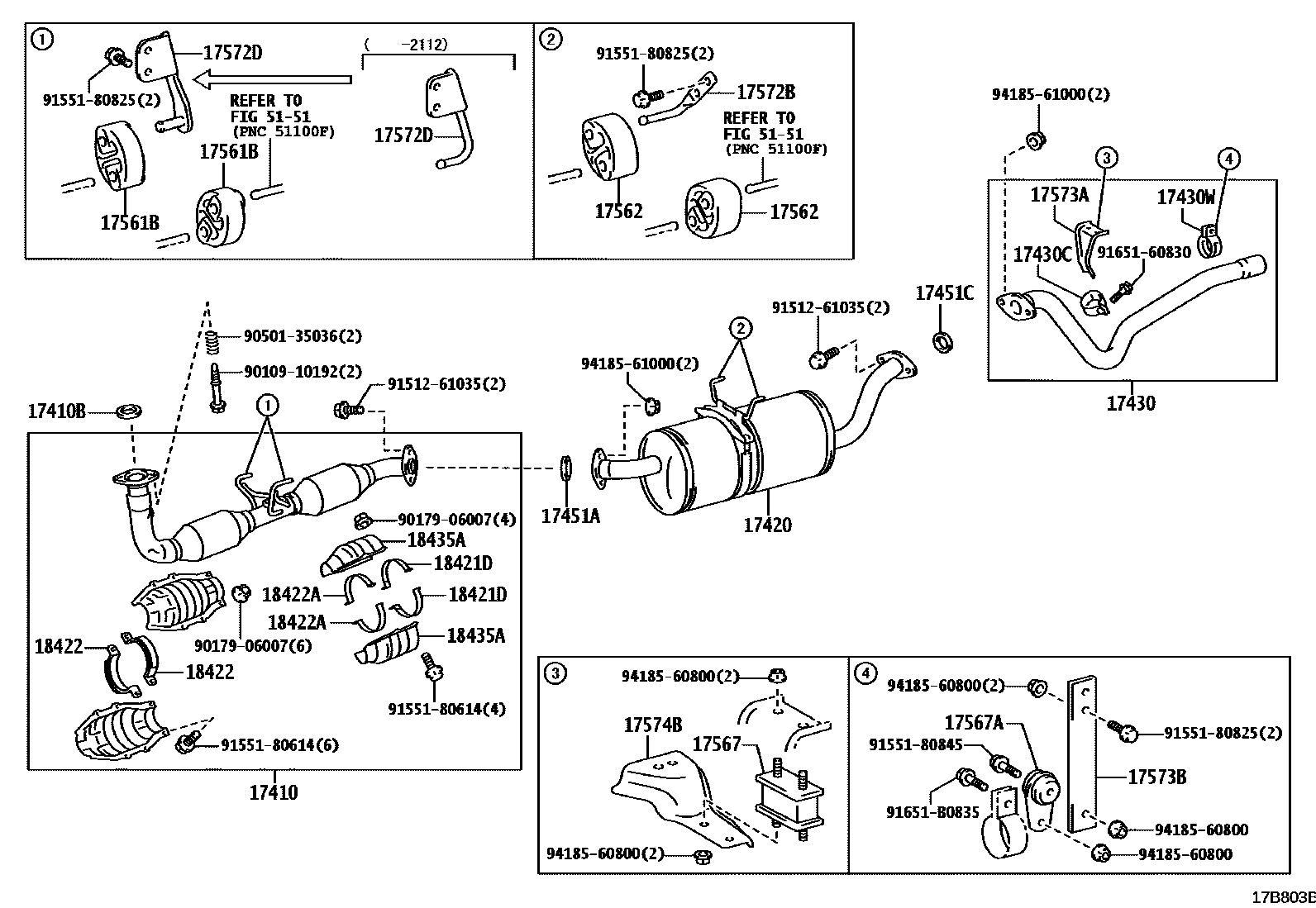

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430CCLAMP NO.1, EXHAUST TAILPIPE (FOR FRONT)
17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)
17451AGASKET, EXHAUST PIPE, NO.2
17451CGASKET, EXHAUST PIPE, NO.3
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17567CUSHION, EXHAUST PIPE SUPPORT
17567ACUSHION, EXHAUST PIPE SUPPORT, NO.2
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17572DBRACKET, EXHAUST PIPE SUPPORT, NO.1
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17573BBRACKET, EXHAUST PIPE SUPPORT, NO.5
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574BBRACKET, EXHAUST PIPE SUPPORT, NO.4
18421DSTAY, CONVERTER PROTECTOR, CENTER, NO.1
18422STAY, CONVERTER PROTECTOR, NO.2
18422ASTAY, CONVERTER PROTECTOR, NO.3
18435APROTECTOR, MONOLITHIC CONVERTER
5151
9010910192
main90109-10192
9017906007
main90179-06007
9050135036
main90501-35036
9151261035
main91512-61035
9155180614
main91551-80614
9155180825
main91551-80825
9155180845
main91551-80845
9165160830
main91651-60830
91651B0835
main91651-B0835
9418560800
main94185-60800
9418561000
main94185-61000
34 parts on this diagram · 2 diagrams in section
