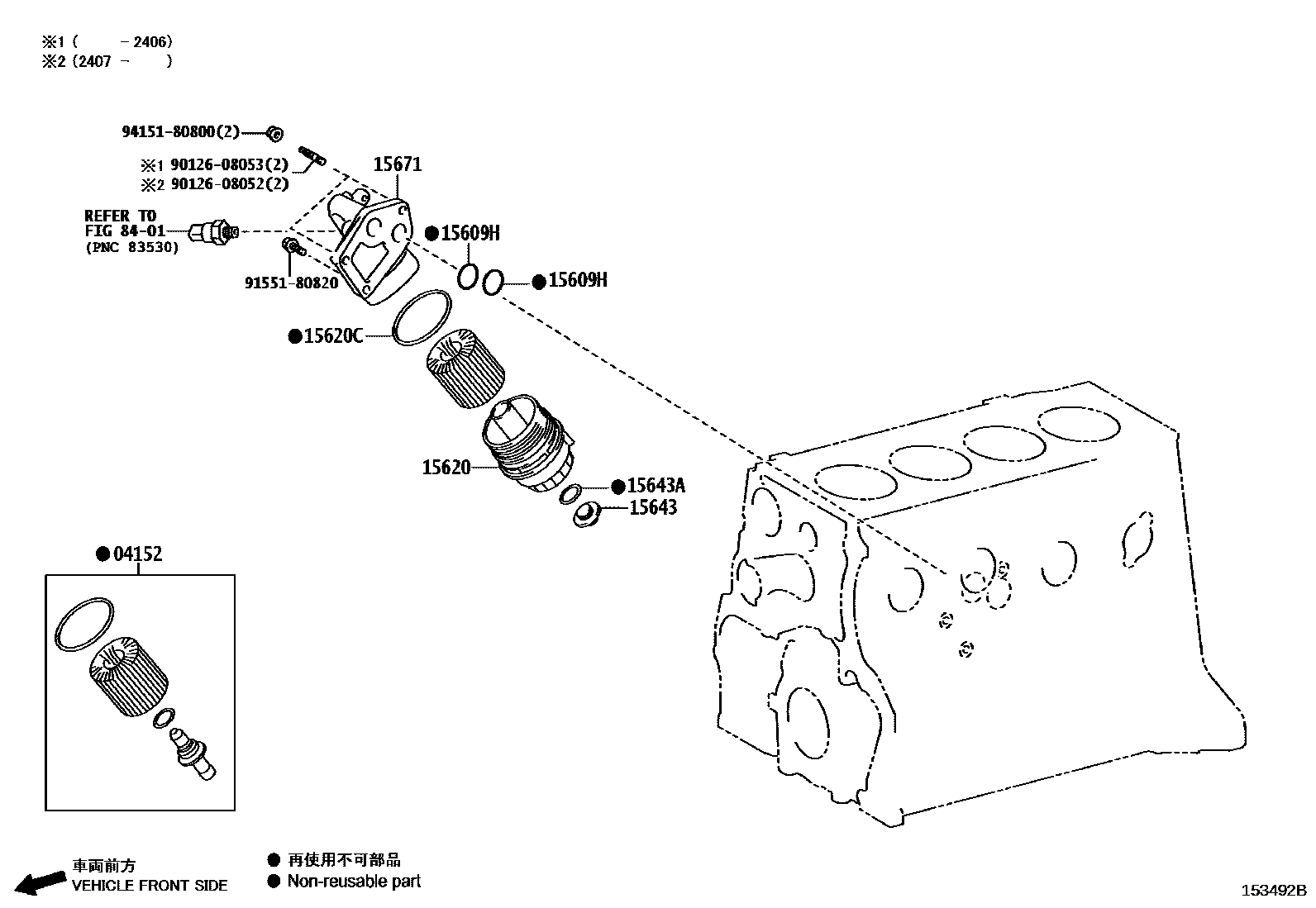

OIL FILTER

0001 1 0002 1

04152ELEMENT KIT, OIL FILTER

main04152-38010i1TRFE..TRY230202108

15609BRACKET SUB-ASSY, OIL FILTER

main15609-75080i1TRFE..TRY230202108

15609HRING, O(FOR OIL FILTER BRACKET)

main90301-68005i1TRFE..TRY230202108

main96723-24030i1GDFTV..GDY231,281202108

15620CAP ASSY, OIL FILTER

main15620-31050i1TRFE..TRY230202108

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i1TRFE..TRY230202108

15643PLUG, OIL FILTER DRAIN

main15643-31050i1TRFE..TRY230202108

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i1TRFE..TRY230202108

15671BRACKET, OIL FILTER

main15671-11010i1GDFTV..GDY231,281202108-202209

sub15671-35010

main15671-35010i1GDFTV..GDY231,281202210

8401

9012608052

main90126-08052

9012608053

main90126-08053

9155180820

main91551-80820

9415180800

main94151-80800

13 parts on this diagram · 2 diagrams in section
