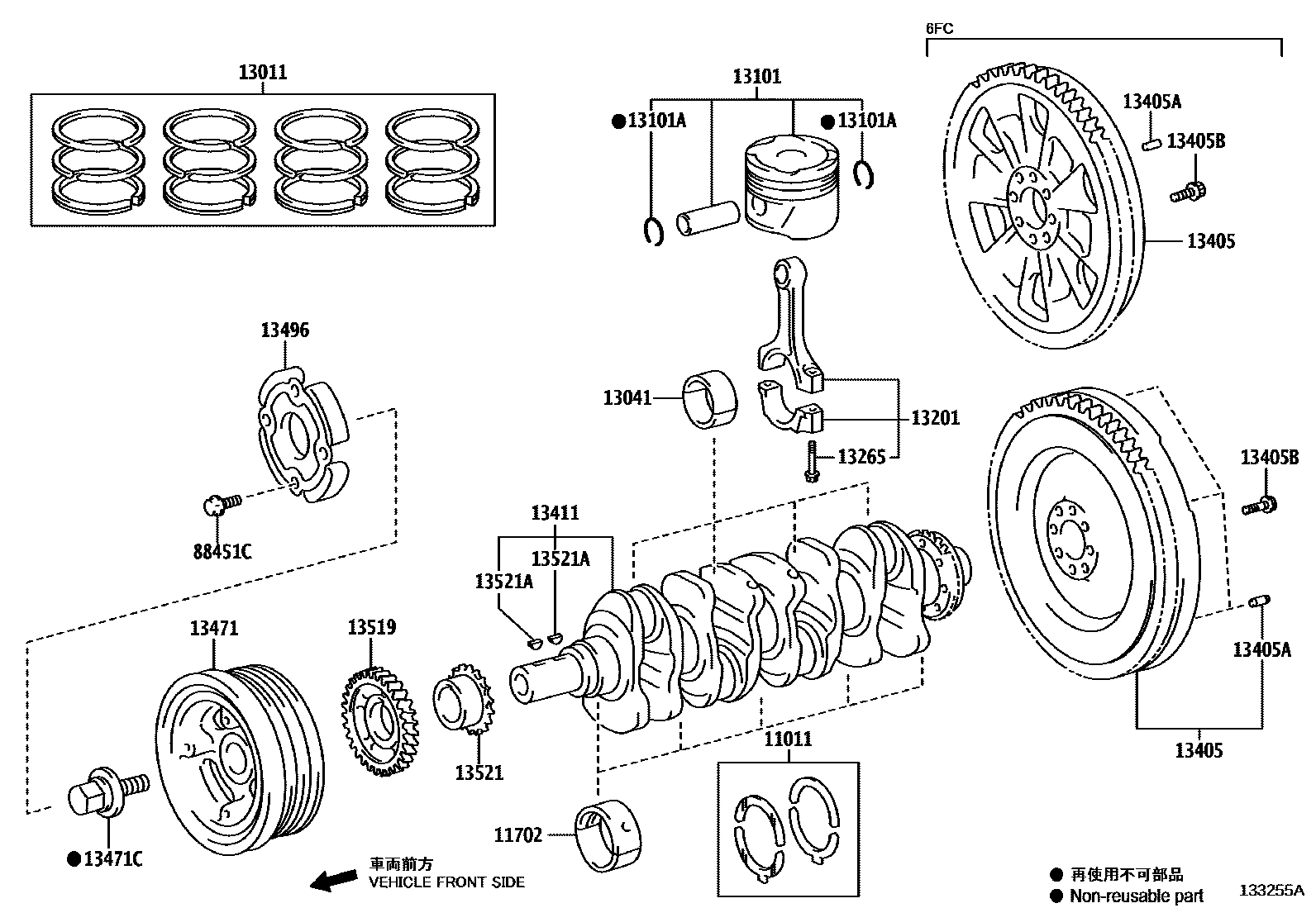

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
11702BEARING SET, CRANKSHAFT
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
13011RING SET, PISTON
13041BEARING, CONNECTING ROD
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
13101PISTON SUB-ASSY, W/PIN
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13496COVER, CRANKSHAFT PULLY
13519GEAR, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
88451CBOLT, FLANGE W/WASHER
19 parts on this diagram · 2 diagrams in section
